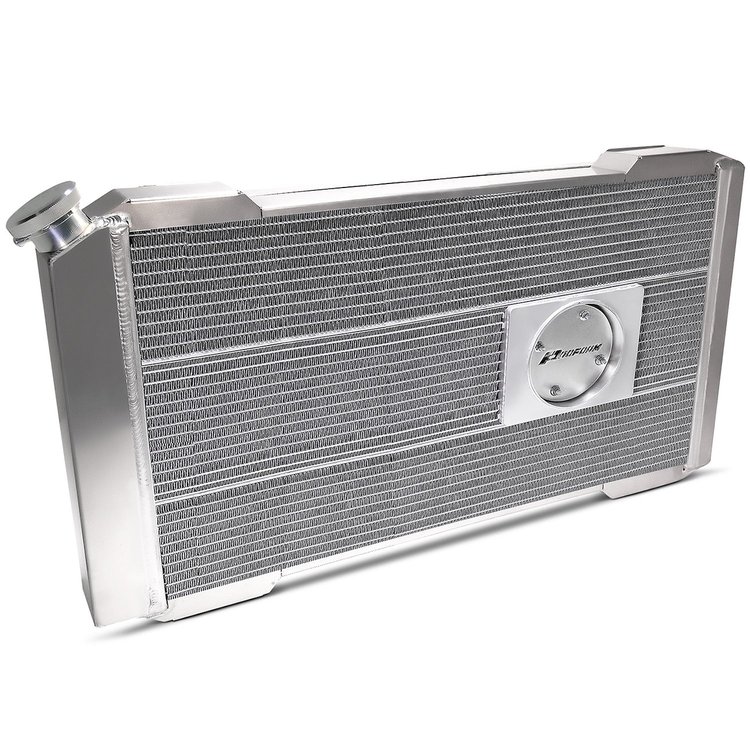

Slim-Fit Radiator System
InfoVehicle Info Needed
PROFORMPART NUMBER: 778-69625.1

Slim-Fit Radiator System

$61425$819.99You Save$205.74
ShippingShips on 11/10/2026
Lowest PriceLowest Price Guarantee

Items You Need

16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Overflow Tank 3" x 8" 20 oz.

JEGS

Overflow Tank 3" x 8" 20 oz.

Part Number : 555-51141
$6499$71.99
You Save$7.00
Water Wetter Supercoolant 12oz Bottle

RED LINE OIL

Water Wetter Supercoolant 12oz Bottle

Part Number : 816-80204
$1599
No Spill Coolant Filling Funnel Kit [15-Piece]

JEGS

No Spill Coolant Filling Funnel Kit [15-Piece]

Part Number : 555-51220
$1999$23.29
You Save$3.30

GM
Slim-Fit Radiator System
  • 1968-1977 Chevy Chevelle, El Camino
  • 1970-1971 Chevy Monte Carlo
  • 1971-1979 Chevy Impala
  • 1968-1972 Pontiac GTO
  • Manual Transmission
  • 500 HP
  • 16.800 in. H x 31.200 in. W x 4 in. T
  • Natural Aluminum Finish

    Slim-Fit Radiator System Features:

    • Radiator with integrated shroud and fan system less than 4 in. thick
    • Hybrid core made of traditional duel 1 in. tubes and extruded tubes
    • Adjustable thermostat
    • 100% Fabricated aluminum end tanks
    • Billet aluminum filler neck
    • High-capacity overflow tube
    • Pre-assembled

      • Radiator Systems With Integrated Fan and Shroud

      Proform Slim-Fit Radiator Systems is an all-in-one fabricated aluminum radiator module that is considerably thinner than the industry standard. With a patented, innovative design, these slim-fit systems conserve critical space by integrating the fan motor directly into the radiator core.
    Part TypeRadiator
    Product LineProform Slim-Fit Radiator Systems
    BrandPROFORM
    Part CategoryPerformance Parts
    Overall Thickness4 in (101.6 mm)
    Overall Height16.8 in (426.7 mm)
    Outlet Size1.75 in (44.5 mm)
    Fan Quantity1
    Radiator Cap IncludedYes
    Number Of Blades8
    Shroud MaterialAluminum
    QuantitySold individually
    Inlet LocationDriver side
    MaterialAluminum
    Inlet Size (In.)1.5
    Core Height15.3 in (388.62 mm)
    Core Thickness2.4 in (60.96 mm)
    Fan Diameter13.25 in (336.55 mm)
    Core Width26 in (660.4 mm)
    Outlet LocationPassenger side
    Overall Width31.2 in (792.5 mm)
    Radiator FinishNatural
    Fan IncludedYes
    Transmission CoolerNo
    Part FitmentDirect Fit
    Maximum Fan Cfm1650
    Shroud ColorNatural
    Radiator StyleCrossflow
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
    Some parts are not legal for use in California or other states with similar laws / regulations
