Vehicle Info NeededPROFORMPART NUMBER: 778-69625.2

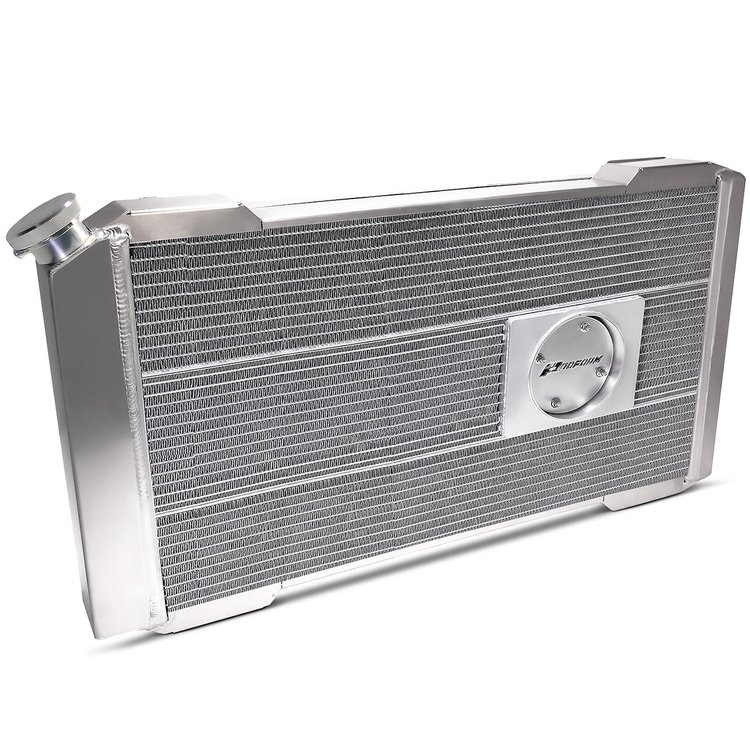

Slim-Fit Radiator System
$61425$819.00You Save$204.75
Ships on 09/04/2026
Lowest Price GuaranteeGM
Slim-Fit Radiator System1968-1977 Chevy Chevelle, El Camino 1970-1971 Monte Carlo 1971-1979 Impala 1968-1972 Pontiac GTO Automatic Transmission 500 HP Max 16.800 in. H x 31.200 in. W x 4 in. T Natural Aluminum Finish
Slim-Fit Radiator System Features:
- Radiator with integrated shroud and fan system less than 4 in. thick
- Hybrid core made of traditional duel 1 in. tubes and extruded tubes
- Adjustable thermostat
- 100% Fabricated aluminum end tanks
- Billet aluminum filler neck
- High-capacity overflow tube
- Pre-assembled
Part TypeRadiator
BrandPROFORM
Package Height8.0
Package Width20.75
Package Length35.25
Weight29.335 PG
Part CategoryPerformance Parts
Overall Thickness4 in (101.6 mm)
Overall Height16.8 in (426.7 mm)
Outlet Size1.75 in (44.5 mm)
Fan Quantity1
Radiator Cap IncludedYes
Number Of Blades8
Shroud MaterialAluminum
QuantitySold individually
Inlet LocationDriver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height15.3 in (388.62 mm)
Core Thickness2.4 in (60.96 mm)
Fan Diameter13.25 in (336.55 mm)
Core Width26 in (660.4 mm)
Outlet LocationPassenger side
Overall Width31.2 in (792.5 mm)
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerYes
Part FitmentDirect Fit
Maximum Fan Cfm1650
Shroud ColorNatural
Radiator StyleCrossflow
Package Qty1
Package TypeEA
