Vehicle Info NeededPROFORMPART NUMBER: 778-69650.2

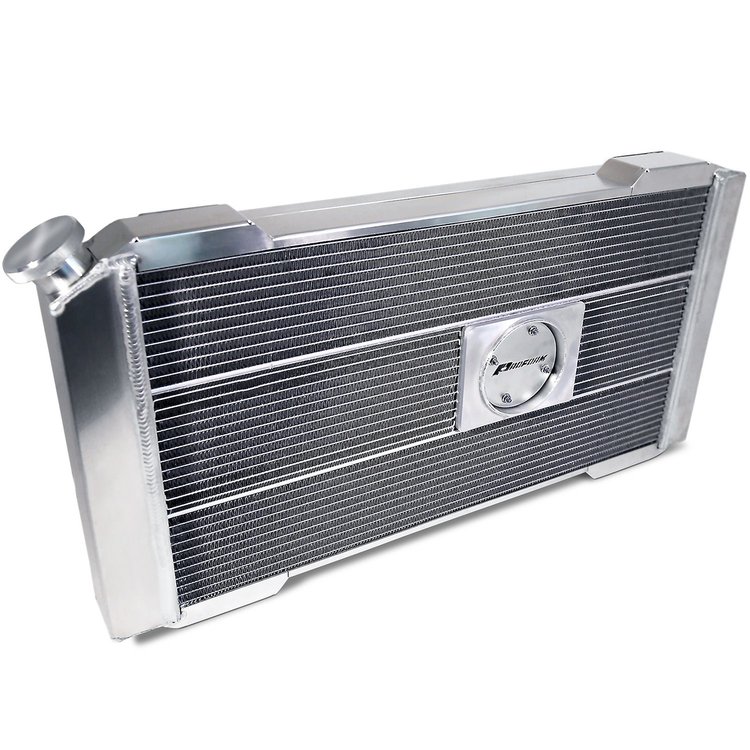

Slim-Fit Radiator System
$79999
2 left in stock
Ships Today
Lowest Price GuaranteeGM
Slim-Fit Radiator System1995-2002 Chevrolet Blazer, S-10, GMC Jimmy, Sonoma With Small or Big Block Chevy Engine Swap Automatic Transmission Applications 500 HP Max 16.800 in. H x 32.100 in. W x 4 in. T Natural Aluminum Finish
Slim-Fit Radiator System Features:

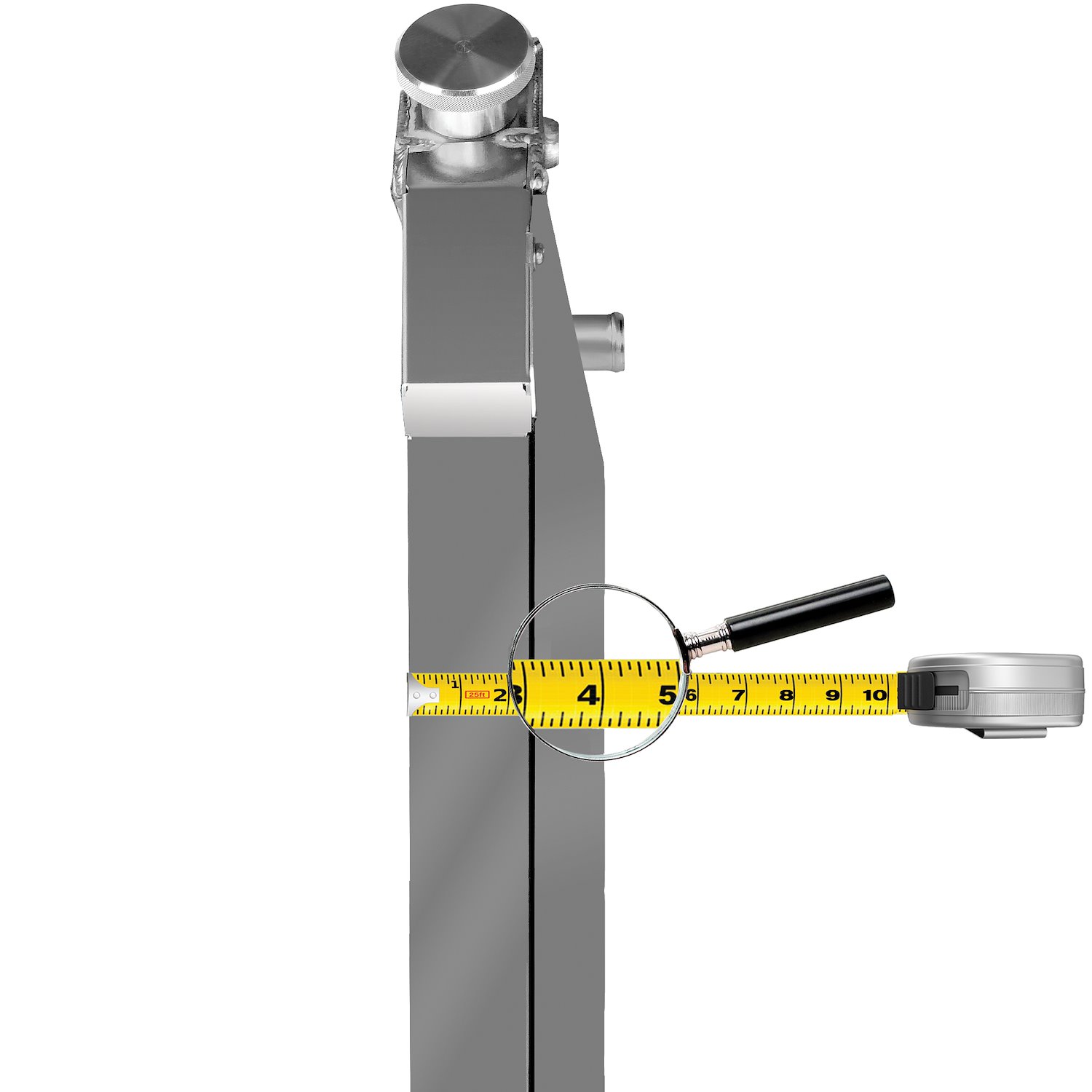

- Radiator with integrated shroud and fan system less than 4 in. thick
- Hybrid core made of traditional duel 1 in. tubes and extruded tubes
- Adjustable thermostat
- 100% Fabricated aluminum end tanks
- Billet aluminum filler neck
- High-capacity overflow tube
- Pre-assembled
Part TypeRadiator
BrandPROFORM
Package Height8.0
Package Width19.5
Package Length35.0
Weight30.5 PG
Part CategoryPerformance Parts
Overall Thickness4 in (101.6 mm)
Overall Height16.8 in (426.7 mm)
Outlet Size1.75 in (44.5 mm)
Fan Quantity1
Radiator Cap IncludedYes
Number Of Blades8
Shroud MaterialAluminum
QuantitySold individually
Inlet LocationDriver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height15.3 in (388.62 mm)
Core Thickness2.4 in (60.96 mm)
Fan Diameter13.25 in (336.55 mm)
Core Width27 in (685.8 mm)
Outlet LocationPassenger side
Overall Width32.1 in (815.3 mm)
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerYes
Part FitmentDirect Fit
Maximum Fan Cfm1650
Shroud ColorNatural
Radiator StyleCrossflow
Package Qty1
Package TypeEA
