Vehicle Info NeededPROFORMPART NUMBER: 778-69680.1

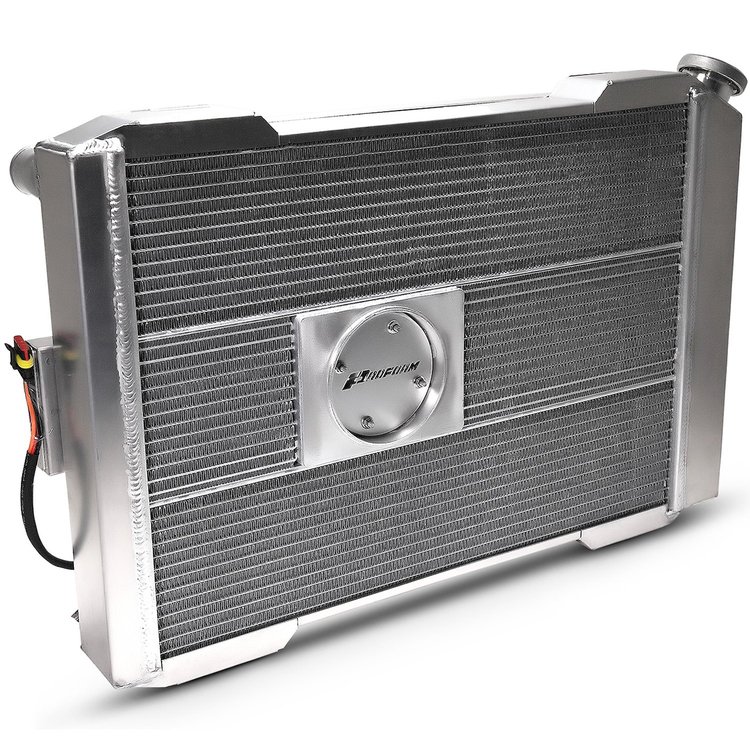

69680.1 Slim-Fit Radiator System for Select Ford Mustang, Thunderbird & Mercury Cougar w/Automatic Transmission
$61599$799.99You Save$184.00
Ships Tomorrow
Lowest Price GuaranteeFord
Slim-Fit Radiator System1979-1993 Ford Mustang, Mercury Cougar 1980-1988 Ford Thunderbird Manual Transmission Applications 600 HP Max 18.100 in. H x 29.100 in. W x 4 in. T Natural Aluminum Finish
Slim-Fit Radiator System Features:
- Radiator with integrated shroud and fan system less than 4 in. thick
- Hybrid core made of traditional dual 1 in. tubes and extruded tubes
- Adjustable thermostat
- 100% Fabricated aluminum end tanks
- Billet aluminum filler neck
- High-capacity overflow tube
- Pre-assembled
Part TypeRadiator
BrandPROFORM
Part CategoryPerformance Parts
Overall Thickness4 in (101.6 mm)
Overall Height18.1 in (459.7 mm)
Outlet Size1.5 in (38.1 mm)
Fan Quantity1
Radiator Cap IncludedYes
Number Of Blades8
Shroud MaterialAluminum
QuantitySold individually
Inlet LocationPassenger Side
MaterialAluminum
Inlet Size (In.)1.25
Core Height16.6 in (421.64 mm)
Core Thickness2.4 in (60.96 mm)
Fan Diameter15 in (381 mm)
Core Width24 in (609.6 mm)
Outlet LocationDriver side
Overall Width29.1 in (739.1 mm)
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerNo
Part FitmentDirect Fit
Maximum Fan Cfm2100
Shroud ColorNatural
Radiator StyleCrossflow
Package Qty1
Package TypeEA
