Vehicle Info NeededPROFORMPART NUMBER: 778-69695.1

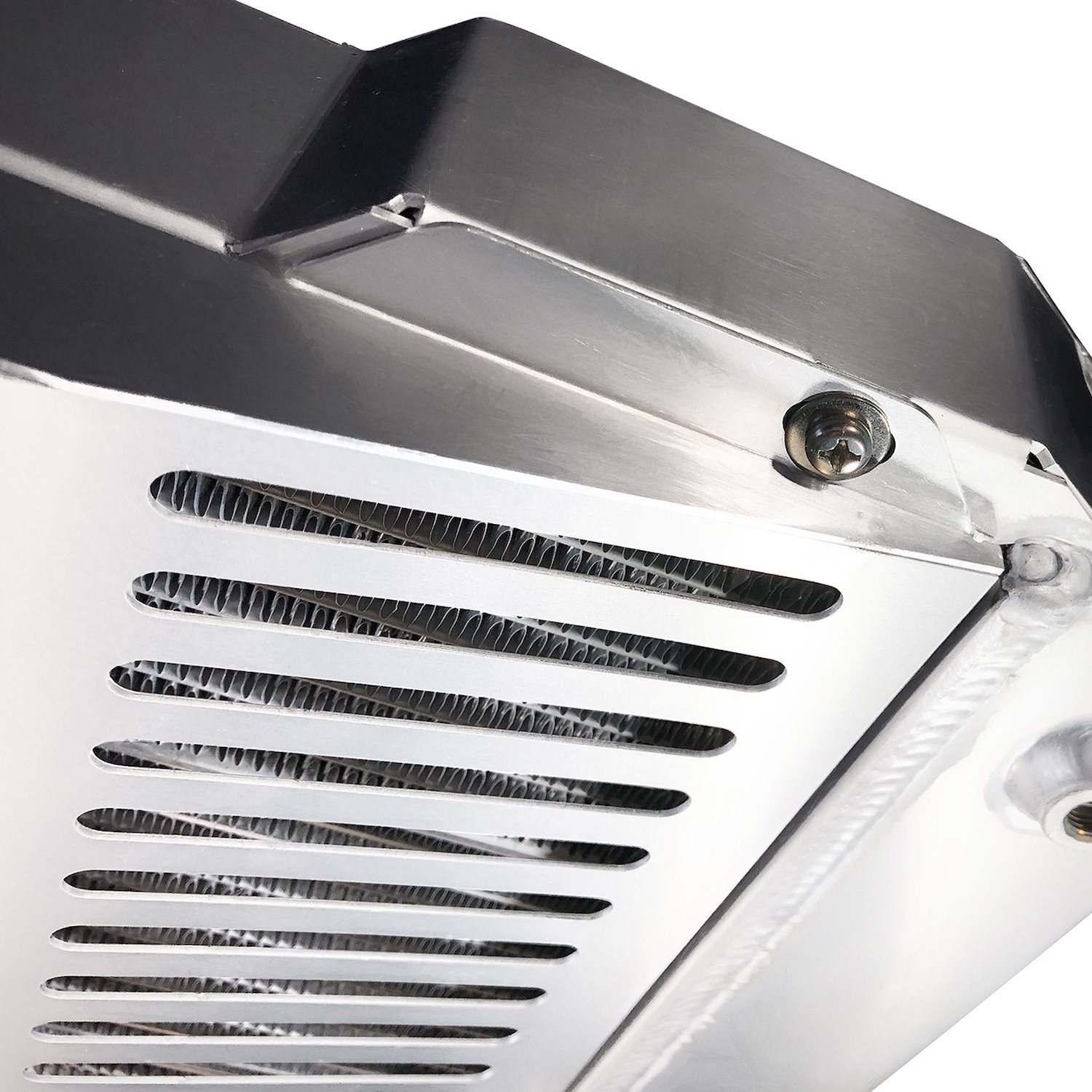

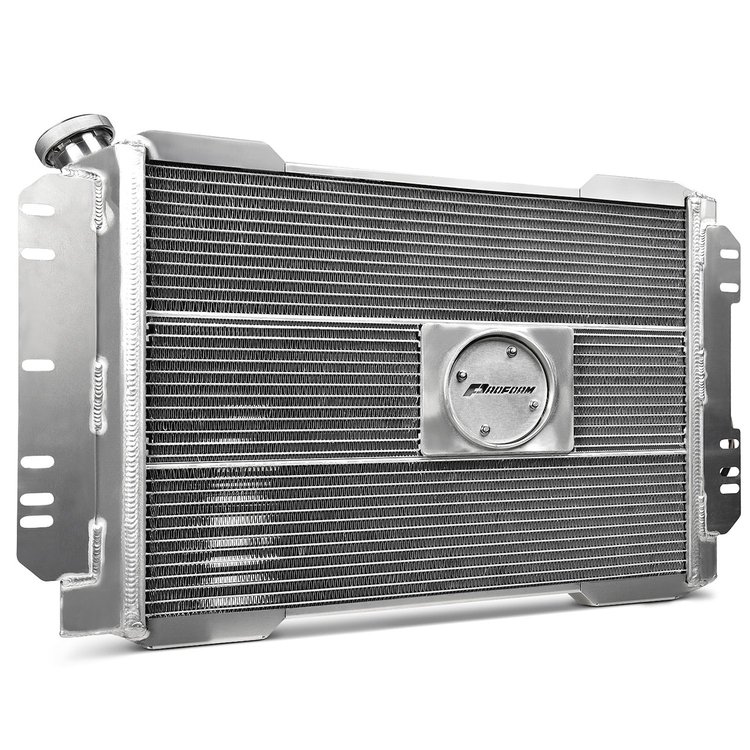

Slim-Fit Radiator System
$79999
Ships on 09/04/2026
Lowest Price GuaranteeMopar
Slim-Fit Radiator System1960-1988 Mopar A/B-Body 1970-1974 Mopar E-Body 1959-60 El Camino 1966-67 Chevelle/El Camino/Malibu Manual Transmission Applications 600 HP Max 18.500 in. H x 26.500 in. W x 4 in. T Natural Aluminum Finish
Slim-Fit Radiator System Features:
- Radiator with integrated shroud and fan system less than 4 in. thick
- Hybrid core made of traditional duel 1 in. tubes and extruded tubes
- Adjustable thermostat
- 100% Fabricated aluminum end tanks
- Billet aluminum filler neck
- High-capacity overflow tube
- Pre-assembled
Part TypeRadiator
BrandPROFORM
Package Height7.5
Package Width22.0
Package Length32.0
Weight28.4 PG
Part CategoryPerformance Parts
Overall Thickness4 in (101.6 mm)
Overall Height18.5 in (469.9 mm)
Outlet Size1.75 in (44.5 mm)
Fan Quantity1
Radiator Cap IncludedYes
Number Of Blades8
Shroud MaterialAluminum
QuantitySold individually
Inlet LocationDriver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height17 in (431.8 mm)
Core Thickness2.4 in (60.96 mm)
Fan Diameter15 in (381 mm)
Core Width22 in (558.8 mm)
Outlet LocationPassenger side
Overall Width26.5 in (673.1 mm)
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerNo
Part FitmentDirect Fit
Maximum Fan Cfm2100
Shroud ColorNatural
Radiator StyleCrossflow
Package Qty1
Package TypeEA
