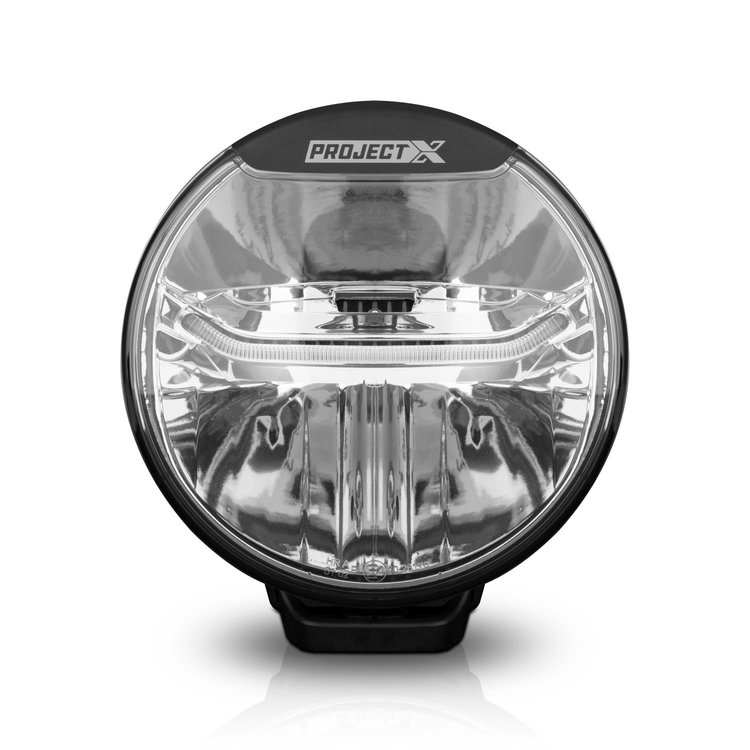

Series One FF.70 Free-Form Led Auxiliary Light - Spot Beam, 7 in. Diameter, Round, Spot Beam
InfoVehicle Info Needed
PROJECT X OFFROADPART NUMBER: 786-AL538801-1

Series One FF.70 Free-Form Led Auxiliary Light - Spot Beam, 7 in. Diameter, Round, Spot Beam

$26999
ShippingShips on Nov 24, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
Series One HP.70 Auxiliary LED Light Lens Protector [Blackout]

PROJECT X OFFROAD

Series One HP.70 Auxiliary LED Light Lens Protector [Blackout]

Part Number : 786-AC538810-1
$3149
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2974
$1599$22.09
You Save$6.10
Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00

7 in. Diameter
Series One FF.70 Free-Form Led Auxiliary Light - Spot Beam
  • 7 in. Diameter
  • Round
  • Spot Beam

    Project X AL538801-1 Features:

    Protected from the Elements - Fully sealed against water and dust intrusion (IP66 & IP67) utilizing a genuine Gore-Tex breather vent and integrated Deutsch connectors

    • Protected from the Elements - Fully sealed against water and dust intrusion (IP67) utilizing integrated Deutsch connector for a secure power connection
    • Integrated Heat Management - Built-in Active Thermal Management System (ATMS) enables the FF.70 to run harder for longer
    • HID Performance in LED Package - 3,800 raw lumens (1,663 effective) per light
    • Superior Optics - Enhanced free form optics capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most
    • LED Front Position Light Pipe - Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety
    • Customizable Appearance - Customize the look of your Series One FF.70s with your choice of 2 glare shield caps in Black or Project X Green
    • Unique Fit & Adjustment - Proven heavy-duty multi-position bracket offering multiple mounting positions to guarantee the perfect fit
    • Engineered to Survive - Super strong impact resistant housing constructed from tough Fiber Reinforced Polymer
    • Powered by Cree - The very latest in Cree XHP50.2 LED chip sets produce an extremely efficient yet powerful white light output (5000K)
    • Durable Lens Design - Virtually unbreakable hard coated and UV resistant polycarbonate lens and lens protectors for rock and debris protection
    • Beam Length (1 lamp): 1 lux @ 1443 Feet
    • Beam Length (2 lamps): 1 lux @ 2034 Feet
    • Beam Width (1 lamp): 1 lux @ 147 Feet
    • Beam Width (2 lamps): 1 lux @ 206 Feet
    • Bezel Color: PROJECT X Green and Black
    • Bulb Color: White
    • Bulb Quantity: 2
    • Bulb Technology: LED
    • Bulb Type: 15W XHP50.2, Cree LEDs
    • Color Rendering Index: 70
    • Connector Gender: Male
    • Connector Quantity: 1
    • Effective Lumens: 1663
    • EMC: ECE R10
    • Hardware Included: Yes
    • Hardware Material: Stainless Steel
    • Heat Management: Active Thermal Management System
    • Height.UOM: IN
    • Height: 7.7
    • Housing Color: Black
    • Housing Finish: Matte
    • Housing Material: Fiber Reinforced Polymer
    • Input Voltage Range.UOM: V
    • Input Voltage Range: 9 - 33V DC
    • IP Rating: IP67
    • Lamp Current Draw @ 12V: 3.32 Amps
    • Length.UOM: IN
    • Length: 7
    • Lens Color: Clear
    • Lens Diameter.UOM: IN
    • Lens Diameter: 7
    • Lens Material: Hard coated Polycarbonate
    • Light Beam Pattern: Spot
    • Light Color Temperature.UOM: K
    • Light Color Temperature: 5000
    • Light Output in Watts: 30 Watts
    • Mounting Hole Quantity: 1
    • Operating Temp: -40-degrees F to 149-degrees F
    • Positional Light Current Draw @ 12V: 0.13 Amps
    • Protection: Reverse Polarity Protection
    • Push or Twist Type: Push
    • Raw Lumens: 3800
    • Shape: Round
    • Street Legal: Offroad Use Only
    • Terminal Gender: Female
    • Terminal Quantity: 1
    • Terminal Type: Deutsch DT 3-pin
    • Total Current Draw @ 12V: 3.47 Amps
    • Universal Or Specific Fit: Universal
    • Wattage Draw @ 12V DC: Driving Light - 39 Watts, Position - 1.8 Watts
    • Wattage.UOM: W
    • Weight.UOM: LBS
    • Weight: 2.42
    • Width.UOM: IN
    • Width: 4.1
    • Wire Quantity: 3
    • Wiring Harness Included: Y
    • Enhance Your Driving with Free-Form LED Auxillary Lights

      Project X Series-One Free-Form LED Auxilary Lights provide powerful illumination for on and off-road driving. They feature optic drive technology that produces a greater penetrating light and focuses it more down the road where it is needed most. They deliver 3,800 raw lumens with 5000K color output, are IP67 rated, and are available in a flood or spot beam. Choose from a 7 or 9-inch diameter with included stainless hardware.

    Part TypeAuxiliary Light
    Product LineProject X Series-One Free-Form LED Auxiliary Driving Lights
    BrandPROJECT X OFFROAD
    Package Height6.0
    Package Width8.0
    Package Length10.0
    Weight3.81 PG
    Part CategoryAccessories
    Bulb TypeLED
    Housing MaterialFiber Reinforced Polymer
    Led ColorWhite
    Housing ShapeRound
    QuantitySold individually
    Beam StyleSpot
    Lumens3,800
    Lens MaterialPolycarbonate
    Light CoverNo
    Housing ColorBlack
    Part FitmentUniversal
    Watts30.0 watts
    Vendor Part NumberAL538801-1
    Package Qty1
    Package TypeEA
