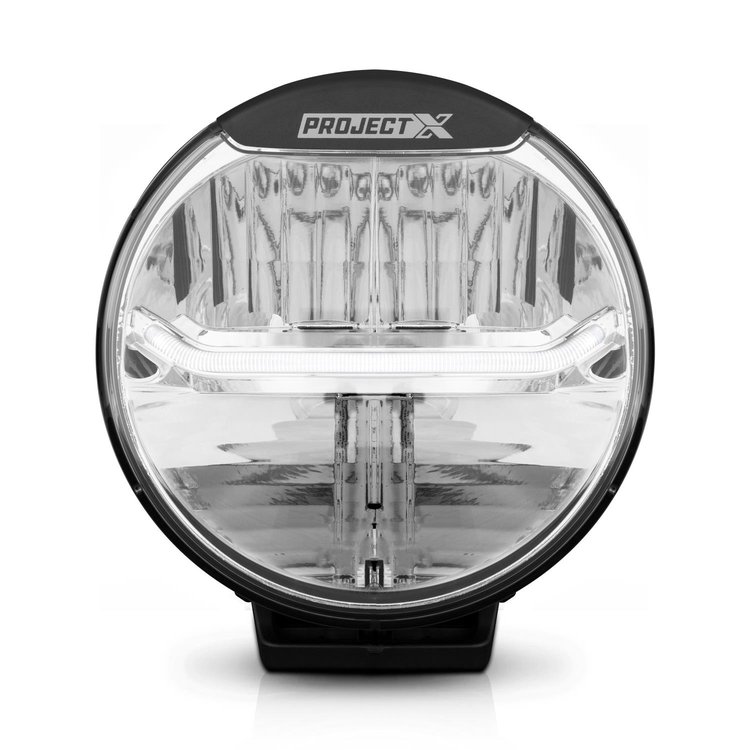

Project X AL538803-1 Features:

Connect with the Wild with the Project X - Series One Free Form LED auxiliary lights. The Series One utilizes enhanced free form optics to capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most. Available in both Spot and Flood beams.

• Protected from the Elements - Fully sealed against water and dust intrusion (IP67) utilizing integrated Deutsch connector for a secure power connection
• Integrated Heat Management - Built-in Active Thermal Management System (ATMS) enables the FF.90 to run harder for longer
• HID Performance in LED Package - 5,700 raw lumens (2,500 effective) per light
• Superior Optics - Enhanced free form optics capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most
• LED Front Position Light Pipe - Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety
• Customizable Appearance - Customize the look of your Series One FF.90s with your choice of 2 glare shield caps in Black or Project X Green
• Unique Fit & Adjustment - Proven heavy-duty multi-position bracket offering multiple mounting positions to guarantee the perfect fit
• Engineered to Survive - Super strong impact resistant housing constructed from tough Fiber Reinforced Polymer
• Powered by Cree - The very latest in Cree XHP50.2 LED chip sets produce an extremely efficient yet powerful white light output (5000K)
• Durable Lens Design - Virtually unbreakable hard coated and UV resistant polycarbonate lens and lens protectors for rock and debris protection
• Total Current Draw @ 12V: 5 Amps
• Universal Or Specific Fit: Universal
• Wattage Draw @ 12V DC: Driving Light - 62 Watts, Position - 1.8 Watts
• Wattage.UOM: W
• Weight.UOM: LBS
• Weight: 4.85
• Width.UOM: IN
• Width: 5.3
• Wire Quantity: 3
• Wiring Harness Included: Y
• Beam Length (1 lamp): 1 lux @ 1574 Feet
• Beam Length (2 lamps): 1 lux @ 2230 Feet
• Beam Width (1 lamp): 1 lux @ 78 Feet
• Beam Width (2 lamps): 1 lux @ 206 Feet
• Bezel Color: PROJECT X Green and Black
• Bulb Color: White
• Bulb Quantity: 3
• Bulb Technology: LED
• Bulb Type: 15W XHP50.2, Cree LEDs
• Color Rendering Index: 70
• Connector Gender: Male
• Connector Quantity: 1
• Effective Lumens: 2500
• EMC: ECE R10
• Hardware Included: Yes
• Hardware Material: Stainless Steel
• Heat Management: Active Thermal Management System
• Height.UOM: IN
• Height: 9.8
• Housing Color: Black
• Housing Finish: Matte
• Housing Material: Fiber Reinforced Polymer
• Input Voltage Range.UOM: V
• Input Voltage Range: 9 - 33V DC
• IP Rating: IP67
• Lamp Current Draw @ 12V: 4.9 Amps
• Length.UOM: IN
• Length: 9
• Lens Color: Clear
• Lens Diameter.UOM: IN
• Lens Diameter: 9
• Lens Material: Hard coated Polycarbonate
• Light Beam Pattern: Flood
• Light Color Temperature.UOM: K
• Light Color Temperature: 5000
• Light Output in Watts: 45 Watts
• Mounting Hole Quantity: 1
• Operating Temp: -40-degrees F to 149-degrees F
• Positional Light Current Draw @ 12V: 0.13 Amps
• Protection: Reverse Polarity Protection
• Push or Twist Type: Push
• Raw Lumens: 5700
• Shape: Round
• Street Legal: Offroad Use Only
• Terminal Gender: Female
• Terminal Quantity: 1
• Terminal Type: Deutsch DT 3-pin
