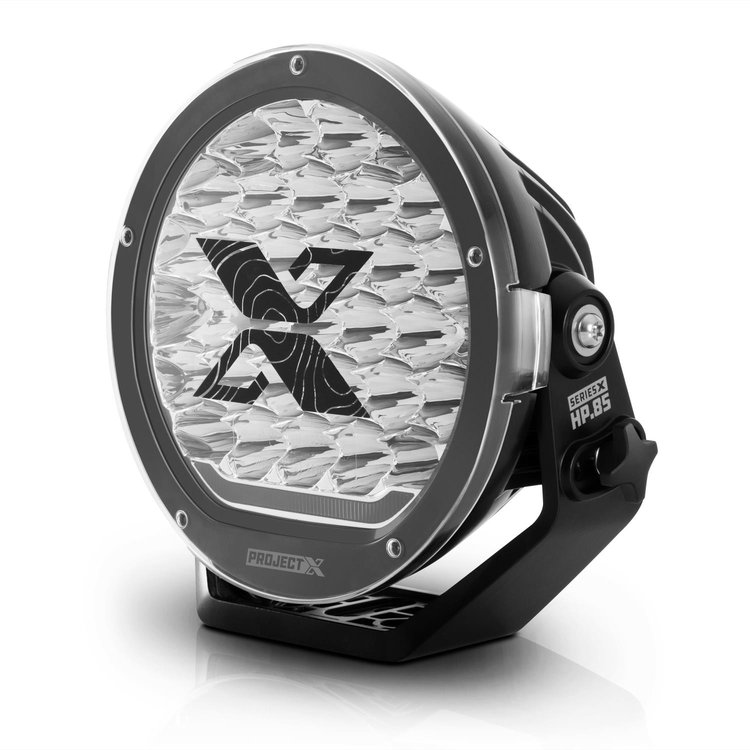

Project X AL538805-1 Features:

Connect with the Wild with the Project X - Series X High Power LED auxiliary lights. The Series X LED lights feature best in class performance and is engineered using Osram LED technology to cut through the darkness and light the trail ahead with a powerful combo beam. Featuring an integrated Active Thermal Management System (ATMS), the HP.85 delivers 165 watts of pure white light (5700K) in a broad penetrating beam of light.

• Unparalleled Performance - 5-Watt High Power Osram-LEDs producing 165W of pure white light (5700K)
• Integrated Heat Management - Built-in Active Thermal Management System (ATMS) enables the HP.85 to run harder for longer
• Best in Class Power - 21,780 raw lumens (15,410 effective) per light
• Superior Optics - Highly Polished super-efficient aluminum metalized reflector utilizing precisely scalloped parabolas for ultimate control and performance
• LED Front Position Light - Signature built-in LED light meets ECE requirements for front position light improving daytime driving visibility and safety
• Protected from the Elements - Fully sealed against water and dust intrusion (IP66 & IP67) utilizing a genuine Gore-Tex breather vent and integrated Deutsch connectors
• Unique Fit & Adjustment - Tool free vertical adjustment allows on-the-fly beam correction via ergonomic adjuster knob. The mounting system utilizes polyurethane bushings to suspend the light making it impervious to shock and vibration.
• Engineered to Survive - Constructed from light weight super strong Pressure Die Cast Aluminum, uncompromised strength and rugged durability
• Customizable Appearance - Customise the look of your Series X HP.85s with your choice of 3 inner trim pieces, including Brocky Blue, Dragon Red and Project X Green.
• Durable Lens Design - Virtually unbreakable hard coated and UV resistant polycarbonate lens and lens protectors for rock and debris protection
• Beam Length (1 lamp): 1 lux @ 2536 Feet
• Beam Length (2 lamps): 1 lux @ 3585 Feet
• Beam Width (1 lamp): 1 lux @ 67 Feet
• Beam Width (2 lamps): 1 lux @ 285 Feet
• Bezel Color: Brocky Blue, Dragon Red, and PROJECT X Green
• Bulb Color: White
• Bulb Quantity: 33
• Bulb Technology: LED
• Bulb Type: Osram LEDs
• Color Rendering Index: 72
• Connector Gender: Male
• Connector Quantity: 1
• Effective Lumens: 15410
• EMC: ECE R10
• Hardware Included: Yes
• Hardware Material: Stainless Steel
• Heat Management: Active Thermal Management System
• Height.UOM: IN
• Height: 9.3
• Housing Color: Black
• Housing Finish: Powder Coat
• Housing Material: Pressure die-cast aluminum
• Input Voltage Range.UOM: V
• Input Voltage Range: 9 - 33V DC
• IP Rating: IP66 & IP67
• Lamp Current Draw @ 12V: 12.5 Amps
• Length.UOM: IN
• Length: 8.5
• Lens Color: Clear
• Lens Diameter.UOM: IN
• Lens Diameter: 8.5
• Lens Material: Hard coated Polycarbonate
• Light Beam Pattern: Combo
• Light Color Temperature.UOM: K
• Light Color Temperature: 5700
• Light Output in Watts: 165 Watts
• Mounting Hole Quantity: 3
• Operating Temp: -40-degrees F to 149-degrees F
• Positional Light Current Draw @ 12V: 0.17 Amps
• Protection: Reverse Polarity Protection
• Push or Twist Type: Push
• Raw Lumens: 21780
• Shape: Round
• Street Legal: Offroad Use Only
• Terminal Gender: Female
• Terminal Quantity: 1
• Terminal Type: Deutsch DT 3-pin
• Total Current Draw @ 12V: 14.5 Amps
• Universal Or Specific Fit: Universal
• Wattage Draw @ 12V DC: Driving Light - 173 Watts, Position - 1.6 Watts
• Wattage.UOM: W
• Weight.UOM: LBS
• Weight: 7.05
• Width.UOM: IN
• Width: 4.4
• Wire Quantity: 3
• Wiring Harness Included: Y
