Project X GB538823-1 Features:

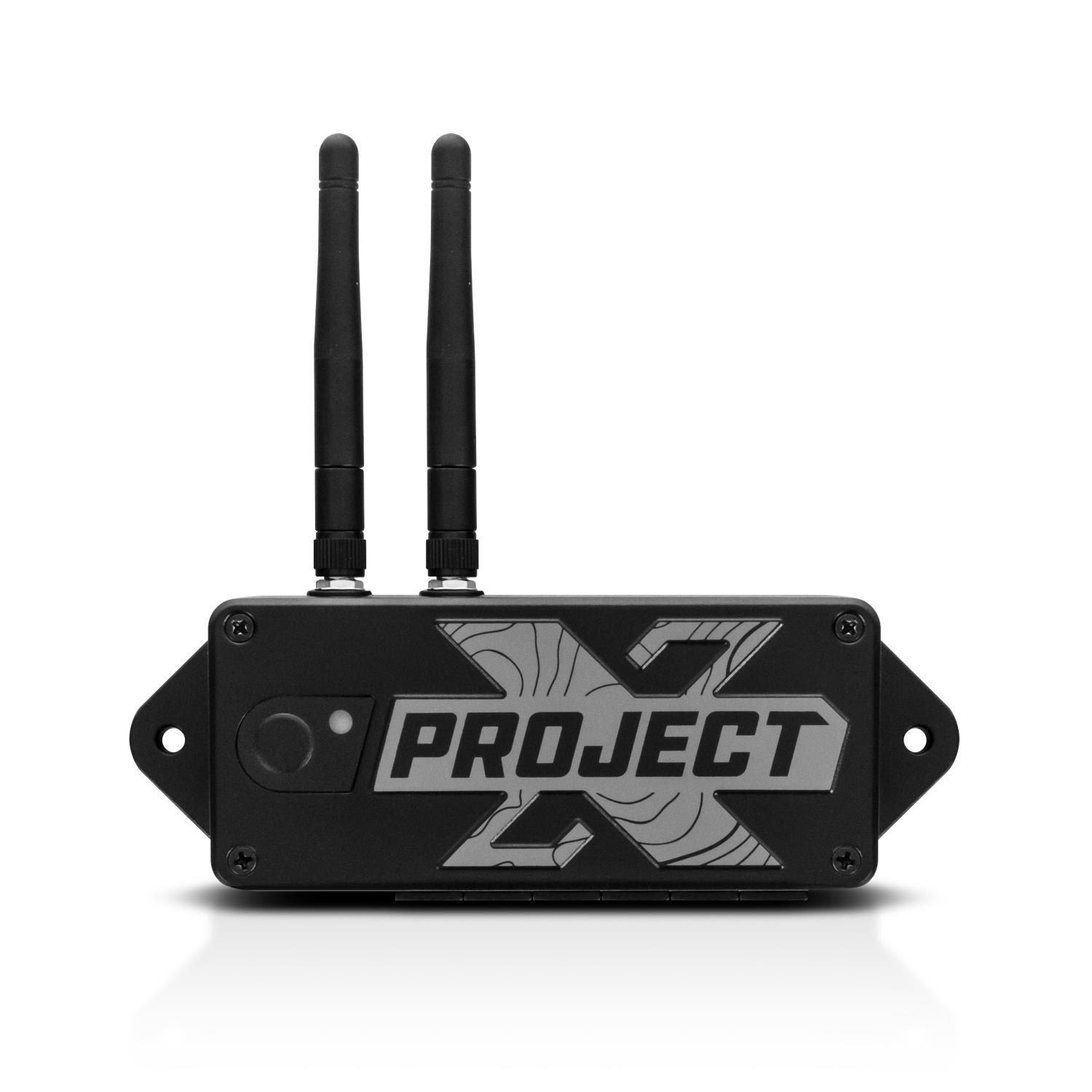

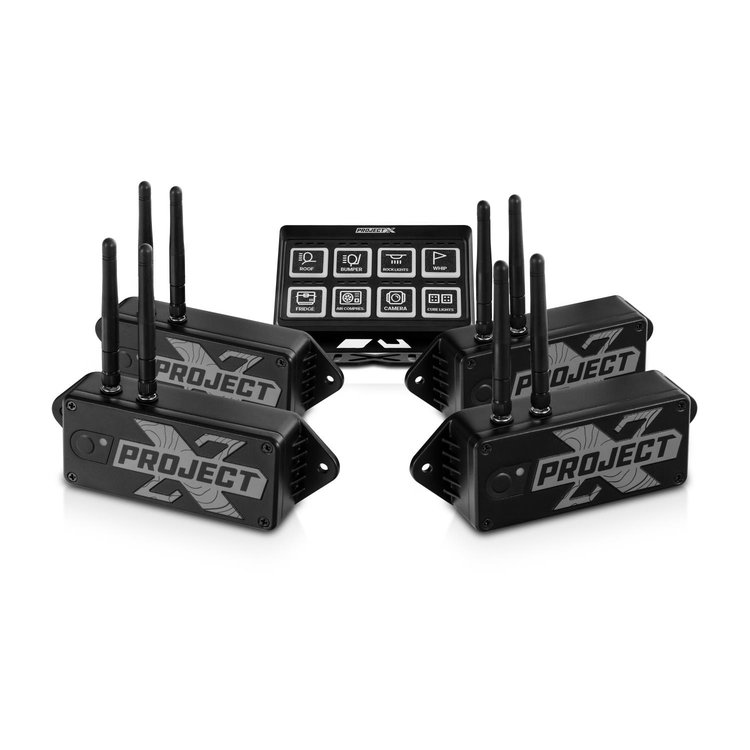

Accessory control redefined - The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience. The fully expandable system includes 4 two-circuit control modules that wirelessly communicate to a control keypad which you can program via the PROJECT X app. Control a single module for an easy accessory install, or create a large ecosystem across your vehicles, trailers and equipment. Create presets you can incorporate across all of your accessories and set up timers, scenes, and much more. With the PROJECT X Ghost Box we make it easy to Connect with the Wild.

• Fully Customizable Ecosystem - The PROJECT X Ghost Box allows you to create a fully customizable ecosystem using our PROJECT X app. Create lighting scenes, preset colors, control groups, timers and more.
• Make Any Accessory Smart - Add your Ghost Box control module to any accessory power harness to wirelessly integrate it into the PROJECT X ecosystem
• Wireless Control - Wirelessly connect all your Ghost Box control modules to your control pad via 2.4GHz RF Wireless without having to route wires into your cab - simply tap the control pad to power and go!
• Plug and Play for your Jeep JK - Built with your 2007-2014 Jeep Wrangler in mind, this 7" system includes integrated Anti-Flicker CANBUS modules and all of the wiring for an easy install.
• Dual Circuit - Each module features a 2-circuit setup with a 20 amp and 40 amp circuit to give you multiple options for accessory control.
• Easy to Pair - Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem.
• Expand your control - Add up to 24 control modules across your vehicle, trailers and other equipment to link your system together as needed.
• Amperage Rating (per Module).UOM: A
• Amperage Rating (per Module): Circuit 1: 20 Amps, Circuit 2: 40 Amps
• Circuit Terminal Gender: Female
• Circuit Terminal Quantity (Per Module): 6: Input Positive, Input Negative, Output 1 Positive, Output 1 Negative, Output 2 Positive, Output 2 Negative,
• Circuit Terminal Type: Screw Terminal
• Connector Quantity (Keypad): 1
• Connector Type (Keypad): RJ45
• Control Method: App (IOS & Android) or Wireless Keypad
• Hardware Included: Yes
• Hardware Material: Stainless
• Height - Control Module with Antennas.UOM: IN
• Height - Control Module with Antennas: 6.3
• Height - Control Module without Antennas.UOM: IN
• Height - Control Module without Antennas: 1.4
• Height - Keypad.UOM: IN
• Height - Keypad: 2.9
• Housing Color: Black
• Housing Material: Aluminum diecast
• Input Voltage Range.UOM: V
• Input Voltage Range: 9-16V DC
• Keypad Included: Yes
• Keypad Wiring Harness Included: Y
• Length - Control Module.UOM: IN
• Length - Control Module: 6.7
• Length - Keypad.UOM: IN
• Length - Keypad: 2.9
• Maximum Current (Keypad): 0.075 Amps @ 12V DC
• Maximum Wattage (Keypad): 0.9 Watts @ 12V DC
• Maximum Wire Size: 8 AWG
• Mounting Hole Quantity: 2
• Number of Circuits (Per Module): 2
• Number of Circuits (Total): 8
• Operating Temperature: -22F to 149F
• Output Maximum Current (Control Module): Circuit 1: 20 Amps @ 12V DC, Circuit 2: 40 Amps @ 12V DC
• Output Maximum Power (Control Module): 480 Watts @ 12V DC
• Storage Temperature: -40F to 185F
• Universal Or Specific Fit: Universal
• Waterproof Rating: IP64
• Weight - Keypad.UOM: LBS
• Weight - Keypad: 0.5
• Weight - Per Control Module.UOM: LBS
• Weight - Per Control Module: 0.5
• Width - Control Module.UOM: IN
• Width - Control Module: 3.4
• Width - Keypad.UOM: IN
• Width - Keypad: 0.7
• Wireless Frequency: 2.4GHz RF Wi-Fi & Bluetooth 5.0
• Wireless Range (Bluetooth): 33 Feet without interference or obstruction
• Wireless Range (RF Wi-Fi): 98.4 Feet without interference or obstruction
