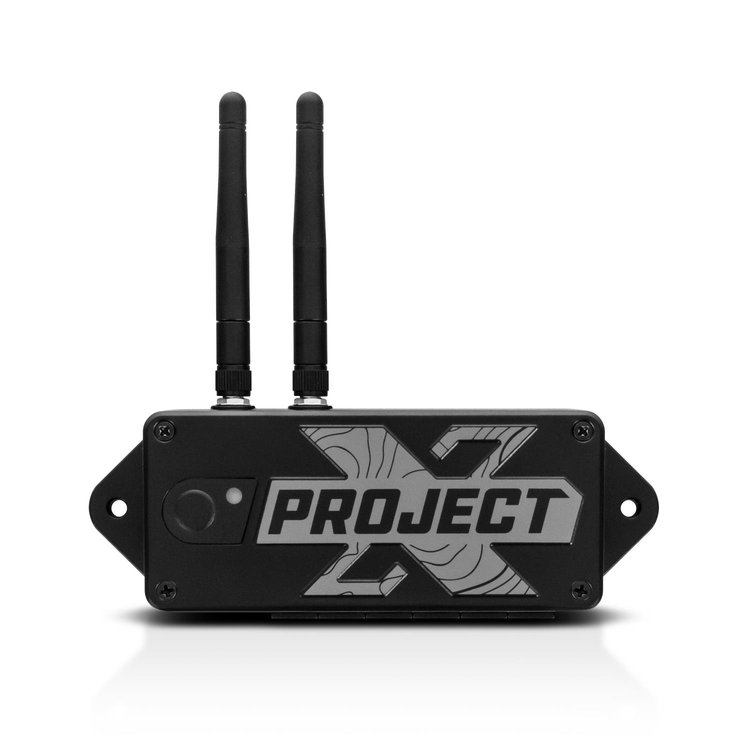

Project X GB538825-1 Features:

Accessory control redefined - The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience. The fully expandable system includes a two-circuit control module that wirelessly communicates to the PROJECT X app or to an optional control keypad which can be programmed via the PROJECT X app as well. Control a single module for an easy accessory install, or create a large ecosystem of Ghost Box connected accessories across all your vehicles, trailers and equipment. Create presets you can incorporate across all of your accessories and set up timers for maximum functionality. With the PROJECT X Ghost Box we make it easy to Connect with the Wild.

• Fully Customizable Ecosystem - The PROJECT X Ghost Box allows you to create a fully customizable ecosystem using our PROJECT X app. Create lighting scenes, preset colors, control groups, timers and more.
• Make Any Accessory Smart - Add your Ghost Box control module to any accessory power harness to wirelessly integrate it into the PROJECT X ecosystem
• Wireless Control - Wirelessly connect all your Ghost Box control modules to your control pad via 2.4GHz RF Wireless without having to route wires into your cab - simply tap the control pad to power and go!
• Wired Reliability, Wireless Freedom - Utilizing both Bluetooth and RF Wireless, the Ghost Box system gives you a reliable connection to your vehicle accessories ensuring your control is never severed.
• Dual Circuit - Each module features a 2-circuit setup with a 20 amp and 40 amp circuit to give you multiple options for accessory control.
• Easy to Pair - Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem.
• Expand your control - Add up to 24 control modules across your vehicle, trailers and other equipment to link your system together as needed.
• Amperage Rating (per Module).UOM: A
• Amperage Rating (per Module): Circuit 1: 20 Amps, Circuit 2: 40 Amps
• Circuit Terminal Gender: Female
• Circuit Terminal Quantity (Per Module): 6: Input Positive, Input Negative, Output 1 Positive, Output 1 Negative, Output 2 Positive, Output 2 Negative,
• Circuit Terminal Type: Screw Terminal
• Control Method: App (IOS & Android) or Wireless Keypad
• Hardware Included: Yes
• Hardware Material: Stainless
• Height - Control Module with Antennas.UOM: IN
• Height - Control Module with Antennas: 6.3
• Height - Control Module without Antennas.UOM: IN
• Height - Control Module without Antennas: 1.4
• Housing Color: Black
• Housing Material: Aluminum diecast
• Input Voltage Range.UOM: V
• Input Voltage Range: 9-16V DC
• Keypad Included: No
• Length - Control Module.UOM: IN
• Length - Control Module: 6.7
• Maximum Wire Size: 8 AWG
• Mounting Hole Quantity: 2
• Number of Circuits (Per Module): 2
• Operating Temperature: -22F to 149F
• Output Maximum Current (Control Module): Circuit 1: 20 Amps @ 12V DC, Circuit 2: 40 Amps @ 12V DC
• Output Maximum Power (Control Module): 480 Watts @ 12V DC
• Storage Temperature: -40F to 185F
• Universal Or Specific Fit: Universal
• Waterproof Rating: IP64
• Weight - Per Control Module.UOM: LBS
• Weight - Per Control Module: 0.5
• Width - Control Module.UOM: IN
• Width - Control Module: 3.4
• Wireless Frequency: 2.4GHz RF Wi-Fi & Bluetooth 5.0
• Wireless Range (Bluetooth): 33 Feet without interference or obstruction
• Wireless Range (RF Wi-Fi): 98.4 Feet without interference or obstruction
