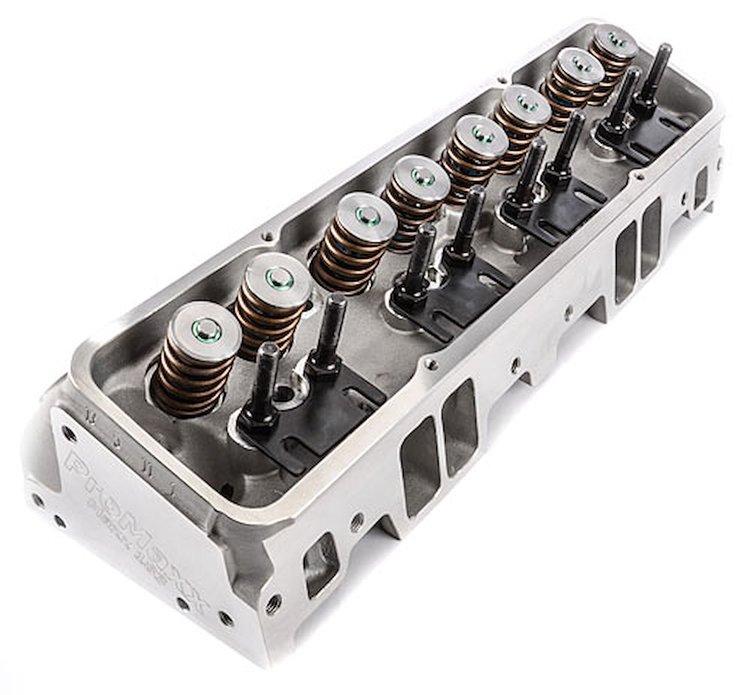

225 Series Aluminum Cylinder Heads Small Block Chevy
Product Discontinued
PROMAXX PERFORMANCEPART NUMBER: 723-2122

225 Series Aluminum Cylinder Heads Small Block Chevy

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

225 Series Intake Port Volume
  • 72cc Combustion Chambers
  • Angled Spark Plug Configuration
    • 225 Series Aluminum Cylinder Heads
    • Small Block Chevy
    • As-Cast
    • 225cc Intake Ports
    • 72cc Combustion Chamber
    • 2.08'' Intake / 1.60'' Exhaust Valves
    • 3/8'' Rocker Arm Studs
    • .575" Max Lift
    • Steel Retainers
    • Assembled, 2/pkg

      ProMaxx has taken their "As-Cast" Maxx Series 220cc heads, performed their 5-angle valve job, and Bowl Blend to promote flow on this head. This yields a great flowing 225cc runner. To this they added only the highest quality 21-4N stainless valves, .575' lift (hyd. flat tappet) springs, steel retainers, 3/8' studs, bronze guides, and guide plates. These heads are a great addition to engine builds 383ci and larger.

      Additional Cylinder Head Specifications
    • Valve Angle: 23°
    • Valve Seal Material: Viton
    • Spark Plug Configuration: Angled
    • Maximum Spring Lift: .575" Hydraulic Flat Tappet Springs

    Maxx Quality, Performance and Affordibility!

    The ProMaxx MAXX Series Small Block Chevy Aluminum Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. Even the ''as cast'' heads utilize ultra-smooth new runner and chamber designs that produce ''CNC'd type'' flow numbers. While creating the 100% CNC Ported MAXX series, Many long hours on the flow bench were invested for one of the best flowing out-of-the-box cylinder heads available at the best price. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending, and professional assembly to outperform the best brands in the business.

    Show More

    Features:

    • A356-T6 Aluminum Castings
    • Hand Bowl Blending
    • Efficient Chamber Design
    • Straight or Angled Spark Plug Configurations Available
    • Available 'Bare' or 'Assembled'
    • 5-Angle Competition Valve Job
    • Diamond-Honed Bronze Guides
    • ''MAXX'' Power for Street or Strip
    • Sold in Pairs, 2/pkg.

      JEGS EZ Kits are designed by JEGS professionals to ensure that you get all the correct parts you need.

    Part TypeCylinder Head
    Product LineProMaxx MAXX Series Small Block Chevy Aluminum Cylinder Heads
    BrandPROMAXX PERFORMANCE
    Package Height9.25
    Package Width12.0
    Package Length21.5
    Weight60.0 PG
    Part CategoryPerformance Parts
    Maximum Valve Lift0.575 in (14.605 mm)
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
