Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

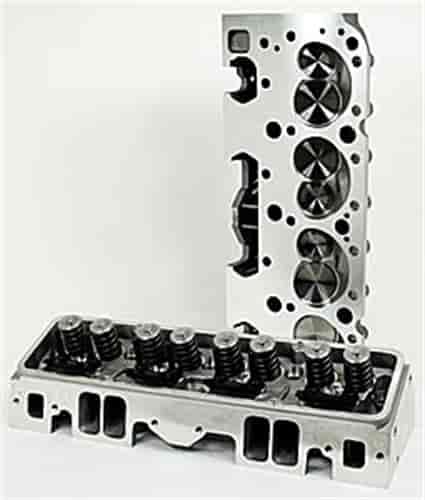

185cc Aluminum Small Block Chevy Cylinder Heads
- 185cc Aluminum Cylinder Heads
- Small Block Chevy
- 2.02''/1.60'' Valves
- 185cc Intake Runner
- 72cc Combustion Chamber
- Straight Plug
- Assembled
- Sold as pairs
Technical Specifications and Recommended Components:
Combustion Chamber - 72cc
Weight - 55.00 lbs
Intake Runner - 185cc
Exhaust Runner - 62cc
Intake Valve Size - 2.02"
Exhaust Valve Size - 1.60"
Max. Valve Spring Lift - .575" Hydraulic Flat Tappet
Spring Pressure - Closed 115 lbs. @ 1.800", Open 315 lbs. @ 1.225"
Valve Seal Material - Viton
Valve Guide - Manganese Bronze
Retainer Material - Steel
Valve Job - 5-angle
Head Bolts - ARP 070-134-3601
Valve Spacing - OEM
Valve Seats - Hardened Steel
Intake Gasket - Fel-Pro 375-1206 or 375-1266
Exhaust Gasket - Fel-Pro 375-1405
Head Gasket - Fel-Pro 375-1004 or 375-1094
Spark Plug - 750" Reach Gasket Seat
Part TypeCylinder Head
BrandPROMAXX PERFORMANCE
Package Height9.0
Package Width12.4
Package Length21.3
Weight58.44 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
