![Maxx 190 Series Aluminum Cylinder Heads [Small Block Chevy]](https://www.jegs.com/images/mini_750/700/723/723-2177.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
190 Series Intake Port Volume64cc Combustion Chambers Straight Spark Plug Configuration

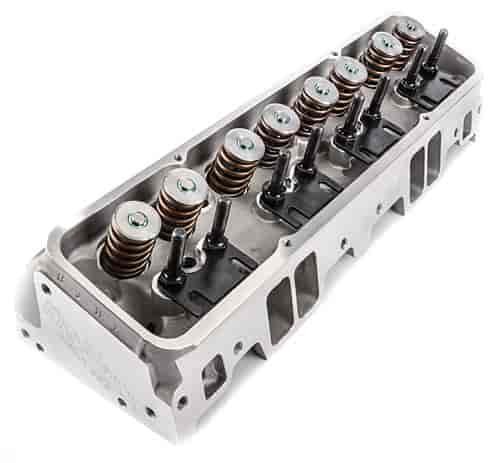

Maxx 190 Series Aluminum Cylinder HeadsSmall Block Chevy CNC Ported 190 cc Intake / 72 cc Exhaust Ports 64 cc Combustion Chambers 2.020 in. Intake / 1.600 in. Exhaust Valves Bare Pair
Features
- CNC port matched to Fel-Pro 1206
- Handles over 500 hp on pump gas 383
- Valve Angle: 23 degree
Flow
- Lift 100: Int. 66/Ext 55
- Lift 200: Int. 132/Ext 111
- Lift 300: Int. 195/Ext 155
- Lift 400: Int. 232/Ext 179
- Lift 500: Int. 252/Ext 193
- Lift 600: Int. 261/Ext 199
Part TypeCylinder Head
BrandPROMAXX PERFORMANCE
Package Height9.1
Package Width11.9
Package Length24.9
Weight52.15 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
