PROMAXX PERFORMANCEPART NUMBER: 723-9208

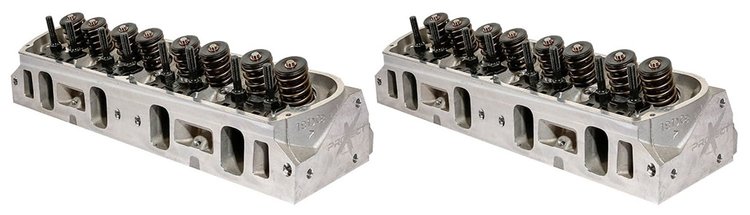

Project X Assembled Aluminum Cylinder Heads for Small Block Ford (210cc)
$1,88800
210cc Intake Runner
Project X Aluminum Cylinder HeadsSmall Block Ford Intake Runner: 210cc Spark Plug: 14mm .750 Valves: 2.08 in. Int./1.60 in. Exh.< Combustion Chamber: 56cc Valve Springs: 230 [email protected] in. Set of 2
ProMaxx 9208 Project X Aluminum Cylinder Head Features:
- Fully assembled with valve springs, steel valve spring retainers, Viton valve seals, 3/8 in. rocker arm studs, and guide plates
- Valve springs for use with a solid roller camshaft with a maximum valve lift of .700 in.
- Cast from 356-T6 ultra-smooth aluminum with larger valve spring pockets and runners designed to be both accurate and precise.
- Uses a 14mm .750 in. reach spark plug such as NGK R5671A-7 (sold separately) or equivalent.
- Valve Angle: 20°
- One-piece 21-4N stainless steel valves are back-cut and swirl polished to promote airflow and are installed in diamond-honed manganese bronze 11/32 in. guides.
- Combustion chambers with unshrouded, hardened steel valve seats that feature a competition 5-angle valve job.
- Fully assembled set of 2
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandPROMAXX PERFORMANCE
Package Height8.0
Package Width12.0
Package Length21.0
Weight65.0 PG
Retainers IncludedYes
Intake Port ShapeRectangle
Guideplates IncludedYes
Oiling StyleThrough pushrod
Valve Seats MachinedYes
Heat CrossoverNo
Guideplate Pushrod Size5/16 in.
Valve Stem Seals IncludedYes
Intake Valve Diameter2.08 in (52.8 mm)
Valve Guide MaterialManganese bronze
Rocker Arm Studs IncludedYes
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.6 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Rocker Arm Nut Thread Size (In.)3/8"-24
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeFord Small Block
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle20
Maximum Valve Lift0.7 in (17.78 mm)
Valve Seat MaterialSteel
FinishNatural
Valve Springs IncludedYes
UsageStreet/Strip
Valve Seat Machine Style5-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
Combustion Chamber StyleHeart
QuantitySold as a set of 2
MaterialAluminum
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)72
Exhaust Port LocationStandard
Combustion Chamber Volume (Cc)56
Machined For O-RingNo
Exhaust Valve Angle20
Cylinder Head StyleAssembled
Valve Stem Diameter11/32 in.
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)210
Cnc-Machined Exhaust RunnerNo
Vendor Part Number9208
Package Qty1
Package TypeEA
