Flow Data

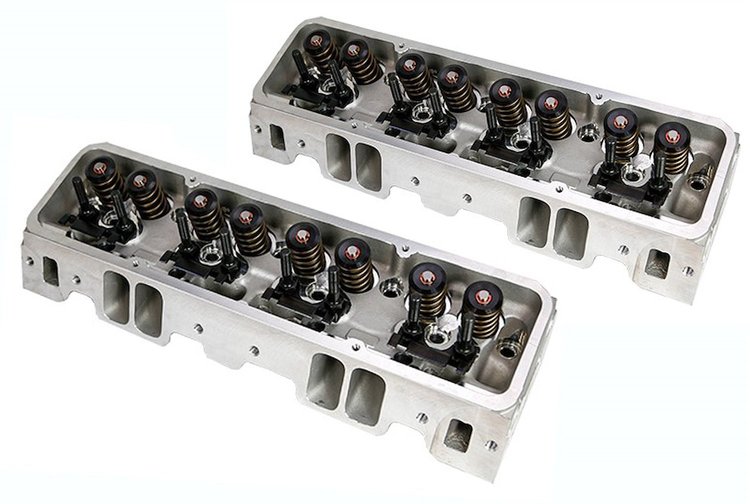

ProMaxx 92198A Project X Aluminum Cylinder Head Features:

• Fully assembled with valve springs, Titanium valve spring retainers, Viton valve seals, 3/8 in. rocker arm studs, and guide plates
• Valve springs for use with a solid roller camshaft with a maximum valve lift of .800 in.
• Cast from 356-T6 ultra-smooth aluminum with larger valve spring pockets and runners designed to be both accurate and precise
• Angled spark plug holes angle use a 14mm .750 in. reach spark plug such as Autolite AR3934 (sold separately) or equivalent
• One-piece 21-4N stainless steel valves are back-cut and swirl polished to promote airflow and are installed in diamond-honed manganese bronze guides
• Diamond Honed Manganese Bronze 11/32 in. Guides
• Combustion chambers with unshrouded, hardened steel valve seats that feature a competition 5-angle valve job
• Fully assembled set of 2

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
