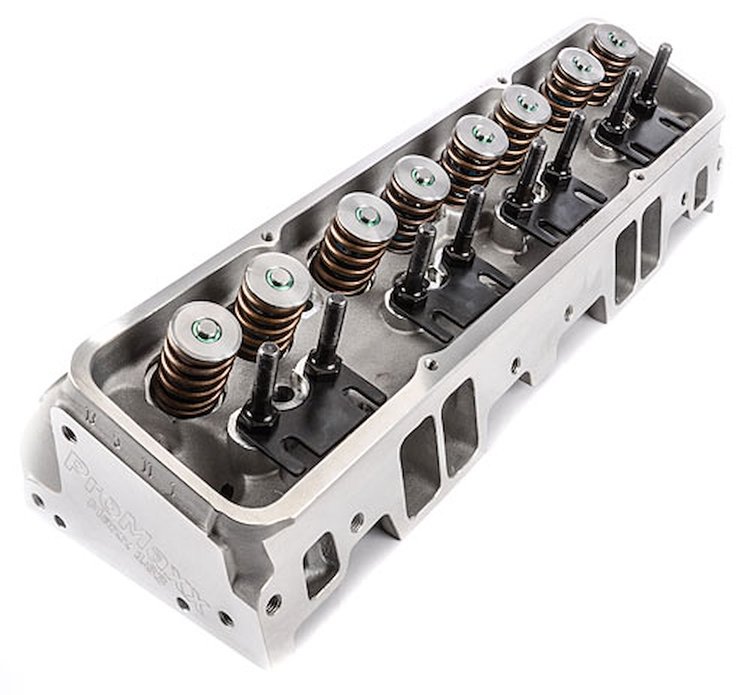

225 Series Aluminum Cylinder Heads Small Block Chevy

Name: 225 Series Aluminum Cylinder Heads Small Block Chevy
Brand: PROMAXX PERFORMANCE
SKU: 723-9227A
Price: 2213.98 USD
Availability: InStock

^$2,213⁹⁸

Ships Tomorrow

Lowest Price Guarantee

225 Series Intake Port Volume

64cc Combustion Chambers

Angled Spark Plug Configuration

Small Block Chevy
100% CNC Ported
225cc Intake Ports
64cc Combustion Chamber
2.08'' Intake / 1.60'' Exhaust Valves
7/16'' Rocker Arm Studs
.700" Max Lift
Steel Retainers
Assembled, 2/pkg

Additional Cylinder Head Specifications
Valve Angle: 23°
Valve Seal Material: Viton
Spark Plug Configuration: Angled
Maximum Spring Lift: .700" Solid Roller Lifter Spring

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCylinder Head

BrandPROMAXX PERFORMANCE

Package Height9.4

Package Width12.1

Package Length21.1

Weight56.08 PG

Part CategoryPerformance Parts

Maximum Valve Lift0.7 in (17.78 mm)

Part FitmentSemi Universal

Package Qty1

Package TypeEA
