225 Series Aluminum Cylinder Heads Small Block Chevy
Product Discontinued
PROMAXX PERFORMANCEPART NUMBER: 723-9228

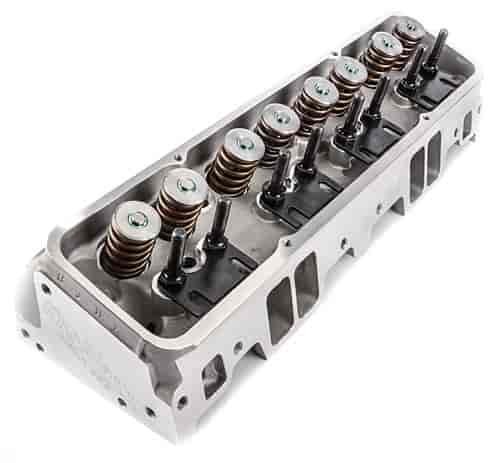

225 Series Aluminum Cylinder Heads Small Block Chevy

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

225 Series Intake Port Volume
  • 64cc Combustion Chambers
  • Straight Spark Plug Configuration
    • 225 Series Aluminum Cylinder Heads
    • Small Block Chevy
    • 100% CNC Ported
    • 225cc Intake Ports
    • 64cc Combustion Chamber
    • 2.08'' Int / 1.60'' Exh Valves
    • 7/16'' Rocker Arm Studs
    • .700" Max Lift
    • Titanium Retainers
    • Assembled, 2/pkg

      Additional Cylinder Head Specifications
    • Valve Angle: 23°
    • Valve Seal Material: Viton
    • Spark Plug Configuration: Straight
    • Retainer Material: Titanium
    • Maximum Spring Lift: .700" Solid Roller Lifter Springs

    Maxx Quality, Performance and Affordibility!

    The ProMaxx MAXX Series Small Block Chevy Aluminum Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. Even the ''as cast'' heads utilize ultra-smooth new runner and chamber designs that produce ''CNC'd type'' flow numbers. While creating the 100% CNC Ported MAXX series, Many long hours on the flow bench were invested for one of the best flowing out-of-the-box cylinder heads available at the best price. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending, and professional assembly to outperform the best brands in the business.

    Show More

    Features:

    • A356-T6 Aluminum Castings
    • Hand Bowl Blending
    • Efficient Chamber Design
    • Straight or Angled Spark Plug Configurations Available
    • Available 'Bare' or 'Assembled'
    • 5-Angle Competition Valve Job
    • Diamond-Honed Bronze Guides
    • ''MAXX'' Power for Street or Strip
    • Sold in Pairs, 2/pkg.

      JEGS EZ Kits are designed by JEGS professionals to ensure that you get all the correct parts you need.

    Part TypeCylinder Head
    Product LineProMaxx MAXX Series Small Block Chevy Aluminum Cylinder Heads
    BrandPROMAXX PERFORMANCE
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
