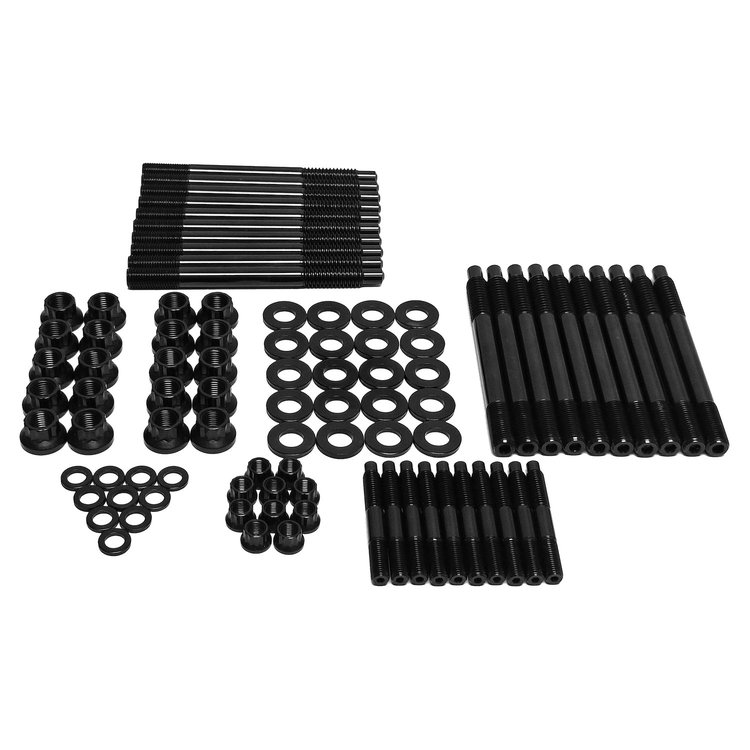

1036421 Cylinder Head Stud Kit, GM Chevy
InfoVehicle Info Needed
PRWPART NUMBER: 228-1036421

1036421 Cylinder Head Stud Kit, GM Chevy

$27125
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

Cylinder Head Stud Kit
  • GM
  • LS3
  • 4.8
  • 5.3
  • 6.0
  • 6.2L
  • 2004-Up
  • Custom-4140 Alloy Steel
  • 200,000 PSI

    PRW 1036421 Features:

    PRW uses premium grade 4140 Alloy Steel. Our studs are then specially heat-treated to 200,000 psi. This heat treating procedure allows for total heat penetration which results in a stronger, more superior stud compared to lesser quality studs from other manufacturers. To ensure perfect alignment with gaskets and cylinder heads, PRW studs are then centerless ground after being heat treated. This attention to detail results in remarkably straight and concentric studs. PRW studs are then thread rolled which assures better fatigue strength than having this process done before heat treatment. This manufacturing process may cost more to do but the results are well worth the extra effort. You will also note that PRW offers specially undercut studs for several engines. This procedure (done only to the shorter studs) more equalizes the "stretch" of both studs, which makes for a more consistent clamping force - and one that compensates for head gasket compression when the cylinder heads are installed. This helps prevent blown head gaskets, and assures optimum engine sealing! Premium quality heat-treated 4135 chrome moly steel head stud kits are available for most every domestic and import applications. You won't find a better quality stud on the market from any other source. Look for PRW stamped on each stud and 12 point nut is your assurance of quality. Comes with PRW CMD Extreme Pressure Assembly Lube (0.5oz Packet)

    • Heat Treated
    • Black Oxide Finish
    • Rated at 200,000 psi tensile strength
  • Part TypeCylinder Head Bolt
    BrandPRW
    Package Height2.6
    Package Width4.7
    Package Length10.3
    Weight4.97 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number1036421
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Some parts are not legal for use in California or other states with similar laws / regulations
