QA1PART NUMBER: 122-DM501-2001

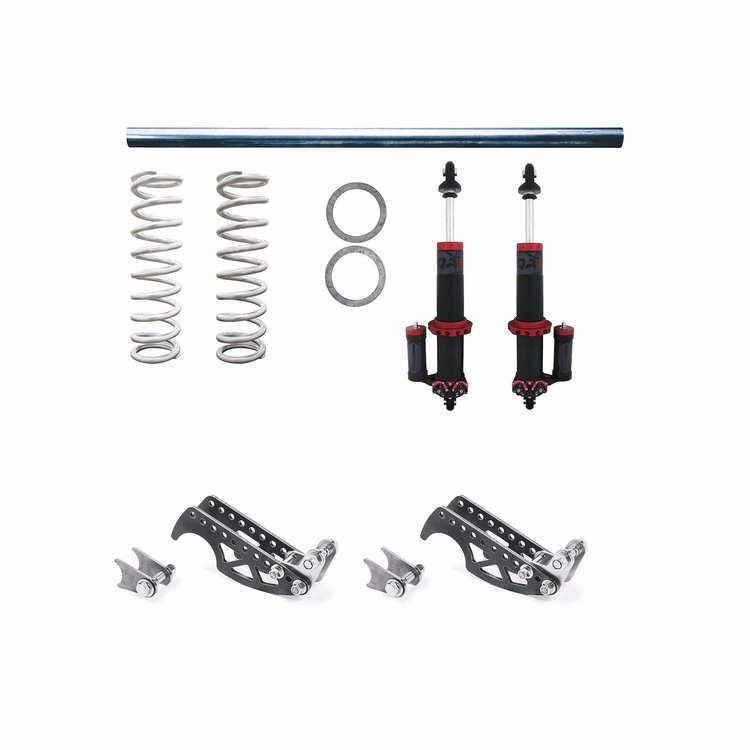

DM501-2001 Heavy-Duty Pro Rear Coil-Over Conversion System for 3 1/4 in. Axle Tubes w/MOD-Series Shocks & 200 lb. Springs
$2,11695
MOD-Series
Heavy-Duty Pro Rear Coil-Over Conversion SystemAdjustable Brackets for 3 1/4 in. Axle Tubes MOD-Series Star Coil-Over Shocks 200 lb. Coil-Over Springs Double-Shear Bracketry 9 in. of Ride Height Adjustability Street or Race
QA1 DM501-2001 Heavy-Duty Pro Rear Coil-Over Conversion System Features:
- MOD-Series Coil-Overs are for top builds wanting more tunability and aggressive force curves, they feature modular valve packs allowing valving changes without removing them from the car. and with high-speed and low-speed bleed adjustability, these shocks are both streetable and able to get high-horsepower cars down the drag strip
- Simple weld-in solution to get the job done efficiently without major fabrication
- Axle-mounted brackets offer 3/4 in. increments of adjustment and the with the coil-over allows for fine-tuning and a total of 9-inches of ride height adjustability
- Double-shear bracketry is suitable for vehicles with a rear axle weight of 1700-2600 lbs.
QA1 DM501-2001 Heavy-Duty Pro Rear Coil-Over Conversion System Notes:
- Welding required
- Upper shock mount tubing is 1 5/8 in. diameter x .095 wall x 40 in. length
Perfect Solution for Adding Coil-Overs
QA1 Heavy-Duty Pro Rear Coil-Over Systems are the solution to add coilovers to your ride for street or race applications.
Part TypeSuspension Kit
Product LineQA1 Heavy-Duty Pro Rear Coil-Over Conversion Systems
BrandQA1
Package Height8.0
Package Width8.0
Package Length40.0
Weight40.25 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Adjustable Mounting Bracket IncludedYes
AdjustabilityDual Adjustable
Part FitmentSemi Universal
Vendor Part NumberDM501-2001
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
