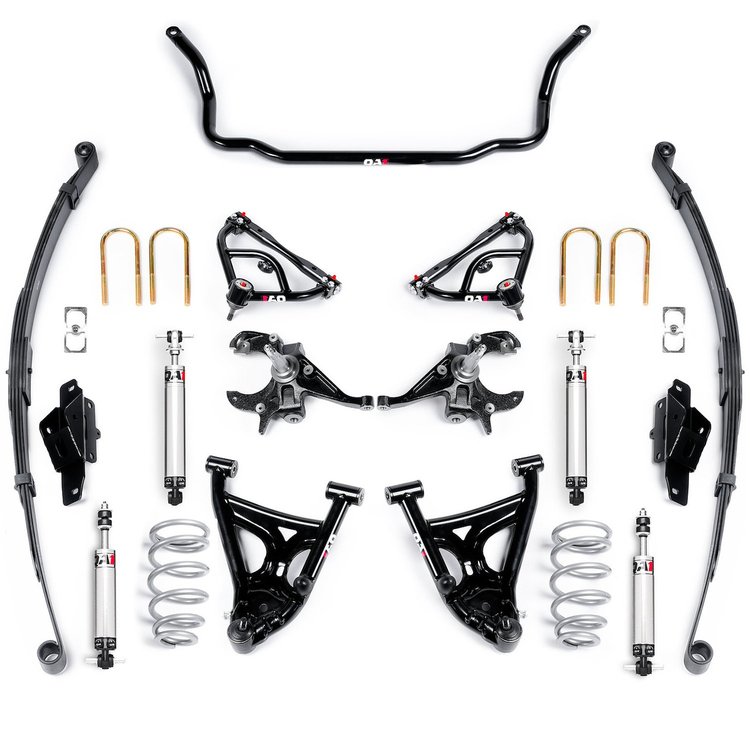

HK02-GMS1 Handling Kit Level 2 for 1982-2003 Chevy S10 2WD
InfoVehicle Info Needed
QA1PART NUMBER: 122-HK02-GMS1

HK02-GMS1 Handling Kit Level 2 for 1982-2003 Chevy S10 2WD

$4,49995
Truck Freight
ShippingShips on 01/11/2027
ShippingFree shippingLowest PriceLowest Price Guarantee

Items You Need

Caster/Camber Gauge [Camber Angles: +/- 8 Deg.]

JEGS

Caster/Camber Gauge [Camber Angles: +/- 8 Deg.]

Part Number : 555-81679
$17599$204.99
You Save$29.00
Angle Finder and Level 3-1/2"

JEGS

Angle Finder and Level 3-1/2"

Part Number : 555-81645
$919$9.99
You Save$0.80
Universal Billet Spanner Wrench Set Removable Teeth

JEGS

Universal Billet Spanner Wrench Set Removable Teeth

Part Number : 555-81802
$3199$35.99
You Save$4.00
Steel Spanner Wrench Set

JEGS

Steel Spanner Wrench Set

Part Number : 555-81800
$2058$21.99
You Save$1.41

Handling Kit Level 2
  • 1982-2003 Chevy S10 2WD
  • Double-Adjustable Coil-Over Shocks
  • Black Powder Coat Finish

    QA1 122-HK02-GMS1 Features:

    The QA1 Level 2 Handling Kit for 1982-2003 Chevy S10 pickups delivers a balanced, full-vehicle suspension upgrade engineered to work together from front to rear. Designed for street performance enthusiasts, this kit improves handling response, steering feel, and ride quality while achieving a clean, lowered stance. QA1 assembled this system as a complete solution. Every component was hand selected to complement the others, giving you predictable performance, proper geometry, and an easier path to a well-sorted truck.

    Capable of a 2-4” drop up front and up to a 5” drop in the rear, this Level 2 kit delivers a clean, lowered stance. Up front, 18-way double adjustable QA1 coil-over shocks allow you to fine-tune ride quality while maintaining confident control through corners. Tubular upper and lower control arms improve suspension geometry and strength, helping the truck feel more planted and responsive on the street.

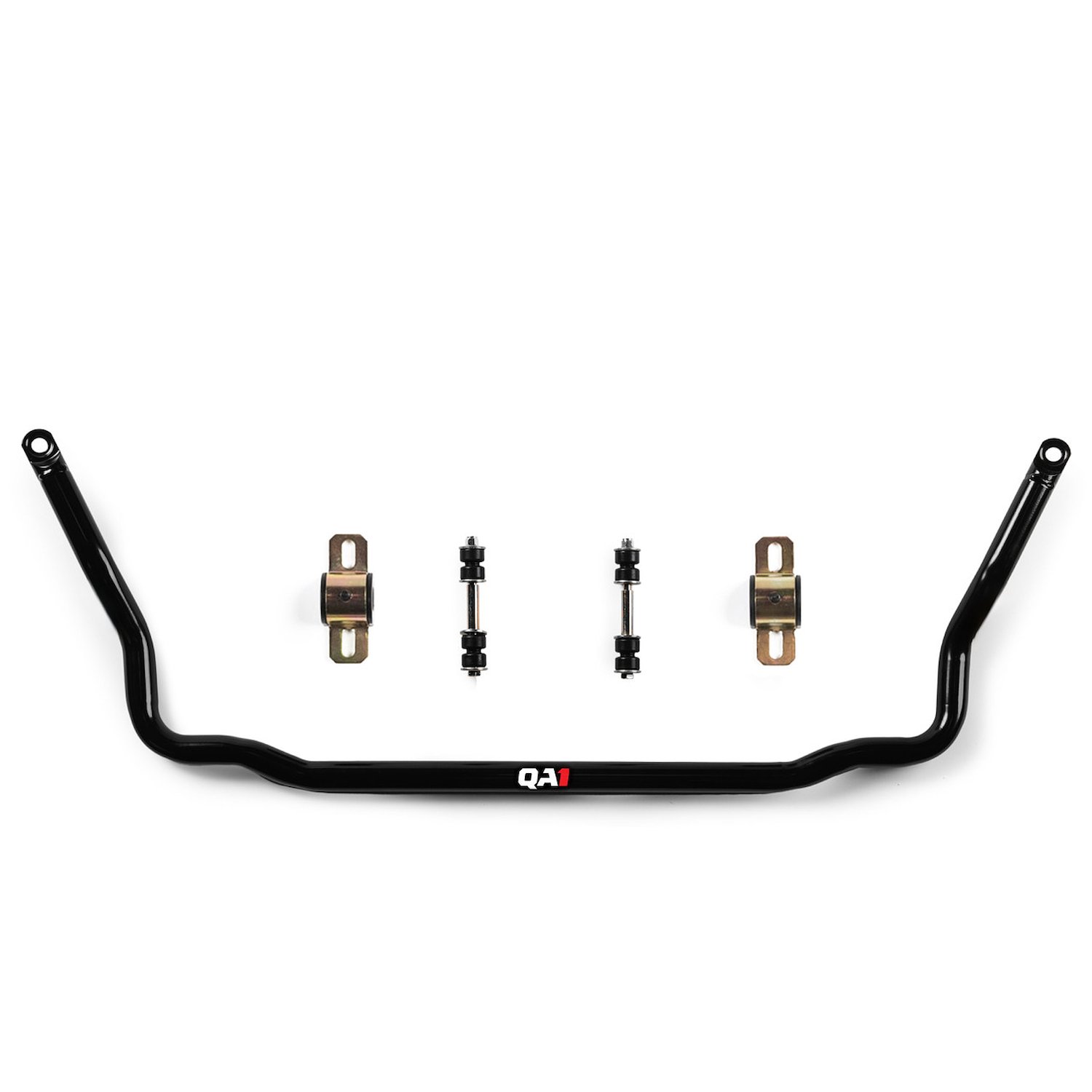

    Forged drop spindles correct steering geometry at lowered ride heights, reducing bump steer and maintaining proper alignment throughout suspension travel. A QA1 fat front sway bar further improves handling control, delivering flatter cornering and improved stability during spirited driving.

    Out back, lowering rear leaf springs were chosen for the right spring rate and unique reverse spring eye design. The front spring mount is optimized for improved anti-squat characteristics, giving you more control over how the truck plants power to the ground, especially when launching or cornering.

    • QA1 double adjustable coil-over shocks allow ride quality tuning to match your driving style
    • Tubular QA1 upper and lower control arms improve strength and suspension geometry
    • QA1 front sway bar reduces body roll and sharpens handling response
    • Proforged drop spindles maintain proper steering geometry at lowered ride heights
    • Detroit Speed rear leaf springs add built-in drop while maintaining ride quality
    • Engineered as a complete front and rear system for predictable performance
    • Bolt-on installation designed for street performance builds
    • Ideal for enthusiasts looking for improved handling without harsh ride quality

    Notes:

    • Fits 1982-2003 S10 Pickups (RWD)
    • Fits 1982-1990 GMC S15 and 1991-2003 GMC Sonoma (RWD)
    • Front drop range: approximately 2-4 inches
    • Rear drop range: up to approximately 5 inches
    • Designed for street performance applications
    • Bolt-on installation using factory mounting locations
    • U-bolt kit included
    • Requires OEM leaf spring rear eye bushing for installation
  • Part TypeSuspension Kit
    BrandQA1
    Package Height40.0
    Package Width40.0
    Package Length50.0
    Weight255.0 PG
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Front Sway Bar IncludedYes
    Rear Leaf Springs IncludedYes
    Control Arms IncludedYes
    AdjustabilityDual Adjustable
    Part FitmentDirect Fit
    Rear Shocks/Struts IncludedYes
    Coil Over Springs IncludedYes
    Vendor Part NumberHK02-GMS1
    Package Qty1
    Package TypeEA
