Vehicle Info NeededQUICK FUELPART NUMBER: 793-30-803QFT

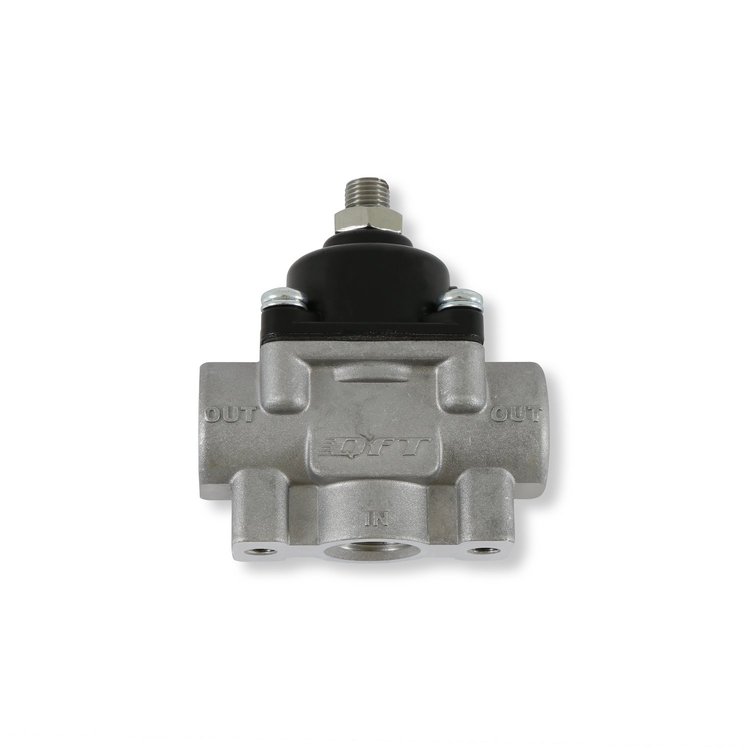

Fuel Pressure Regulator Designed for High Pressure Pumps
$4850
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeFuel Pressure Regulators
- Fuel Pressure Regulator
- Designed for High Pressure Pumps
- 3/8" NPT Inlet and Outlet Ports
- 30cc Diaphragm
- Includes Mounting Bracket and Hardware
Pressure Regulator - Cast body with powder coated black top. Features 30cc diaphragm and mounting bracket with hardware. 3/8" NPT ports (single inlet, dual outlet).Supports 4-barrel gas engines up to 600 HPDesigned to operate within 4.5 - 9 PSI range; Preset at 7 PSI.250" (1/4") restrictionIncludes mounting bracketIncludes an 1/8" NPT port for manifold referenceBoost Reference 1-1
- High-Pressure Fuel Regulator
This pressure regulator with ball and stem activation utilizes a high-quality Quick Fuel Technology diaphragm assembly. It features a high-flow capacity that can satisfy single four-barrel engines rated up to 650 HP. 4-1/2 to 9 psi range.
Bypass Regulator
This bypass regulator enables excess fuel and pressure to return to the tank. Eliminates ''creep'' at low RPM without restriction. It can support engines rated up to 900 HP. Recommended for electric fuel pumps with steady output pressure. 4-1/2 to 9 psi range.
Jegs Easy Kits are designed by Jegs Professionals to help you get all the performance parts you need. Kit includes two 3/8" NPT to -6AN fittings, two straight -6AN hose ends, two 90° -6AN hose ends, -6AN 6' hose, 15 psi gauge, and Regulator #793-30-803.
Part TypeFuel Pressure Regulator
Product LineQuick Fuel Technology Fuel Pressure Regulators
BrandQUICK FUEL
Package Height1.3
Package Width7.1
Package Length7.9
Weight0.7 PG
Part CategoryPerformance Parts
Part FitmentUniversal
Vendor Part Number30-803QFT
Package Qty1
Package TypeEA
No Questions
No Reviews
EASY KITS
Some parts are not legal for use in California or other states with similar laws / regulations
