Made in USA
1150cfm QFX 4-bbl Carburetor 3-Circuit
InfoVehicle Info Needed
QUICK FUELPART NUMBER: 793-FX-4711

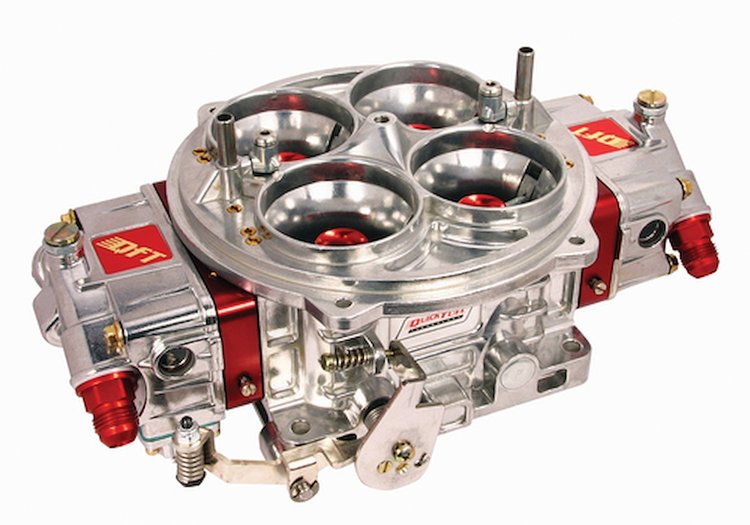

1150cfm QFX 4-bbl Carburetor 3-Circuit

$1,84995
ShippingShips on 09/24/2026
Lowest PriceLowest Price Guarantee

Gasoline
    1150cfm QFX 4-bbl Carburetor
  • 3-Circuit
  • 1.800" Venturi x 2.000" Throttle Bore

  • Calibrated for single 4-bbl applications
  • Nitrophyl floats (notched rear) and jet extensions
  • Viton .130" needle & seat

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

For serious drag race applications, all-aluminum Quick Fuel QFX Carburetors were developed with the racer in mind. A distinctive lightweight main body with lengthened venturi offers more mid-range torque, which is great for both throttle stop and bracket racing. Heads-up racers benefit from the raised intermediate system that provides a stronger signal and better flow to the booster venturi. QFX Carbs come with all-new billet metering blocks designed for each fuel type: gas, methanol, and E85. Strong and reliable cast aluminum fuel bowls have dual threaded fuel inlets & dual sight glass for simple float level setting. Dedicated floats ensure maximum performance without additional upgrades. CNC'd billet aluminum booster inserts provide refined air entry/exit for improved fuel emulsion resulting in superior combustion (gas carbs have 12 discharge holes compared to the standard 8).

Show More

Features:

  • Range: 525 to 1450 cfm (some carburetors available in a kit*)
  • Purpose-built for drag racing
  • Hand assembled & engine tested
  • Lightweight aluminum construction
  • Main body with extended venturi for greater mid-range torque
  • Billet metering blocks specific to fuel
  • Cast aluminum fuel bowls
  • Easy float level adjustment
  • Annular boosters
  • CNC-machined billet aluminum booster inserts provide enhanced air entry/exit, improved fuel emulsion, and superior combustion
  • External linkage with four links to choose the amount of primary throttle opening before the secondaries open: Moderate Progressive (25%), Medium Progressive (40%), Full Progressive (50%), and 1:1

JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.

*Kits include: specified QFX Carburetor, JEGS Fuel Log #555-15601, and JEGS Fuel Pressure Gauge #555-41010.

Part TypeCarburetor
Product LineQuick Fuel QFX Carburetors
BrandQUICK FUEL
Package Height8.2
Package Width12.7
Package Length15.3
Weight13.04 PG
Part CategoryPerformance Parts
ChokeNone
QuantitySold individually
BarrelFour
Cfm1,150
Throttle Linkage TypeUniversal
New Or RemanufacturedNew
Ford KickdownNo
Carburetor FlangeDominator
FuelGasoline
Booster TypeAnnular
Secondary TypeMechanical
Part FitmentSemi Universal
FinishTumble polished
Vendor Part NumberFX-4711
Package Qty1
Package TypeEA
