QUICK FUELPART NUMBER: 793-M-750

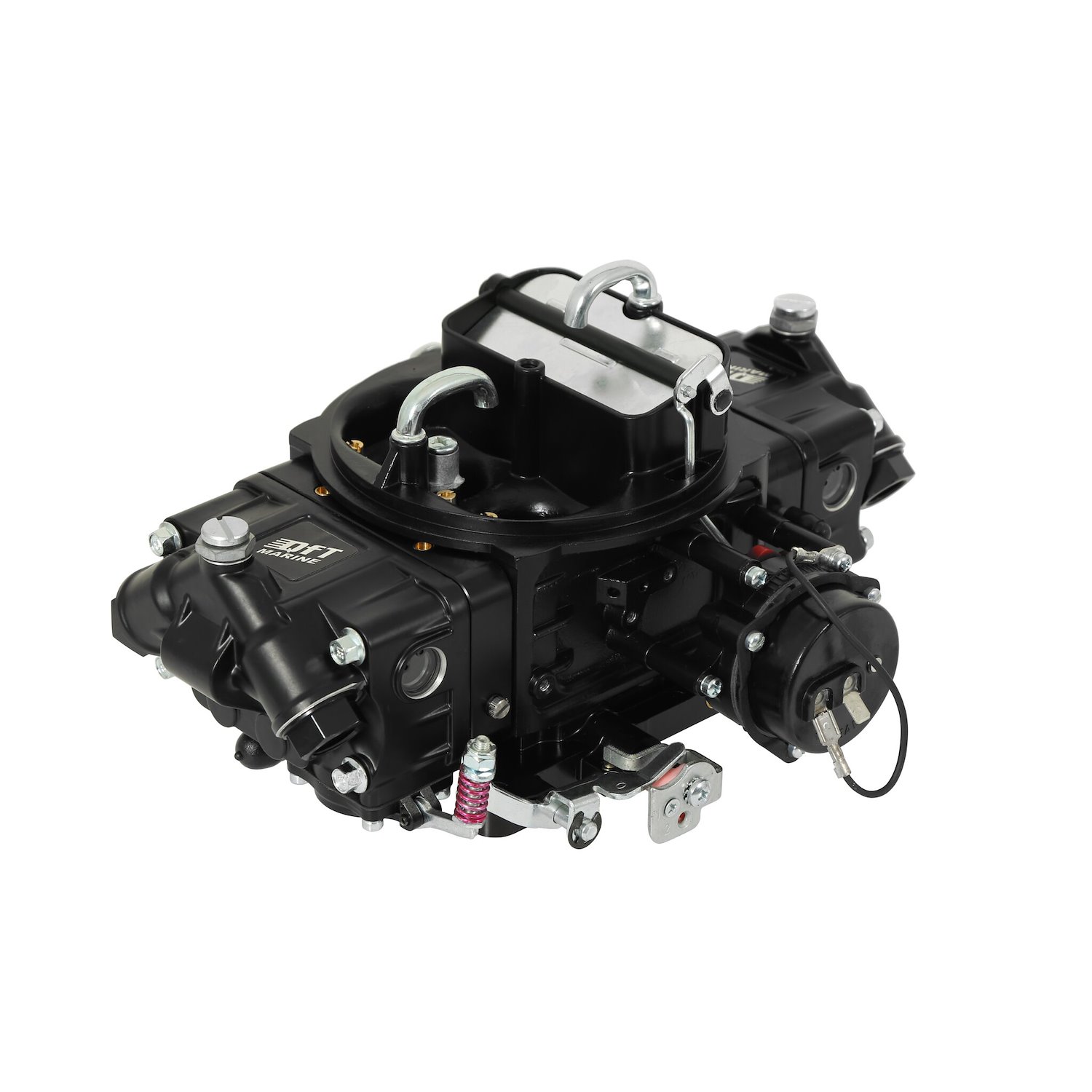

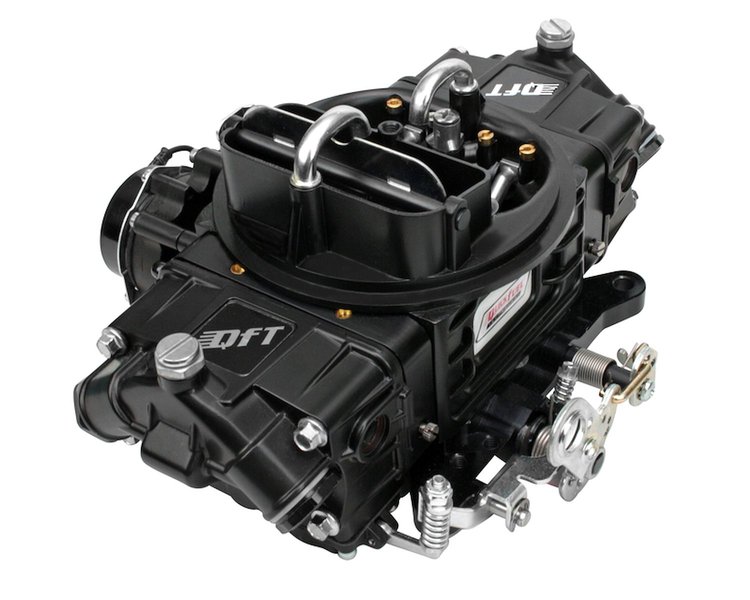

Marine Carburetor 750 cfm
$99995
1 left in stockMarine Carburetors
- Marine Carburetor
- 750 cfm
- Mechanical Secondaries
QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperatureElectric choke - Fully adjustable, one wire hookupJ tubes to prevent spillagePTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel platesBuilt-in sight glass windows for easy float adjustmentChangeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleedsQuickLinkâ„¢ secondary adjustment for fast and easy changing of opening ratesAvailable in eight different sizes from 350-1,050 cfm
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCarburetor
BrandQUICK FUEL
Package Height7.5
Package Width11.3
Package Length13.4
Weight9.47 PG
Part CategoryPerformance Parts
Carburetor Height3.25 in (82.55 mm)
UsageMarine
Carburetor FinishSatin black
Secondary Barrel TypeMechanical
Gasket Or Seal IncludedYes
Mounting Hole Quantity4
Body ColorBlack
Primary Main Jet75
Cfm750
Booster DesignDown Leg
Fuel TypeGasoline
Float LevelExternally Adjustable
Primary Power Valve65
Choke TypeElectric
Flange TypeSquare/4150
Body MaterialAluminum
Barrel Quantity4
Secondary Main Jet83
Part FitmentUniversal
Body FinishBlack Diamond E-Coat
Grade TypeMarine
Marine ApprovedYes
Vendor Part NumberM-750
Package Qty1
Package TypeEA
