Q-Series Circle Track E85

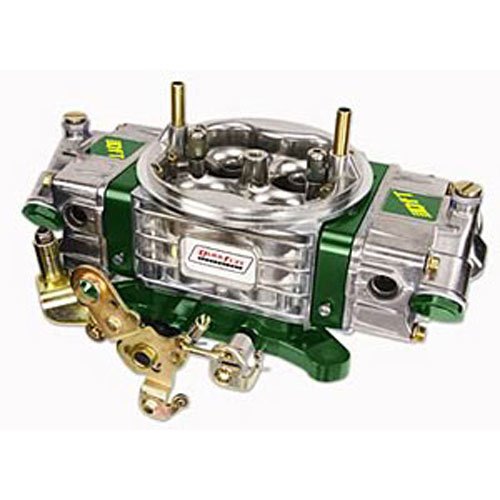

- E85 Circle Track Race Carburetor
- 750 cfm
While modifying a street carburetor for circle track applications can work reasonably well, Quick Fuel Technology's Q-Series circle track carbs eliminates the guesswork and offer substantial advantages in adjustability, consistency, and predictability. Since racing around a banked oval pushes fuel to the passenger side of the car, Q-Series circle track carburetors feature die-cast aluminum fuel bowls with internal baffles that eliminate slosh. The bowls also feature an integrated fuel chute that substantially reduces aeration, and directs fuel toward the main jet pickup area. To assist in flattening out the fuel curve, screw-in air bleeds enable fine-tuning of both the low- and high-speed systems, while a proprietary booster design enhances carb signal without restricting high-rpm airflow. Helping drivers put the power down is an adjustable QuickLink system that allows changing the opening rate of the secondaries to 40-, 60-, or 100 percent. Circle track Q-Series carbs are available in 6 different sizes ranging from 650-1,050 cfm for both gasoline and alcohol applications. All Q-Series circle track carburetors are equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life.Lightweight aluminum main bodyVacuum and mechanical secondary models availableAluminum fuel bowls with dual sight glass windowsBillet metering blocks with 4-corner idle systemChangeable idle feed and power valve channel restrictionsBillet aluminum throttle body provides exceptional precision and strengthPTFE coated and sealed shafts that have been slabbed for added air flow
Part TypeCarburetor
BrandQUICK FUEL
Part CategoryPerformance Parts
Carburetor Height3.25 in (82.55 mm)
Carburetor FinishTumble polished
Package Qty1
Package TypeEA
