This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

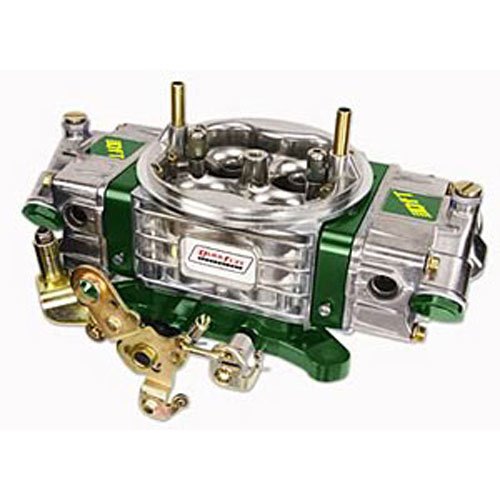

- E85 Race Carburetor
- 750 cfm
Ideally suited for bracket racers and weekend warriors alike, Q-Series carburetors are purpose-built for the dragstrip. To combat the g's experienced during hard launches, Q-Series carbs are equipped with notched floats and secondary jet extensions. The high-flow aluminum main body isn't just lightweight, but it also features recessed air bleed cavities for improved air flow. Die-cast venturi are machined to exacting tolerances for outstanding throttle response. Billet metering blocks ensure a uniform fuel curve, while throttle-bodies enhance durability. For those days when track conditions vary from one pass to the next, QFT's QuickLink system makes adjusting the secondaries easy on models equipped with mechanical secondaries. The Q-Series is our most comprehensive line of carburetors, with applications available for use with gasoline, methanol, and E85 fuels, forced induction, drag race, circle track, and comes in both vacuum and mechanical secondary models.Lightweight aluminum main bodyVacuum and mechanical secondary models availableAluminum fuel bowls with dual sight glass windowsBillet metering blocks with 4-corner idle systemChangeable idle feed and power valve channel restrictionsBillet aluminum throttle body provides exceptional precision and strengthPTFE coated and sealed shafts that have been slabbed for added air flow
In recent years, much attention has been focused on alternative fuels. Of those available, E85 is the commercially-viable forerunner that, with minor alterations, can be distributed using a vehicle's existing infrastructure. Specifically developed/calibrated for use with E85, these carbs have been dyno tested to produce optimum power and tested on numerous vehicles to validate calibration. Applications vary so some calibration changes may be required to maximize performance potential on your vehicle. Current calibration is an excellent baseline that is closer than methanol or gasoline carburetors.
Show More
Features:- Engineered all aluminum main body
- Changeable air bleeds idle & high speed for ultimate tuneability
- Aluminum fuel bowls with dual sight glass windows
- Billet metering blocks with changeable idle feed & power valve channel restrictions
- 4 corner idle system
- Notched secondary floats
- Secondary jet extensions
- Slabbed throttle shafts with PTFE bearing ribbons w/stainless steel plates
- Billet aluminum throttle body
