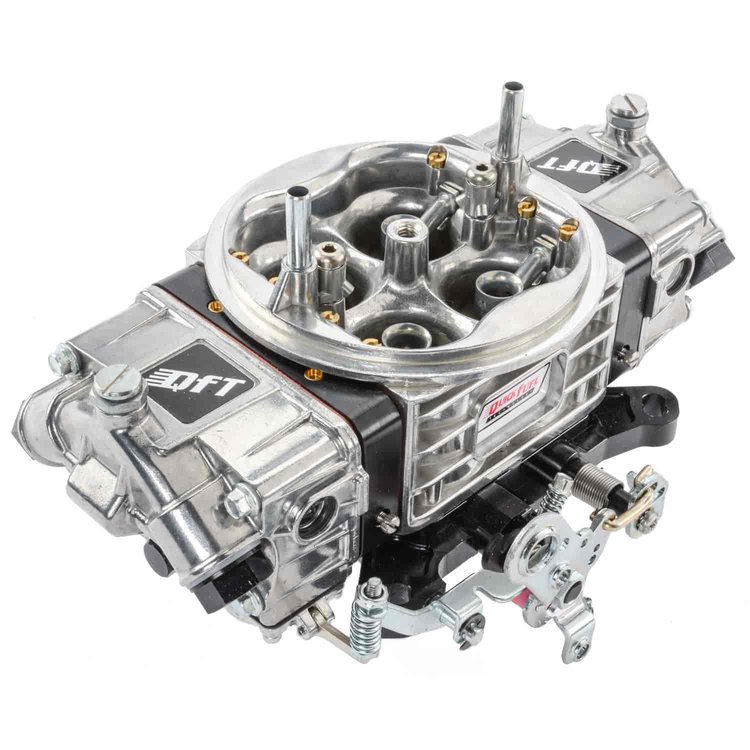

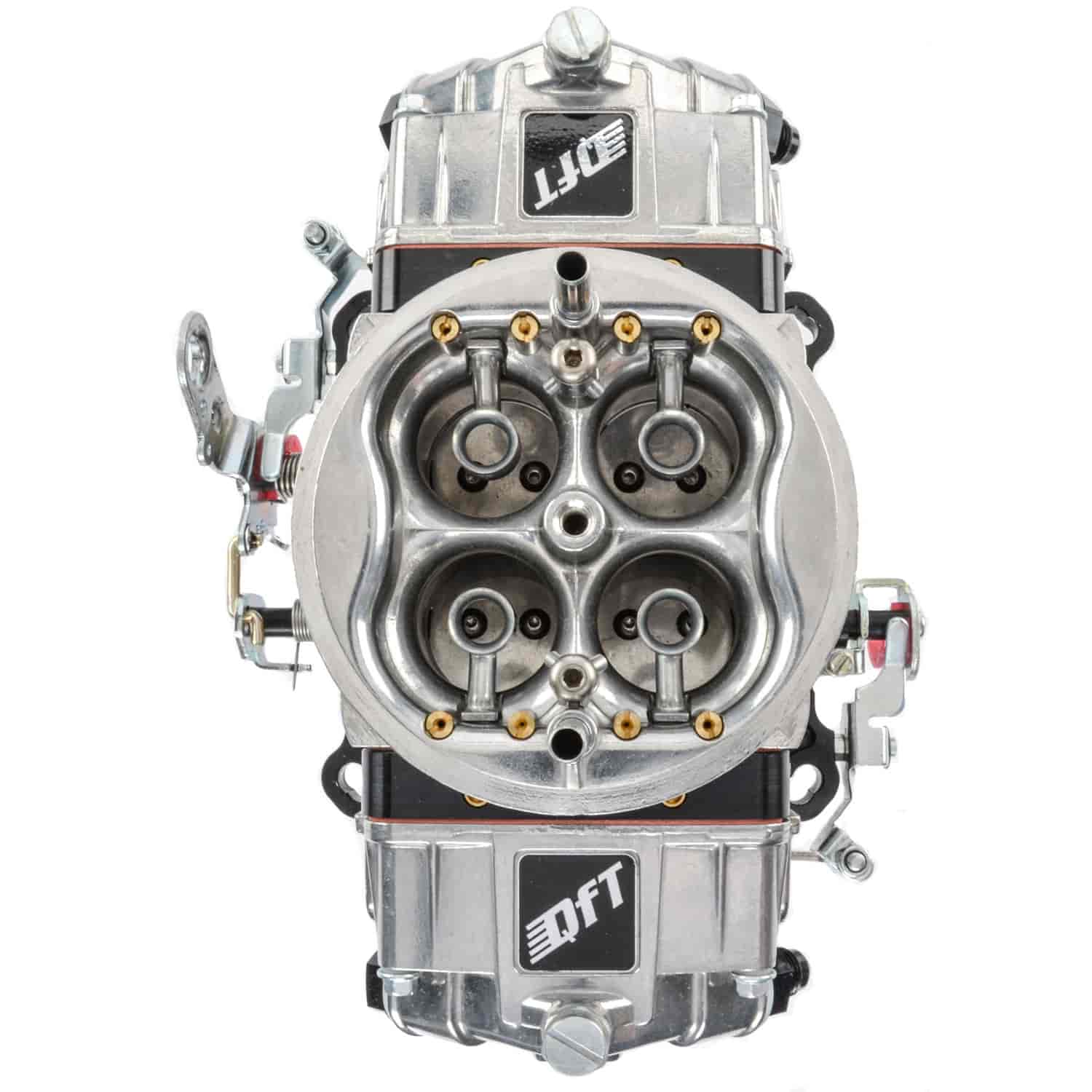

Race-Q 950 CFM Carburetors
- Race-Q 950 CFM
For competitive classes where every last hundredth of a second counts, Race Q-Series carburetors offer excellent performance, consistency, and tunability. Vacuum-drawn die-cast aluminum main bodies eliminate porosity and yield extremely precise tolerances. Scalloped, symmetrical throttle bore openings work in concert with recessed air bleed cavities to minimize flow restrictions, and specially contoured venturi provide a broad operating range. For added versatility, Race Q carbs utilize a dual-pattern billet throttle-body, making them compatible with both 4150- and 4500-style flanges. All Race Q carburetors feature billet metering blocks with five-stage changeable emulsions, as well as, throttle bodies with roller bearing seals to provide smoother operation, less wear on shaft, and longer life.Race style aluminum main body with upgraded downleg race boostersScrew-In airbleeds that have been recessed and moved out of the air way for less restriction5-Emulsion billet metering blocks with screw-in bleeds for every circuit - fully adjustableLightweight aluminum fuel bowls with internal baffles, raised roof, re-designed fuel entry orifice and built-in sight windows4-corner idleBillet throttle body with roller-bearing sealed shafts that have been slabbed for added air flow, stainless steel throttle plates, and secondary adjustable cam bracket. Each throttle body is machined for both 4150 or 4500 style manifolds.
Dedicated and designed for the hardcore drag racer, this carburetor is easy to adjust and will provide unmatched performance. Made from premium aluminum throughout with billet metering blocks and throttle body it's lightweight and durable. Each carburetor is hand-assembled in the USA and individually engine tested - it's ready to race out of the box.
Features:
- 4-corner idle
- Screw-In airbleeds that have been recessed and moved out of the air way for less restriction
Show More
- Race style aluminum main body with upgraded downleg race boosters
- 5-Emulsion billet metering blocks with screw-in bleeds for every circuit - fully adjustable
- Lightweight aluminum fuel bowls with internal baffles, raised roof, re-designed fuel entry orifice and built-in sight windows
- Billet throttle body with PTFE coated and sealed shafts that have been slabbed for added air flow, stainless steel throttle plates, and secondary adjustable cam bracket. Each base plate is machined for both 4150 or 4500 style manifolds
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
Part TypeCarburetor
Product LineQuick Fuel Race-Q Carburetors
BrandQUICK FUEL
Package Height7.6
Package Width11.4
Package Length13.7
Weight8.8 PG
Part CategoryPerformance Parts
Primary Power Valve (Hg)4.5 Hg
ChokeNone
Primary Jet Size80
QuantitySold individually
Primary Inner Air Bleed Sizes Included32
BarrelFour
Cfm950
Primary Outer Air Bleed Sizes Included70
Secondary Power ValvePlug
Secondary Outer Air Bleed Sizes Included70
Throttle Linkage TypeUniversal
New Or RemanufacturedNew
Ford KickdownNo
Carburetor FlangeSquare bore
FuelGasoline
Booster TypeDown-leg
Secondary TypeMechanical
Secondary Jet Size86
FinishTumble polished
Secondary Inner Air Bleed Sizes Included32
Package Qty1
Package TypeEA
