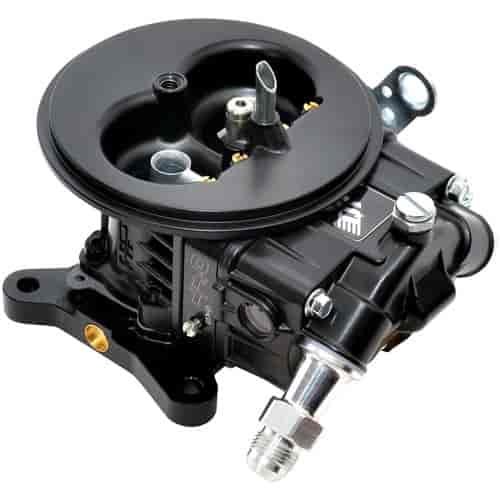

E85 2-bbl Carburetor 500 cfm

Name: E85 2-bbl Carburetor 500 cfm
Brand: QUICK FUEL
SKU: 793-XP-4412-E85
Price: 643.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ethanol Carburetors

500 cfm
Venturi: 1.375"
Downleg Booster

In circle track classes that mandate two-barrel carburetors, customizing a street carburetor has been the norm for decades. Not anymore. Designed from the ground up to meet the unique demands of circle track racing, QFT's new XP-Series offers the performance benefits of a custom carburetor in an affordable, turnkey, class-legal package. At a bare minimum, modifying a standard street carburetor for circle track duty typically involves changing the throttle-plates, floats, and metering blocks. These custom modifications can easily exceed the cost of a turnkey QFT two-barrel carb while still lacking many of the key features that only a clean-sheet redesign can offer. A high-flow aluminum main body design centers the venturi over the throttle-body assembly. To further increase airflow, QFT centers the air horn over the venturi, removes the choke tower, and carefully profiles the air inlet transition. The result is enhanced airflow and fuel distribution, which improves throttle-response and horsepower. All XP-Series carburetors are equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life. Available in 500- and 600 cfm sizes, the XP-Series sets a new standard in two-barrel circle track carbs.High-flow aluminum main body with centered venturi for improved performance and better air/fuel distributionBlack anodized billet 2-Circuit metering block and throttle bodyThrottle body incorporates roller bearing seals which provide smoother operation, less wear on shaft, and longer lifeAnti-siphon check valve in main body to reduce pump pull-overChangeable emulsion bleeds and power valve channel restrictions for better tuning capabilitiesDual inlet fuel bowl with #8AN fittingsDual sight glass windows for easy float adjustmentSingle wedge circle track floatExclusive Black DiamondÂ® coating for enhanced corrosion protection and appearance. Provides a 6% reduction in fuel temperature.

High-Performance 2-Barrel Carbs Built for Circle Track Racing

The XP Series design makes these carburetors competitive with custom carbs yet at a much lower cost. Each die-cast carburetor has a light aluminum main body with centered venturi, anti-siphon check valve to reduce pump pullover, and straight boosters for better distribution; the choke tower has been removed.

Additional Features

Adjustable Idle Mixture Screws
Power Valve Blowout Protection
Contoured Inlets Increase Airflow
Dual Sight Glass Windows for Easy Float Adjustment
Durable Black Diamond Coating Provides 6% Reduction in Fuel Temperature
Completely Tunable with Changeable Air Bleeds, Emulsion Bleeds, and Power Valve Channel Restrictions

Part TypeCarburetor

Product LineQuick Fuel XP Series Circle Track 2-bbl Carburetors

BrandQUICK FUEL

Package Height7.5

Package Width11.5

Package Length13.4

Weight5.77 PG

Part CategoryPerformance Parts

Carburetor Height3.25 in (82.55 mm)

Carburetor FinishSatin black

Package Qty1

Package TypeEA
