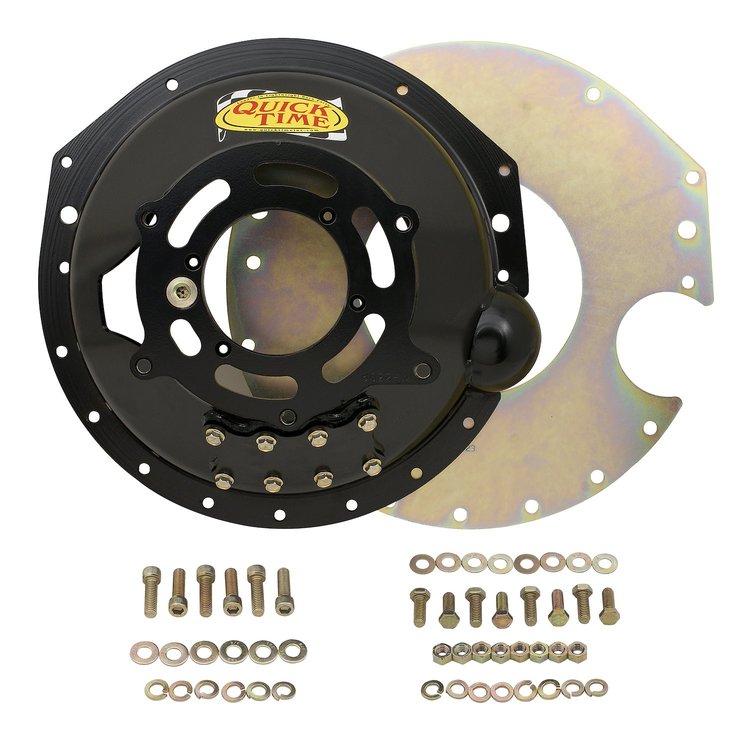

Steel Bellhousing with Access Window Engine: Small/Big Block Chevy and 1992-96 LT1
InfoVehicle Info Needed
QUICK TIME BELLHOUSINGPART NUMBER: 698-RM-6022W

Steel Bellhousing with Access Window Engine: Small/Big Block Chevy and 1992-96 LT1

$1,52895$1699.95You Save$171.00
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Chevy Small Block/Big Block
    Steel Bellhousing with Access Window
  • Engine: Small/Big Block Chevy and 1992-96 LT1
  • Transmission: Muncie, Richmond, Saginaw, Falcon, Bert, Brinn, Borg Warner T-10, Chevy TKO 500-600, Jerico 4-5 Speed
  • Flywheel: 168-Tooth
  • Clutch: 11''

  • Removable access window/clutch inspection and adjustment cover plate
  • SFI Certified 6.1
  • Height: 6.290'
  • Transmission Bore: 4.685'
  • Weight: 24 pounds
  • Includes engine plate, pivot ball, and Grade 8 bolts
  • Will work with Lenco Racing Transmission (LencoST1500)

    SFI Blowproof Safety

    SFI-certified Quick Time Bellhousings for Chevy Engines feature high-grade spun steel castings that are heat-treated to 80,000 psi for lightweight and durable strength. Made to fit various GM transmission and aftermarket cases, these patented 16-point bellhousings maximize dimensional stability and reduce drivetrain, making them ideal for street, strip, and circle track applications.

Part TypeBellhousing
Product LineQuick Time Chevy Engine Bellhousings
BrandQUICK TIME BELLHOUSING
Package Height8.3
Package Width18.8
Package Length18.8
Weight34.05 PG
Part CategoryPerformance Parts
Bellhousing Depth6.29 in (159.766 mm)
Block Plate IncludedYes
Bellhousing MaterialSteel
Adjustable Fork Pivot RecommendedNo
QuantitySold as a kit
Clutch Fork IncludedNo
Sfi-ApprovedYes
Part FitmentSemi Universal
Bellhousing Bore Diameter4.685 in (118.999 mm)
Safety RatingSFI 6.1W
Bellhousing TypeNew
Bellhousing FinishBlack
Vendor Part NumberRM-6022W
Package Qty1
Package TypeEA
