Made in USA
Low-Profile Steel Bellhousing GM LS Gen III/Gen IV and Late Model LT1/LT4
InfoVehicle Info Needed
QUICK TIME BELLHOUSINGPART NUMBER: 698-RM-8019

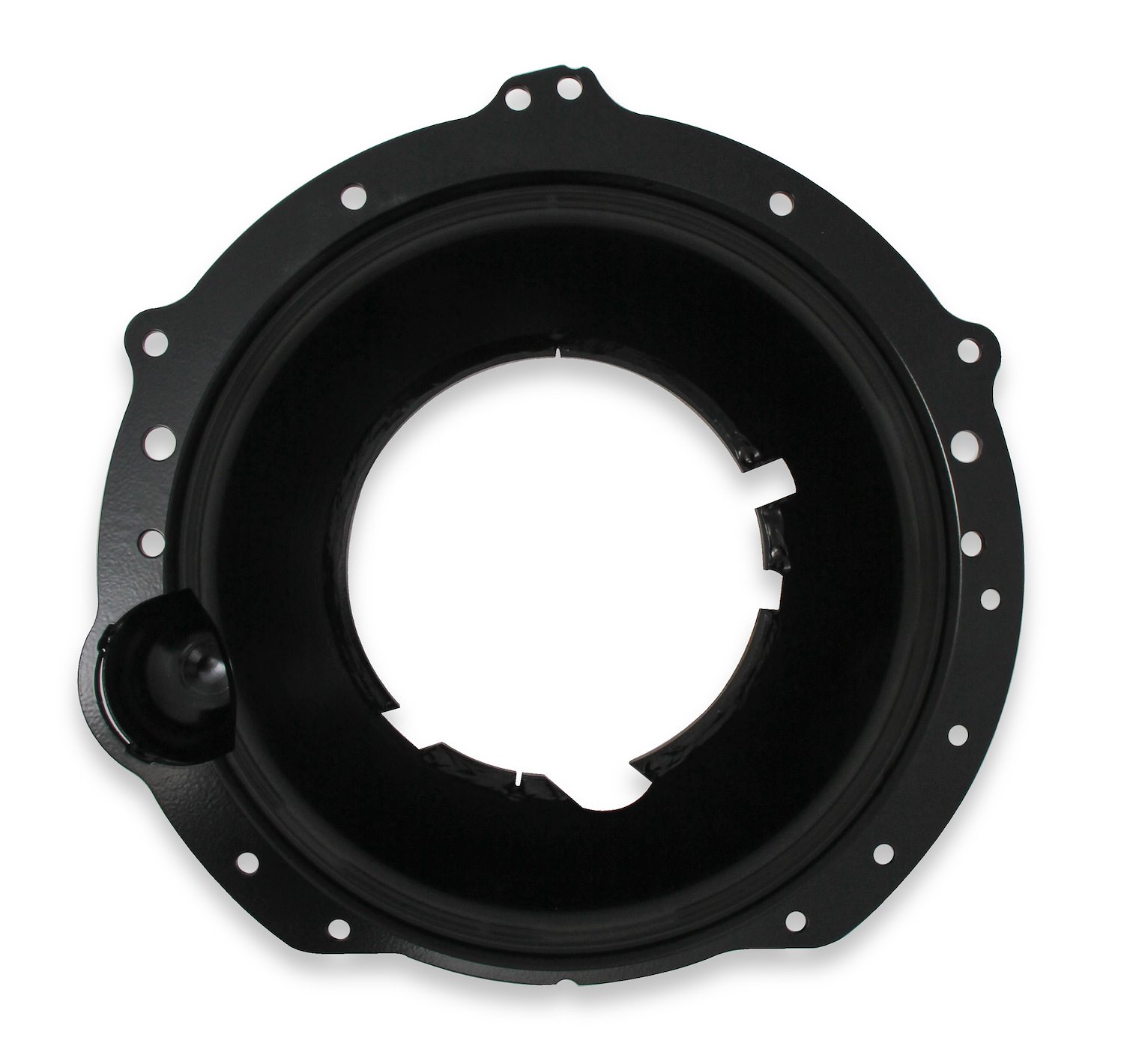

Low-Profile Steel Bellhousing GM LS Gen III/Gen IV and Late Model LT1/LT4

$97295
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

LS Series
Low-Profile Steel Bellhousing
  • GM LS Gen III/Gen IV and Late Model LT1/LT4
  • For GM T-56 and T-56 Magnum Transmissions
  • 168-Tooth Flywheel
  • Height: 5.500 in.
  • Weight: 20 lbs.
  • Black Semi-Gloss Finish
  • Non-SFI Approved

    Quick Time RM-8019

    Features:

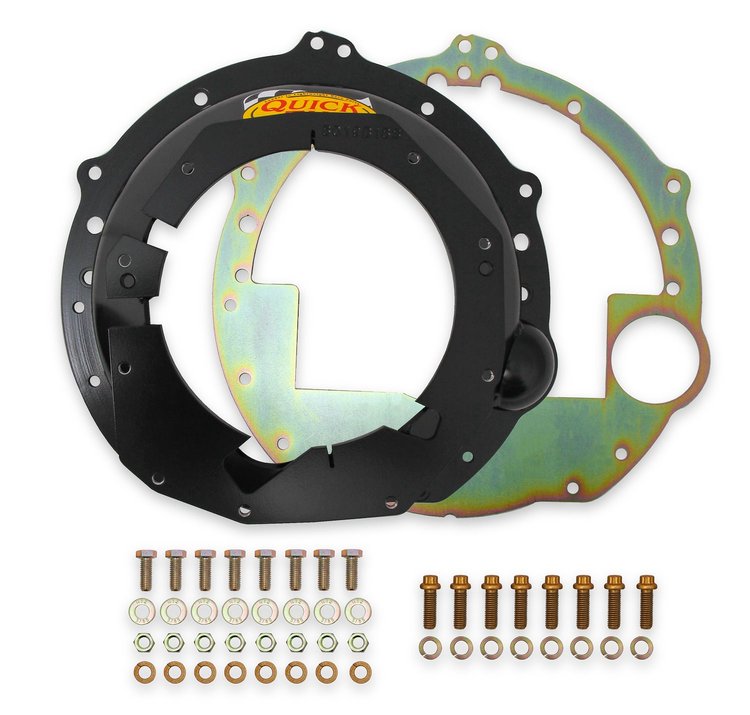

    • Includes (1) bellhousing, (1) engine block plate, and (1) mounting bolt kit
    • The bellhousing cones have a spun forming process for accurate dimensions and stability
    • Over 80,000 PSI tensile strength

    Notes:

    • Designed to use the stock factory transmission mounting bolts - transmission mounting bolts NOT included
    • For Tremec T-56 transmissions, use 698-RM-170
    • Designed for use with a factory size flywheel - do NOT reuse the factory cast iron flywheel

    Emissions: This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

  • Part TypeBellhousing
    BrandQUICK TIME BELLHOUSING
    Package Height8.0
    Package Width18.5
    Package Length18.5
    Weight30.1 PG
    Part CategoryPerformance Parts
    Transmission ModelT56
    Clutch Fork IncludedNo
    Block Plate IncludedYes
    Bellhousing MaterialSteel
    Sfi-ApprovedNo
    Clutch OperationHydraulic
    QuantitySold individually
    Part FitmentSemi Universal
    Flywheel FitmentFits 168 Tooth Flywheel
    Bellhousing FinishBlack
    Package Qty1
    Package TypeEA
