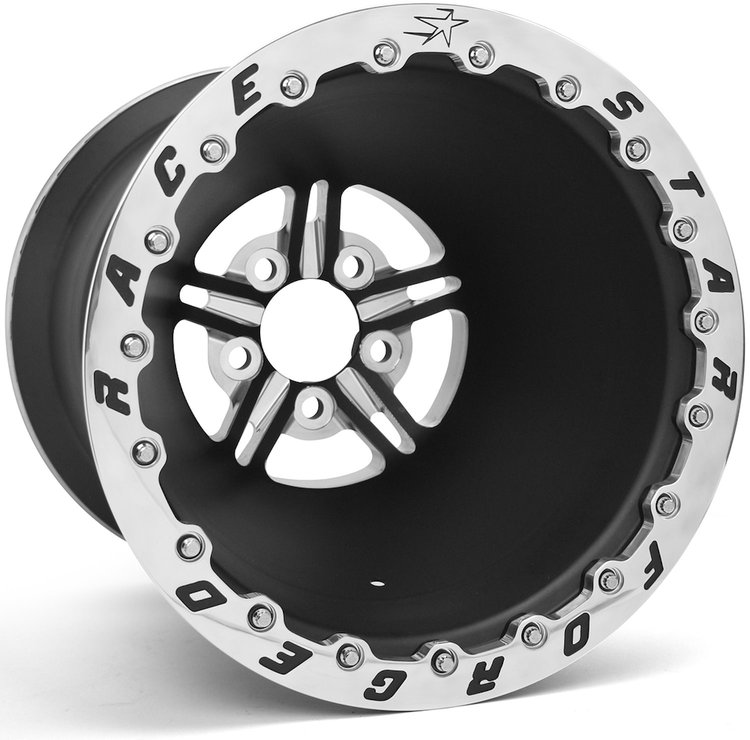

63-Series Pro Forged Single Bead-Lock Wheel Size: 15" x 10"
Product Discontinued
RACE STAR WHEELSPART NUMBER: 767-63510502011B

63-Series Pro Forged Single Bead-Lock Wheel Size: 15" x 10"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

15" x 10" Single Bead-Lock Wheels
63-Series Pro Forged Single Bead Lock Wheel
  • Size: 15" x 10"
  • Bolt Circle: 5 x 5"
  • Back Spacing: 2"
  • Offset: -89 mm
  • Finish: Black and Machined

    Features:

    • Chrome Steel Hardware for Bead Lock Ring
    • Includes One (1) Silver Bead Lock Ring
    • Bead Lock Ring uses more material than competitors to prevent flexing
    • Uses RaceStar's new RaceGrip knurled bead seat technology to prevent tire bead slip
    • 1 Piece Wheels with Fusion Welded Barrels
    • Mounts with 5/8 in. or 11/16 in. Billet Aluminum Lug Nuts and hub-centric rings (sold separately)
    • SFI 15.1 Certification
  • Stay Ahead of the Pack

    RaceStar 63-Series Pro Forged Black and Machined Finished Race Wheels are the newest addition to the RaceStar Wheel Line. With ground-breaking technology, RaceStar 63-Series Pro Forged Race Wheels utilize fusion welding to create the lightest weight bead lock wheel on the market. RaceStar's advancements in wheel manufacturing and use of 6061-T6 aircraft aluminum allows the 63-Series Pro Forged Race Wheels to be 20% lighter than the leading competitor!

    Show MoreThe innovations don't stop there! Each single-bead lock and non-bead lock 63-Series Pro Forged Race Wheel features their Race Grip knurled bead seat. This Race Star only design keeps the tire from spinning on the rim; maintaining tire balance and keeping 60' times consistent.

    RaceStar 63-Series Pro Forged Race Wheels come in a wide range sizes and backspaces from 15"x3.5" front runners to 16"x16" double-bead lock wheels. 63-Series Pro Forged Race Wheels are available for Anglia and Strange spindle mounts or 5x4.50", 4.75", 5.00", and 5.50" bolt patterns.

    Features:

    • SFI 15.1, 15.2, 15.3, or 15.4 Certified
    • Single and Non-Bead Lock Wheels Feature Race Grip Technology
    • Single-Bead Lock Wheels Include One Polished Lock Ring
    • Double-Bead Lock Wheels Include One Polished and One Black Lock Ring
    • Front Runners Include Valve Stem and Center Cap

    *NOTE* RaceStar 63-Series Pro Forged Wheels are also available in a Polished Finish.

    Part TypeWheel
    Product LineRaceStar 63-Series Pro Forged Black and Machined Finished Race Wheels
    BrandRACE STAR WHEELS
    Package Height12.0
    Package Width17.0
    Package Length17.0
    Part CategoryPerformance Parts
    Quantity1
    BeadlockSingle Beadlock
    Wheel MaterialForged Aluminum
    Wheel FinishSatin Black
    Wheel Construction1-piece
    Back Spacing2 in (50.8 mm)
    Functional BeadlockYes
    Bolt Pattern5 x 5 in.
    Hub Centric Ring CompatibleNo
    Lug Nut Shank Diameter0.685 in.
    Beadlock IncludedYes
    Backspacing2 in.
    Beadlock FunctionalYes
    Lug Nut Shank Length0.5 In.
    Lug Nut Shank Length (In.)0.5
    Small Diameter Lug Nuts RequiredNo
    Center Bore Diameter3.07 in.
    Manufacturers Wheel SeriesRaceStar 63-Series Pro Forged Black
    Wheel Bolt Pattern5 x 5 (127 mm)
    Wheel Diameter15 in.
    Lug Nut Shank Diameter (In.)0.685
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Wheel Width10 in.
    Vendor Part Number63-510502011B
    Package Qty1
    Package TypeEA
