Vehicle Info NeededRACE STAR WHEELSPART NUMBER: 767-63616555033B

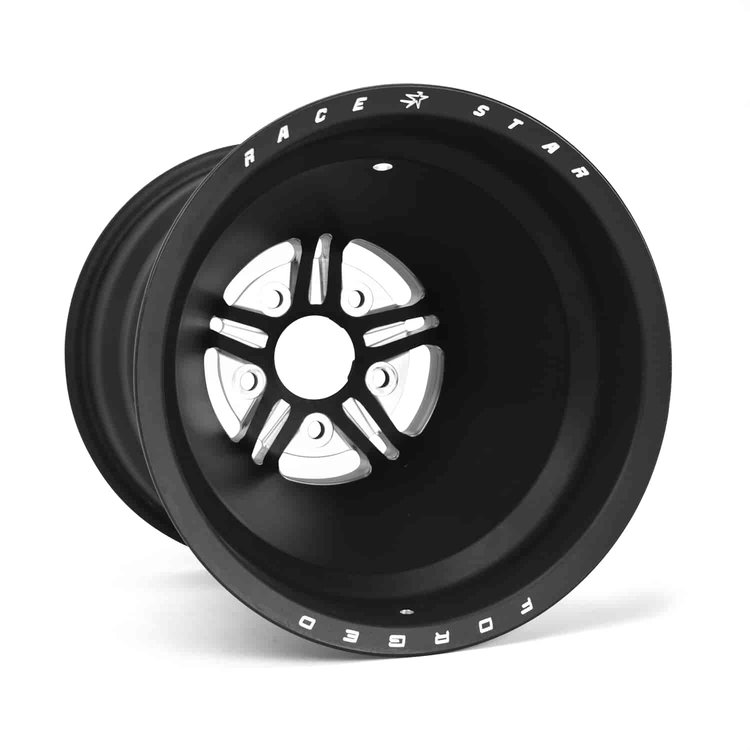

63-Series Pro Forged Liner Wheel Size: 16" x 16"
$1,39999
Ships on 09/17/2026
Lowest Price Guarantee16" x 16" Forged Liner Wheels
63-Series Pro Forged Liner WheelSize: 16" x 16" Bolt Circle: 5 x 5.50" Back Spacing: 5" Offset: -89 mm Finish: Black and Machined
Features:
- Designed for use with Drag Tire Liners
- 1 Piece Wheels with Fusion Welded Barrels
- Mounts with 5/8 in. or 11/16 in. Billet Aluminum Lug Nuts and hub-centric rings (sold separately)
- SFI 15.3 Certification
Part TypeWheel
BrandRACE STAR WHEELS
Package Height18.0
Package Width18.0
Package Length18.0
Part CategoryPerformance Parts
Quantity1
BeadlockNon-Beadlock
Wheel MaterialForged Aluminum
Wheel FinishSatin Black
Wheel Construction1-piece
Back Spacing5 in (127 mm)
Bolt Pattern5 x 5.5 in.
Hub Centric Ring CompatibleNo
Lug Nut Shank Diameter0.685 in.
Backspacing5 in.
Lug Nut Shank Length0.5 In.
Lug Nut Shank Length (In.)0.5
Small Diameter Lug Nuts RequiredNo
Center Bore Diameter3.07 in.
Manufacturers Wheel SeriesRaceStar 63-Series Pro Forged Black
Wheel Bolt Pattern5 x 5 1/2 (139.7 mm)
Wheel Diameter16 in.
Lug Nut Shank Diameter (In.)0.685
Wheel TypeDrag Race Wheels
Part FitmentUniversal
Wheel Width16 in.
Vendor Part Number63-616555033B
Package Qty1
Package TypeEA
