Vehicle Info NeededRACE STAR WHEELSPART NUMBER: 767-92-770247BZ

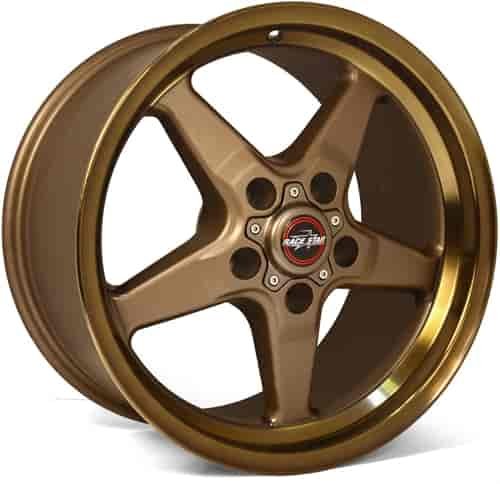

92 Series Drag Star Wheel Size: 17" x 7"
$29248
Ships Tomorrow
Lowest Price Guarantee17" x 7"
- 92 Series Drag Star Wheel
- Size: 17" x 7"
- Bolt Circle: 5 x 120 mm
- Back Spacing: 4.250"
- Offset: -6.4 mm
- Finish: Bronze
Part TypeWheel
BrandRACE STAR WHEELS
Package Height9.25
Package Width19.5
Package Length19.5
Weight25.31 PG
Part CategoryPerformance Parts
Load Rating (Lbs.)1,580
ColorBronze
Quantity1
Wheel FinishBronze
Wheel MaterialCast Aluminum
Back Spacing4.25 in (107.95 mm)
Bolt Pattern5 x 120 mm
Offset0.252 in.
Hub Centric Ring CompatibleYes
Lug Nut Shank Diameter0.74 In.
Backspacing4.25 in.
Lug Nut Shank Length (In.)1.38
Lug Nut Shank Length1.38 in.
Small Diameter Lug Nuts RequiredNo
Wheel Bolt Pattern5 x 120 mm
Center Bore Diameter3.07 in.
Load Rating1580 lbs.
Wheel Offset6.4 mm (.252 in)
Lug Nut Shank Diameter (In.)0.74
Wheel Diameter17 in.
Wheel TypeCar Street, Strip Wheels
Part FitmentUniversal
Wheel Width7 in.
Vendor Part Number92-770247BZ
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
