Vehicle Info NeededRACE STAR WHEELSPART NUMBER: 767-92-795253BZ

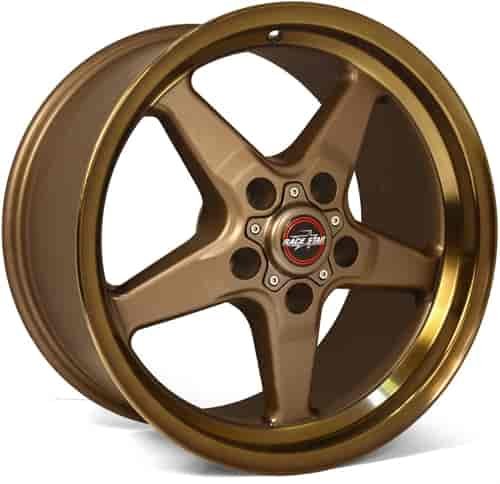

92 Series Drag Star Wheel Size: 17" x 9.5"
Color:
$30598
Ships Tomorrow
Lowest Price Guarantee17" x 9.5"
- 92 Series Drag Star Wheel
- Size: 17" x 9.5"
- Bolt Circle: 5 x 4.75"
- Back Spacing: 6.875"
- Offset: +41 mm
- Finish: Bronze
- Center Cap Included
| Required Lug Nuts for 92 Series Drag Star Direct Drill, Bead Lock and Corvette Wheels |
 |
| 1-3/8'' Long Mag Shank |
RaceStar 92 Drag Star Bronze wheels offer many of the features needed for high-performance cars. RaceStar wheels feature large brake clearances and direct-drilled bolt patterns to make finding the right wheels easy. RaceStar Industries Drag Star wheels are a very strong, lightweight alloy that is perfect for your street or strip vehicle. The 92 Star design shows RaceStar's commitment to true street and dragstrip performance by offering lightweight, cutting edge looks at an affordable price with true direct fit applications.
Show More
Features
- Strong yet Lightweight Cast Aluminum Construction
- Bronze Finish
- Direct Drilled Bolt Patterns
RaceStar 92 Series Drag Star Wheels are also available in Dark Star, Gloss Black, and Metallic Grey Finishes.
Part TypeWheel
Product LineRaceStar 92 Series Drag Star Bronze Wheels
BrandRACE STAR WHEELS
Package Height11.5
Package Width19.0
Package Length19.0
Weight26.2 PG
Part CategoryPerformance Parts
Load Rating (Lbs.)1,580
ColorBronze
Quantity1
Wheel FinishBronze
Wheel MaterialCast Aluminum
Back Spacing6.875 in (174.625 mm)
Bolt Pattern5 X 4.75 in.
Offset1.614 in.
Hub Centric Ring CompatibleYes
Lug Nut Shank Diameter0.74 In.
Backspacing6.875 in.
Lug Nut Shank Length (In.)1.38
Lug Nut Shank Length1.38 in.
Small Diameter Lug Nuts RequiredNo
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Center Bore Diameter3.07 in.
Load Rating1580 lbs.
Wheel Offset41 mm (1.6142 in)
Lug Nut Shank Diameter (In.)0.74
Wheel Diameter17 in.
Wheel TypeCar Street, Strip Wheels
Part FitmentUniversal
Wheel Width9.5 In.
Vendor Part Number92-795253BZ
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
