Made in USA

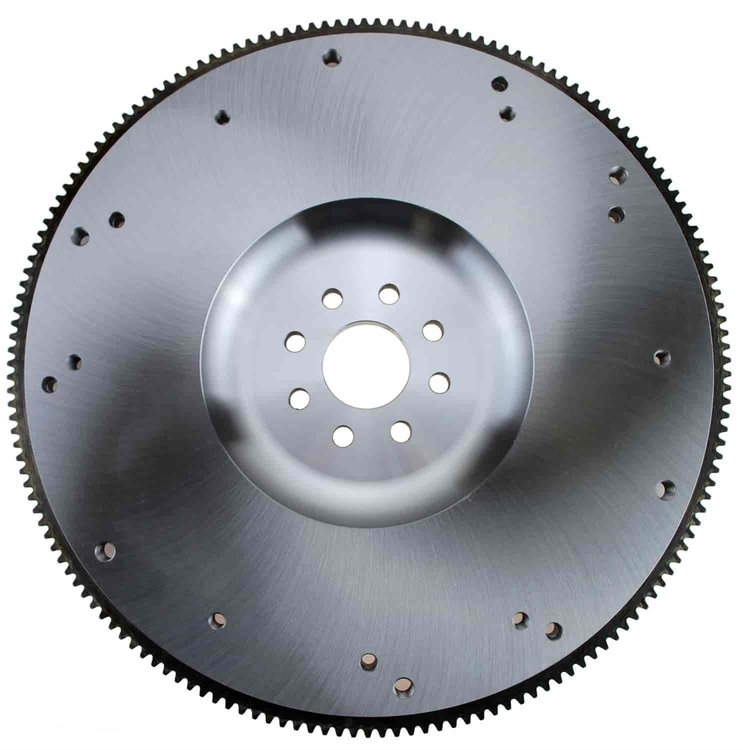

Lightweight Steel Flywheel for Ford Modular Engines [8-Bolt Crank, Zero Balance]
InfoVehicle Info Needed
RAM CLUTCHESPART NUMBER: 798-1545LW

Lightweight Steel Flywheel for Ford Modular Engines [8-Bolt Crank, Zero Balance]

$26460$294.00You Save$29.40
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ford - Steel Flywheel
Lightweight Steel Flywheel
  • Ford Modular V8 Engines
  • 8-Bolt Crank Pattern
  • Zero Balance, 164-Tooth Ring Gear
  • Sold Individually


  • Sized for the 8-bolt crank pattern on Ford modular V8 engines, this lightweight steel flywheel is a common choice for modular engine swap projects that need a zero-balance flywheel.

    Ford Modular Flywheel Specifications:

    • Fits Ford modular V8 engines with 8-bolt crank
    • Zero balance
    • 164-tooth ring gear
    • Serviceable ring gear
    • Meets SFI 1.1 specifications
    • Sold individually

      SFI-Approved Billet Steel Flywheels

      All billet flywheels are NOT created equal! Every RAM True Balance flywheel is turned, drilled, and tapped on CNC equipment from SFI-certified billet steel. Each flywheel is precision ground parallel to the crank flange and to the proper RMS finish for optimum mating of the friction disc. If operating in high-performance, high-RPM applications, a billet steel flywheel is recommended over factory cast flywheels, cutting down on rotating weight and further increasing driveability.

    Part TypeFlywheel
    Product LineRAM True Balance Billet Steel Flywheels
    BrandRAM CLUTCHES
    Package Height1.5
    Package Width14.5
    Package Length14.5
    Weight20.0 PG
    Part CategoryPerformance Parts
    Flywheel Diameter14.24 in (361.696 mm)
    Tooth Quantity164
    MaterialSteel
    Part FitmentSemi Universal
    Engine BalanceZero
    Package Qty1
    Package TypeEA
