Vehicle Info NeededRAM CLUTCHESPART NUMBER: 798-80-2120N

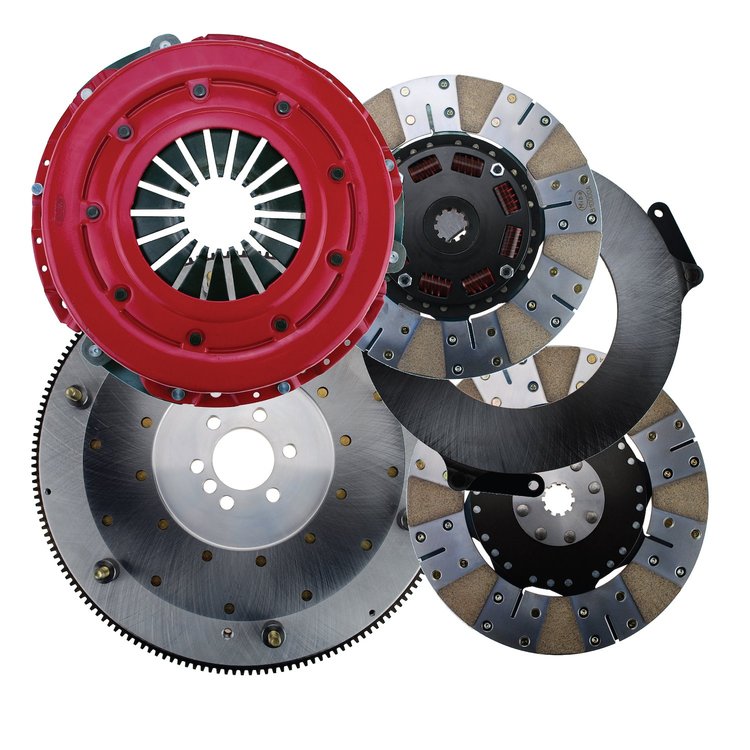

Force 10.5N Dual Disc Clutch System 1955-85 Small Block & Big Block Chevy
$1,68500
Ships Tomorrow
Lowest Price GuaranteeChevrolet
900-Series Clutch Disc
900-Series Clutch Disc
- Force 10.5N Dual Disc Clutch System
- 1955-85 Small Block & Big Block Chevy
- 10-1/2'' Diameter
- 1-1/8''-10 Spline
- 168-Tooth Ring Gear
- '0' Internal Balance
- 900-Series Disc
The RAM Force 10.5 has a strap driven floater plate for completely quiet operation and works well for high horsepower street only cars and trucks. Featuring 900 series friction material rated at 1300 ft/lbs holding capacity. 900 Series clutches provide extremely high coefficients of friction with minimal chatter and reduced static pressures. This type of material is engineered to provide a limited amount of 'slip' on engagement that allows the clutch to engage without overpowering the tires. All 900 Series discs use the high strength eight spring hub and Poly-coil springs for extreme dampening capabilities. This clutch disc is recommended for severe duty street and strip applications where driveability is not the highest concern.Note: Use hydraulic throw-out bearing p/n 798-78125
Part TypeClutch Kit
BrandRAM CLUTCHES
Package Height5.0
Package Width14.0
Package Length15.0
Weight46.0 PG
Part CategoryPerformance Parts
Disc Style1 sprung hub, 1 unsprung hub
Pressure Plate Static Pressure (Lbs.)2,400
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedNo
Counterweight AssistNo
Flywheel IncludedYes
Pilot Bushing IncludedNo
Flywheel MaterialBillet aluminum
Disc Diameter (Mm)267
Input Spline Quantity10 in (254 mm)
Disc Diameter10.5 in (266.7 mm)
Input Shaft Diameter1.125 in (28.575 mm)
Disc MaterialSintered metallic
Part FitmentSemi Universal
Alignment Tool IncludedNo
Vendor Part Number80-2120N
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
