This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
900-Series Clutch Disc

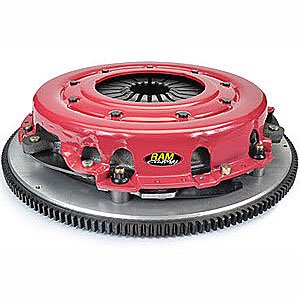

- RTrack 10.5 Dual Disc Clutch System
- GM LS1/LS2/LS3/LS6/LS7
- 10-1/2'' Diameter
- 1-1/8''-26 Spline
- 900-Series Disc
The RAM RTrack 10.5 has a stand driven floater plate provides ultimate holding power and durability for high horsepower street only cars and trucks. Featuring 900 series friction material rated at 1300 ft/lbs holding capacity. 900 Series clutches provide extremely high coefficients of friction with minimal chatter and reduced static pressures. This type of material is engineered to provide a limited amount of 'slip' on engagement that allows the clutch to engage without overpowering the tires. All 900 Series discs use the high-strength eight spring hub and poly-coil springs for extreme dampening capability. This clutch disc is recommended for severe-duty street and strip applications where drivability is not the highest concern.
Applications & Installation Notes: - Fits Corvette 1997-2012 (2011-up ZR-1, use clutch system p/n 798-75-2115); Camaro/Firebird 1998-2002; Camaro 2010-12; GTO 2004-07; Cadillac CTS-V 2005-11 (Replacing dual mass flywheel requires .500' bearing spacer p/n 798-78511. Replacement input shaft required when replacing dual mass flywheel.)
- Camaro 2010-12 use RAM hydraulic throw-out bearing p/n 798-78180
- Camaro/Firebird 1998-02 use RAM hydraulic throw-out bearing p/n 798-78165
- Corvette 2005-2012 use RAM hydraulic throw-out bearing p/n 798-78170
- Corvette 1997-2004 use RAM hydraulic throw-out bearing p/n 798-78165
- GTO 2004-07 use RAM hydraulic throw-out bearing p/n 798-78180
RAM Clutch systems for GM LS performance cars offer several alternatives for the proper blend of performance and drivability for your application.
HDX Clutches
Looking for the perfect next-step upgrade for your clutch system? HDX Clutch sets offer a nice increase in holding power up to 450 ft/lbs while retaining an organic friction material for chatter-free engagement. If you are doing a restoration or just need a little better clutch system than stock, HDX sets get the job done.
Show More
Powergrip and Powergrip HD Clutches
For the ultimate in single disc clutch sets, Powergrip clutches provide increased clamp loads and holding power without significant changes in driveability. Powergrip sets utilize dual sided 900/300 series facing materials for a blend of driveability and holding power up to 550 ft/lbs. For applications up to 650 ft/lbs, Powergrip HD adds a full 900 series disc that should only be used on a billet steel or aluminum flywheel. You may experience some chatter at low RPM with Powergrip HD clutches in vehicles with higher (lower numerically) rear gearing. For best performance and safety, match up your Powergrip set with a RAM billet steel or aluminum flywheel.
Force 9.5 and Force 10.5 Dual Disc Clutch Systems
A dual disc clutch is not just for high horsepower applications. The beauty of a dual disc is that you get great holding power with a smooth engagement and lower pedal effort.
RAM's Force 9.5 is the ideal entry level dual disc clutch for street use. With a torque capacity of roughly 800 ft/lbs and moderate clamp pressure, these clutches handle small blower or turbo applications and provide a light pedal effort similar to the stock clutch (RAM test drivers couldn't tell the stock clutch was changed). The floater plate is driven from 3 sets of straps to eliminate rattle at idle; the top clutch disc has a sprung hub assembly to absorb the clutch's initial engagement and reduce chatter.
Based on the original RAM Street Dual design, the Force 10.5 is more street-friendly with a 3-strap system to locate the floater plate and stop the floater plate rattle that's common to stand-driven dual disc clutches. A high clamp load pressure plate ensures enough holding power to manage about 1100 ft/lbs of torque without excessive pedal pressure. There are two disc series: 300 and 900. The steel-faced 300 Series offers smooth engagement & long service life. The metallic-faced 900 Series is for torque load to about 1300 ft/lbs so expect some floater plate noise at idle. Ideal for larger blower or turbo setups, Force 10.5 Clutches handle more torque & weigh slightly more than their smaller counterparts. This greater inertia translates into better low-speed drivability for heavier vehicles or those with large camshaft profiles. Additionally, starting with a RAM dual disc clutch will keep you from doing continuous clutch upgrades as you add modifications to your vehicle. Includes RAM billet flywheel.
RTrack 10.5 Dual Disc Clutch Systems
The RTrack Dual is modeled after RAM's highly successful drag racing clutches used in Pro Stock and Pro Mod vehicles. The major difference between these clutches and the Force 10.5 is the floater drive system. RTrack employs a stand-driven floater plate to provide greater torque capacity and negative load for vehicles that see a lot of track time. A 2400-pound clamp load pressure plate produces good holding power without excessive pedal effort. There are two disc series: 300 and 900. The 300 Series has a sprung hub top disc and solid hub bottom disc for smooth engagement. The 900 Series is for higher torque load up to about 1300 ft/lbs so expect some floater plate noise at idle. Includes RAM billet flywheel.
