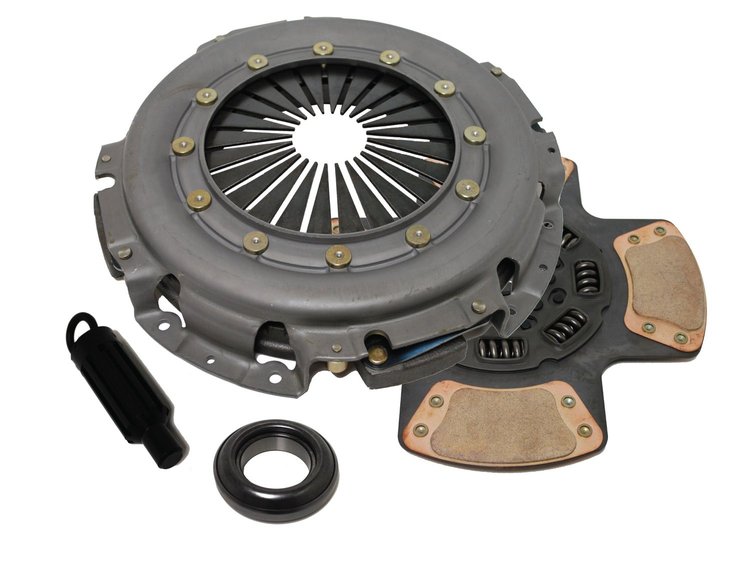

Powergrip HD Clutch Kit Dodge Diesel Truck 5.9L 2001-04 6-Speed
Product Discontinued
RAM CLUTCHESPART NUMBER: 798-98947HD

Powergrip HD Clutch Kit Dodge Diesel Truck 5.9L 2001-04 6-Speed

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler/Dodge/Plymouth
    Powergrip HD Clutch Kit
  • Dodge Diesel Truck 5.9L 2001-04 6-Speed
  • 13" Diameter
  • 1-3/8" x 10-Spline

  • True Strip/Street Competition Clutch System To The 650 HP Level
  • 8 Spring Hum Is Equipped w/Ram Polycoil Damper Springs
  • Sintered metallic Friction Material
  • For Vehicles That See Frequent Track Duty
  • Meets SFI Specifications
  • Incl. Pressure Plate/Disc/Release Bearing/Alignment Tool

    STREET & COMPETITION PERFORMANCE UP TO 650 HORSEPOWER!
    Powergrip HD is a true street/strip competition clutch that can survive spirited street driving and roaring race weekends. The main difference between the HD and standard Powergrip is disc surface; both HD friction surfaces are sintered iron. Sintered iron provides enough slippage on launch to prevent the violent, uncontrollable engagement characteristics of metallic paddle-type discs.

    Show More

    Such firm, consistent engagement is easy to control yet expect some chatter from street applications with rear gearing under 3.73. The 8-spring hub features RAM poly-coil damper springs encased in polyurethane for greater load capacity and extended hub life. Units can handle three times the shock load of just the coil spring (standard in all RAM Competition Discs). Kits include disc, pressure plate, alignment tool, and release bearing unless otherwise noted.

Part TypeClutch Kit
Product LineRAM Powergrip HD Performance Clutch Kits
BrandRAM CLUTCHES
Package Height5.0
Package Width15.0
Package Length15.0
Weight42.0 PG
Part CategoryPerformance Parts
Disc StyleSprung Hub
Pressure Plate Static Pressure (Lbs.)3,300
Pressure Plate StyleDiaphragm
Throwout Bearing StyleStandard
Throwout Bearing IncludedYes
QuantitySold as a kit
Mounting Hardware IncludedNo
Counterweight AssistNo
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)330
Input Spline Quantity10 in (254 mm)
Disc Diameter13 in (330.2 mm)
Input Shaft Diameter1.375 in (34.925 mm)
Disc MaterialMetallic
Part FitmentDirect Fit
Alignment Tool IncludedYes
Vendor Part Number98947HD
Package Qty1
Package TypeEA
