Vehicle Info NeededREID RACINGPART NUMBER: 789-SH400DRAG

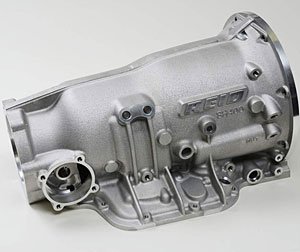

Super Hydra 400 Case SFI Drag/Street
$2,14900
1 left in stock
Ships Tomorrow
Lowest Price Guarantee
Super Hydra 400 Transmission Case Drag/Street Version
- Super Hydra 400 Transmission Case SFI
- Drag/Street version
The Reid Racing Super Hydra 400 Transmission Case is designed as a direct replacement for the GM TH400 transmission case while correcting all of the weak points and including additional features. An incredibly expensive permanent mold casting technique has been employed to increase the case wall thickness allowing this unit to be extremely strong, accurate, porosity-free castings that are SFI 4.1 certified without the need for an external shield or blanket. The modular two-piece design allows this case to be used with all popular engines by simply changing bolt-on Superglide bellhousings!
Show More
Features:
- Uses Reid Racing's full line of SFI 30.1 bellhousings for all popular engine families
- Full 360° internal case "lugs" that retain the center support and pressure plate
- Speedometer and Governor provisions
- Improved billet pressure plate
- Oversize snap ring
- Longer band anchor pins captured by oversize bosses
- Numerous strengthening features address problem areas in the GM case
- Additional dipstick hole on driver's side
- Multiple external pressure taps allow monitoring of circuit pressures
- Accepts all style oil pumps including 8 bolt and vari-pitch designs
- Bellhousing and oil pump threads are heli-coiled
- Machined for standard NPT fittings
- Pre-machined to fit larger custom planetary gear carriers
Part TypeAutomatic Transmission Case
Product LineReid Racing Super Hydra 400 Transmission Case
BrandREID RACING
Package Height12.1
Package Width16.4
Package Length21.7
Weight35.58 PG
Part CategoryPerformance Parts
Flexplate Shield Built InNo
Transmission Shield RatingSFI 4.1
Adjustable Trans-Brake ReleaseNo
QuantitySold individually
Part FitmentSemi Universal
Transmission Case FinishNatural
Case MaterialAluminum
Transmission Shield Built InNo
Vendor Part NumberSH400DRAG
Package Qty1
Package TypeEA
