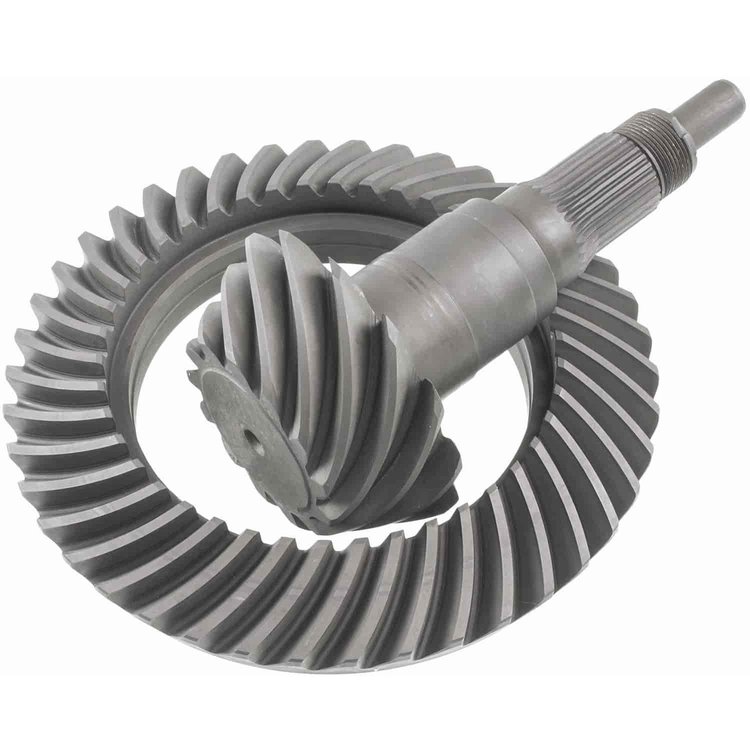

Chrysler H215Pinion Diameter: 1.915" 30 Spline
- Chrysler Ring & Pinion Gear Set
- Ratio: 3.23
- Teeth: 42-13
- 2005-10 Dodge Charger, Magnum SRT-8 and Chrysler 300C
Part TypeRing and Pinion
BrandRICHMOND GEAR
Package Height5.5
Package Width11.2
Package Length15.4
Weight16.3 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity42
QuantitySold as a set
Cover Bolt Quantity10
Pinion Spline Count30
Ring Gear Material8620 Steel
Ring Gear Diameter8.5 in (215.9 mm)
Ring And Pinion Ratio3.23:1
Pinion Shaft Diameter1.9 in (48.3 mm)
Installation Kit IncludedNo
Pinion Gear Tooth Quantity13
Ring Gear Bolts12
Cover Bolts8
Ring Gear Bolt Quantity12
Part FitmentSemi Universal
Vendor Part Number49-0153-1
Package Qty1
Package TypeEA
