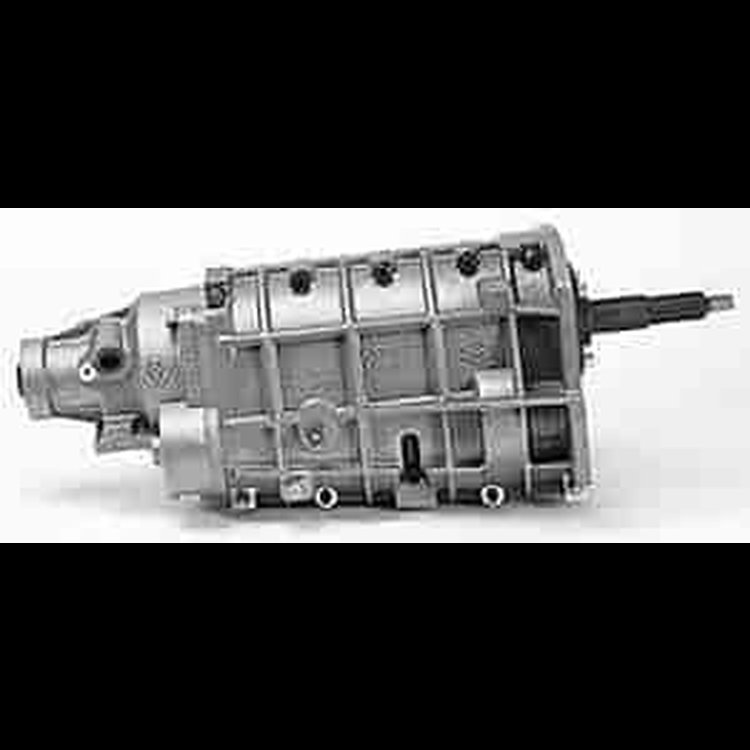

5-Speed Road Race Transmission Bundle GM 10 Spline A Ratio Incl. Transmission/1330 Yoke/Shifter

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Designed For The Needs Of The Road Racer
Made In The USA
CNC Machined And Heat Treated
NASCAR Proven Technology
Steel Billet Front Bearing Retainer For Strength
Tremendous Torque Multiplication
Fully Synchronized For Smooth Shifting

Part TypeManual Transmission

BrandRICHMOND GEAR

Package Height16.5

Package Width17.0

Package Length35.0

Part CategoryPerformance Parts

Fourth Gear Ratio1.24:1

Fifth Gear Ratio1.00:1

Yoke IncludedYes

Number Of GearsFive

Second Gear Ratio2.13:1

Trans YearOEM

QuantitySold individually

Yoke StyleSlip On

Output Shaft Spline Diameter1.375 in (34.9 mm)

Shifter Style RequiredLong

Tailshaft Length7.5 in (190.5 mm)

First Gear Ratio3.28:1

Trans ModelRichmond 5 Speed

Input Shaft Diameter1.125 in (28.575 mm)

Shifter IncludedYes

Case MaterialAluminum

Third Gear Ratio1.57:1

Bellhousing IncludedNo

Vendor Part Number52111AL3

Package Qty1

Package TypeEA
