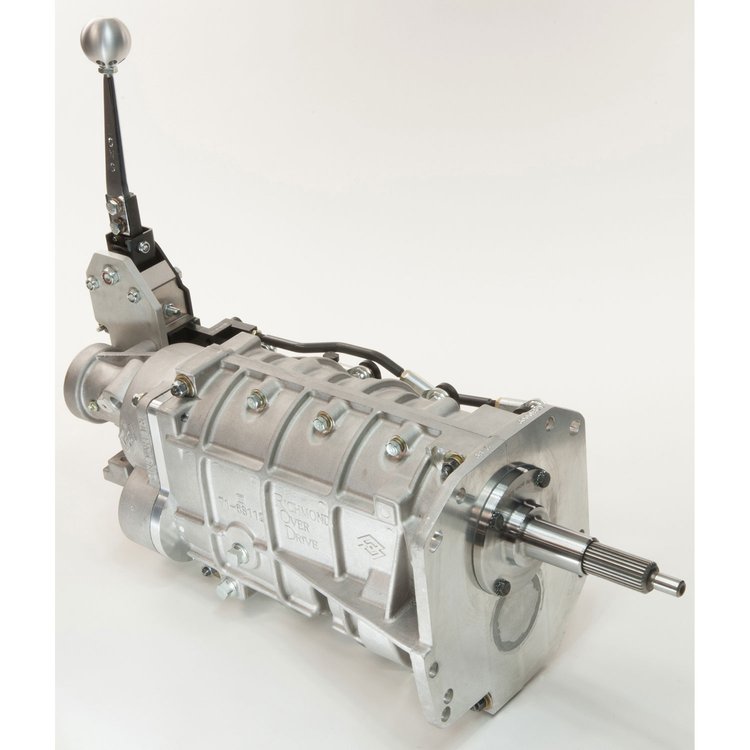

Super Street 5-Speed Transmission with Overdrive GM
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-7020526C

Super Street 5-Speed Transmission with Overdrive GM

$4,26774
Truck Freight
ShippingShips on 12/04/2026
Lowest PriceLowest Price Guarantee

Items You Need

Synthetic Gear Oil 75W90NS GL-5

RED LINE OIL

Synthetic Gear Oil 75W90NS GL-5

Part Number : 816-58304
$2549
Slip Yoke 1310 Series Super T-10

RICHMOND GEAR

Slip Yoke 1310 Series Super T-10

Part Number : 836-SY1310
$12599

Super Street 5-Speed Transmissions with Overdrive
  • GM
    • Super Street 5-Speed Transmission with Overdrive
    • GM
    • 1st to 5th: 3.06, 1.85, 1.31, 1.00, .77
    • Input Shaft: 1-1/8" 26-Spline
    • Output Shaft: 1-3/8" 32-Spline

      Richmond Transmission Warranty

    • Capable Of Managing 600 ft. lbs. Of Torque
    • Made In The USA

      The Richmond Super Street 5-Speed Transmission with Overdrive is the newest addition to the Richmond line of bulletproof transmissions. The Super Street is fully rated at 600 ft/lbs of torque to confidently handle the demands of street performance, hot rods, muscle cars, racing, and other high-performance applications.

      Show More

      Based on successful Richmond NASCAR-type technology, the Super Street is made in the USA by skilled craftsmen using the best CNC machining, gear cutting, and race-proven in-house heat treatment. The transmission is built upon Richmond's dependable manual housing, and the design allows for more robust gears & components to provide the torque-handling capacity higher horsepower cars require. Developed to fit popular GM, and Ford applications, the Super Street Transmission includes a long shifter for the ultimate in shift performance and durability. For enthusiasts who compete: "Winners Run Richmond!"

    Part TypeManual Transmission
    Product LineRichmond Super Street 5-Speed Transmissions with Overdrive
    BrandRICHMOND GEAR
    Package Height16.0
    Package Width16.25
    Package Length35.0
    Weight130.0 PG
    Part CategoryPerformance Parts
    Fourth Gear Ratio1.00:1
    Fifth Gear Ratio0.77:1
    Yoke IncludedNo
    Number Of GearsFive
    Second Gear Ratio1.85:1
    Trans YearOEM
    QuantitySold individually
    Yoke StyleSlip On
    Output Shaft Spline Diameter1.375 in (34.9 mm)
    Shifter Style RequiredLong
    Transmission ModelRichmond Super Street 5-Speed
    First Gear Ratio3.06:1
    Input Spline Quantity26 in (660.4 mm)
    Trans ModelRichmond 5 Speed
    Gear Ratio3.06
    Input Shaft Diameter1.125 in (28.575 mm)
    Part FitmentSemi Universal
    Shifter IncludedYes
    Case MaterialAluminum
    Third Gear Ratio1.31:1
    Output Shaft Spline Quantity32
    Input Shaft Spline Quantity26
    Bellhousing IncludedNo
    Vendor Part Number7020526C
    Package Qty1
    Package TypeEA
