Product Discontinued
RICHMOND GEARPART NUMBER: 836-7050526B

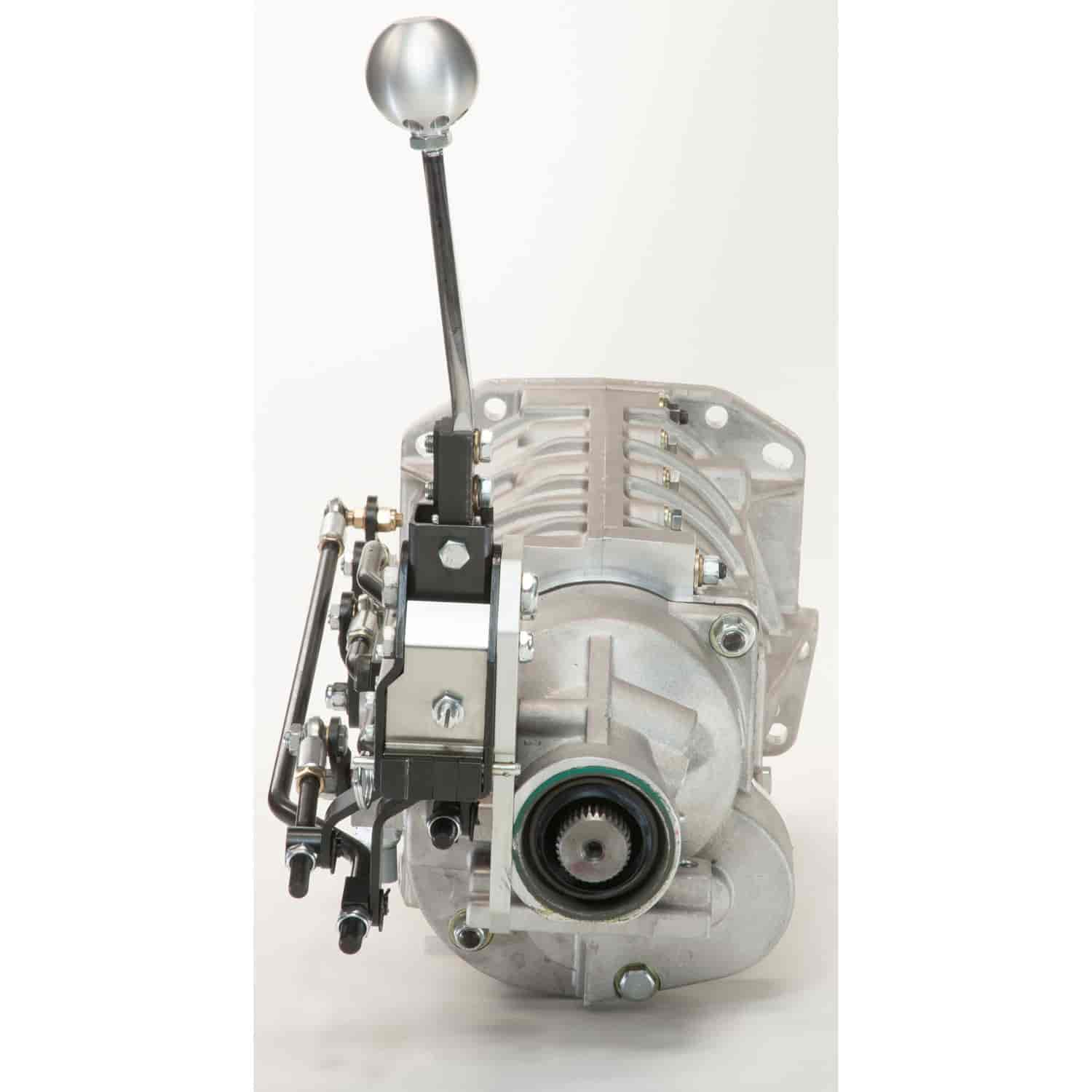

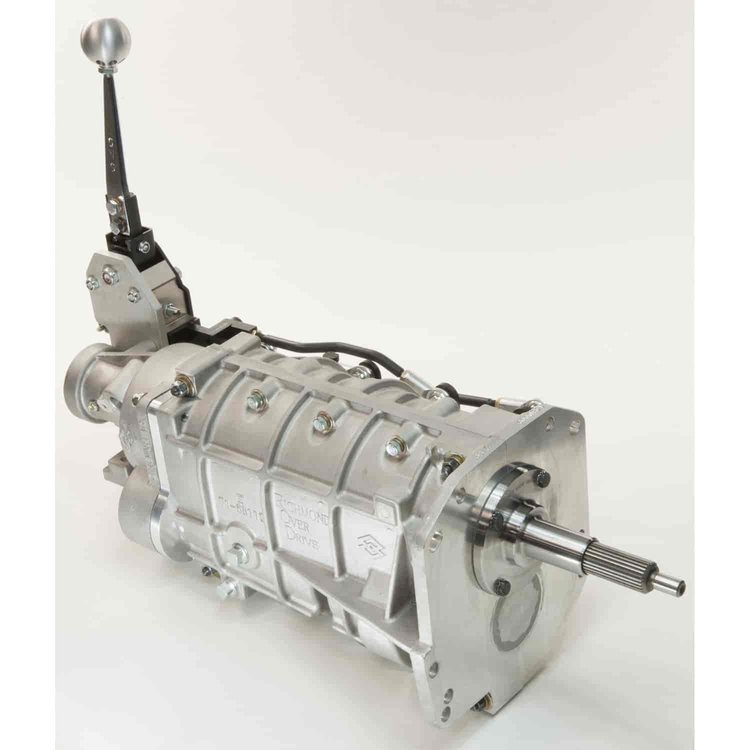

Super Street 5-Speed Transmission with Overdrive GM F-Body T-5
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Super Street 5-Speed Transmissions with OverdriveGM
- Super Street 5-Speed Transmission with Overdrive
- GM F-Body T-5
- 1st to 5th: 2.89, 1.85, 1.31, 1.00, .77
- Input Shaft: 1-1/8" 26-Spline
- Output Shaft: 1-3/8" 32-Spline
Crossmember, speedometer cable extension, and special shifter for torque arm hookup included
Part TypeManual Transmission
BrandRICHMOND GEAR
Package Height16.0
Package Width16.75
Package Length35.0
Weight150.0 PG
Part CategoryPerformance Parts
Fourth Gear Ratio1.00:1
Fifth Gear Ratio0.77:1
Yoke IncludedNo
Number Of GearsFive
Second Gear Ratio1.85:1
Trans YearOEM
QuantitySold individually
Yoke StyleSlip On
Output Shaft Spline Diameter1.375 in (34.9 mm)
Shifter Style RequiredLong
First Gear Ratio2.89:1
Input Spline Quantity26 in (660.4 mm)
Trans ModelRichmond 5 Speed
Input Shaft Diameter1.125 in (28.575 mm)
Shifter IncludedYes
Case MaterialAluminum
Third Gear Ratio1.31:1
Output Shaft Spline Quantity32
Bellhousing IncludedNo
Vendor Part Number7050526B
Package Qty1
Package TypeEA
