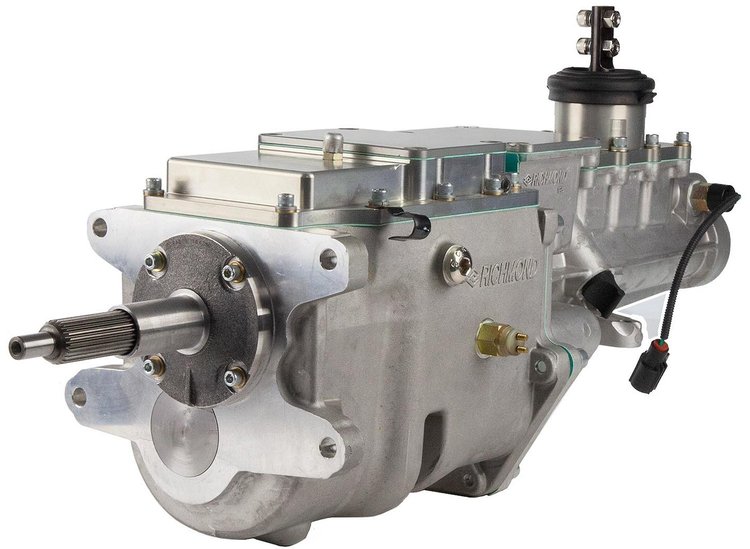

RGI-5 Manual Transmission GM Case Bolt Pattern, Dual-Position Short-Throw Shifter - 0.64 Overdrive (5th) Gear Ratio
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-R502064A

RGI-5 Manual Transmission GM Case Bolt Pattern, Dual-Position Short-Throw Shifter - 0.64 Overdrive (5th) Gear Ratio

$3,35298
Truck Freight
1 left in stock
ShippingShips Tomorrow
ShippingFree shippingLowest PriceLowest Price Guarantee

Items You Need

75W-90 Multi-Purpose Synthetic Gear Oil [1 Quart]

JEGS

75W-90 Multi-Purpose Synthetic Gear Oil [1 Quart]

Part Number : 555-28050
$1299$14.99
You Save$2.00
Brake and Parts Cleaner [14 oz. Aerosol Can]

JEGS

Brake and Parts Cleaner [14 oz. Aerosol Can]

Part Number : 555-72312
$699$7.99
You Save$1.00
2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$19599$269.99
You Save$74.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$6479$89.99
You Save$25.20

GM Bolt Pattern
RGI-5 Manual Transmission
  • GM Case Bolt Pattern
  • 26-Spline Input Shaft
  • 31-Spline Output Shaft
  • Dual-Position Billet Aluminum Short-Throw Shifter
  • 600 ft.-lbs. TQ Rated
  • 0.64 Overdrive (5th) Gear Ratio
  • Sold Individually

    Dimensions for RGI-5 Manual Transmission with GM Bolt Pattern

    R502064A Features:

    • A compact aluminum main case for maximum transmission tunnel clearance
    • Dual-position shifter location to suit application needs
    • Three rail-shift internal design with steel shift forks for solid and positive shifting
    • Billet aluminum top transmission cover
    • Compatible with both mechanical and electronic speedometer pickups
    • 1.125 in. shaft diameter
    • 6.71 in. shaft length
    • Gear ratios:
      • 1st: 2.87
      • 2nd: 1.89
      • 3rd: 1.28
      • 4th: 1.00
      • 5th: 0.64
    • A Performance Manual Transmission with Adjustable Shifter Positions

      Richmond Gear is proud to introduce the RGI-5 Manual Transmission, designed for those wanting performance and efficiency! This transmission provides the ability to change the shifter location for specific application fitment and delivers maximum tunnel clearance through its compact aluminum case. The RGI-5 is 600 ft.-lbs. of torque rated and achieves strong, positive shifts through a unique rail-shift internal design. Available with a GM or Ford main case bolt pattern and two different final gear ratios for lowering the RPM range for highway speeds.

    Part TypeManual Transmission
    Product LineRichmond Gear RGI-5 Manual Transmissions
    BrandRICHMOND GEAR
    Package Height13.5
    Package Width18.0
    Package Length34.0
    Weight114.0 PG
    Part CategoryPerformance Parts
    Fourth Gear Ratio1.00:1
    Fifth Gear Ratio0.64:1
    Number Of GearsFive
    Second Gear Ratio1.89:1
    QuantitySold individually
    First Gear Ratio2.87:1
    Manual Transmission Gear MaterialSteel
    Trans ModelGM
    Part FitmentSemi Universal
    Shifter IncludedYes
    Case MaterialAluminum
    Third Gear Ratio1.28:1
    Bellhousing IncludedNo
    Vendor Part NumberR502064A
    Package Qty1
    Package TypeEA
