Vehicle Info NeededRICHMOND GEARPART NUMBER: 836-R502082A

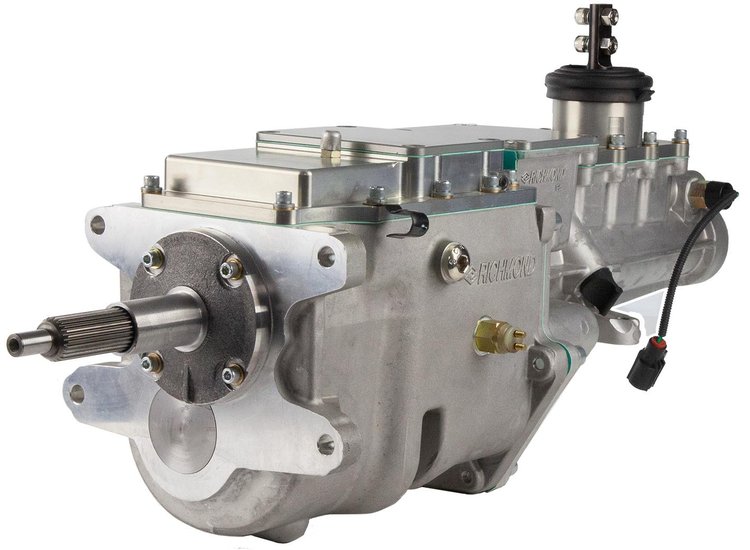

RGI-5 Manual Transmission GM Case Bolt Pattern, Dual-Position Short-Throw Shifter - 0.82 Overdrive (5th) Gear Ratio
$3,68829
Truck Freight
Ships on 09/18/2026
Lowest Price GuaranteeGM Bolt Pattern
RGI-5 Manual TransmissionGM Case Bolt Pattern 26-Spline Input Shaft 31-Spline Output Shaft Dual-Position Billet Aluminum Short-Throw Shifter 600 ft.-lbs. TQ Rated 0.82 Overdrive (5th) Gear Ratio Sold Individually
Dimensions for RGI-5 Manual Transmission with GM Bolt Pattern
R502082A Features:
- A compact aluminum main case for maximum transmission tunnel clearance
- Dual-position shifter location to suit application needs
- Three rail-shift internal design with steel shift forks for solid and positive shifting
- Billet aluminum top transmission cover
- Compatible with both mechanical and electronic speedometer pickups
- 1.125 in. shaft diameter
- 6.71 in. shaft length
- Gear ratios:
- 1st: 2.87
- 2nd: 1.89
- 3rd: 1.28
- 4th: 1.00
- 5th: 0.82
Part TypeManual Transmission
BrandRICHMOND GEAR
Package Height16.0
Package Width16.5
Package Length35.0
Weight118.0 PG
Part CategoryPerformance Parts
Fourth Gear Ratio1.00:1
Fifth Gear Ratio0.82:1
Number Of GearsFive
Second Gear Ratio1.89:1
QuantitySold individually
First Gear Ratio2.87:1
Manual Transmission Gear MaterialSteel
Trans ModelGM
Part FitmentSemi Universal
Shifter IncludedYes
Case MaterialAluminum
Third Gear Ratio1.28:1
Bellhousing IncludedNo
Vendor Part NumberR502082A
Package Qty1
Package TypeEA
