Breakdown of Included Items

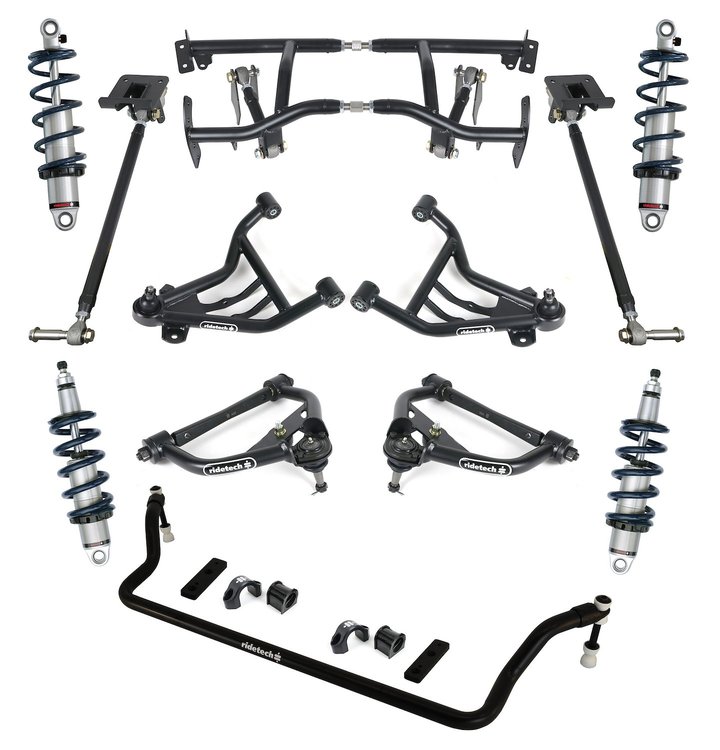

Ridetech 11170203 Complete Coil-Over Suspension System:

• Completely Upgrades the Existing Suspension
• Aggressive Lowered Stance
• Modern Drivability

Ridetech 11170203 Complete Coil-Over Suspension System Includes:

• HQ Series Front Coil-Overs 11173510
  • 24-Position Rebound Adjustment Accessible From Under Hood
  • Impact Forged Aluminum Body
  • Monotube Design
  • Compressed: 10.4 in.
  • Ride Height: 12.5 in.
  • Extended: 14 in.
  • Shocks: 3.6 in. Travel w/ 2.75 in. Length Stud, 1.834 in. Pistons w/Heavy Duty 5/8 in. Shafts
  • Springs: 8 in. / 700 lb.
• HQ Series Rear Coil-Overs 11176510
  • 24-Position Rebound Adjustment
  • Impact Forged Aluminum Body
  • Monotube Design
  • Shocks: 5/8 in. I.D. Bearing, 5.2 in. Stroke, 1.834 in. Pistons w/Heavy Duty 5/8 in. Shafts
  • Springs: 12 in. / 200 lb.
• Front Upper Control Arms for Stock Spindles 11173699
  • Self-lubricating Delrin Bushings
  • Increased Caster
  • Maximum Wheel Clearance and Turning Radius
• Front Lower Control Arms for Stock Spindles 11172899
  • Compatible with Coil-Overs or Shockwaves
  • Re-Centered Balljoint Camber Travel
  • Won't Bind During Suspension Movement
  • Maximum Wheel Clearance and Turning Radius
• Bolt-On Rear 4-Link System 11177187
  • Adjustable Rear Cradle Assembly
  • 1 in. to 3 in. Adjustable Lowered Stance
  • Eliminates Wheel Hop

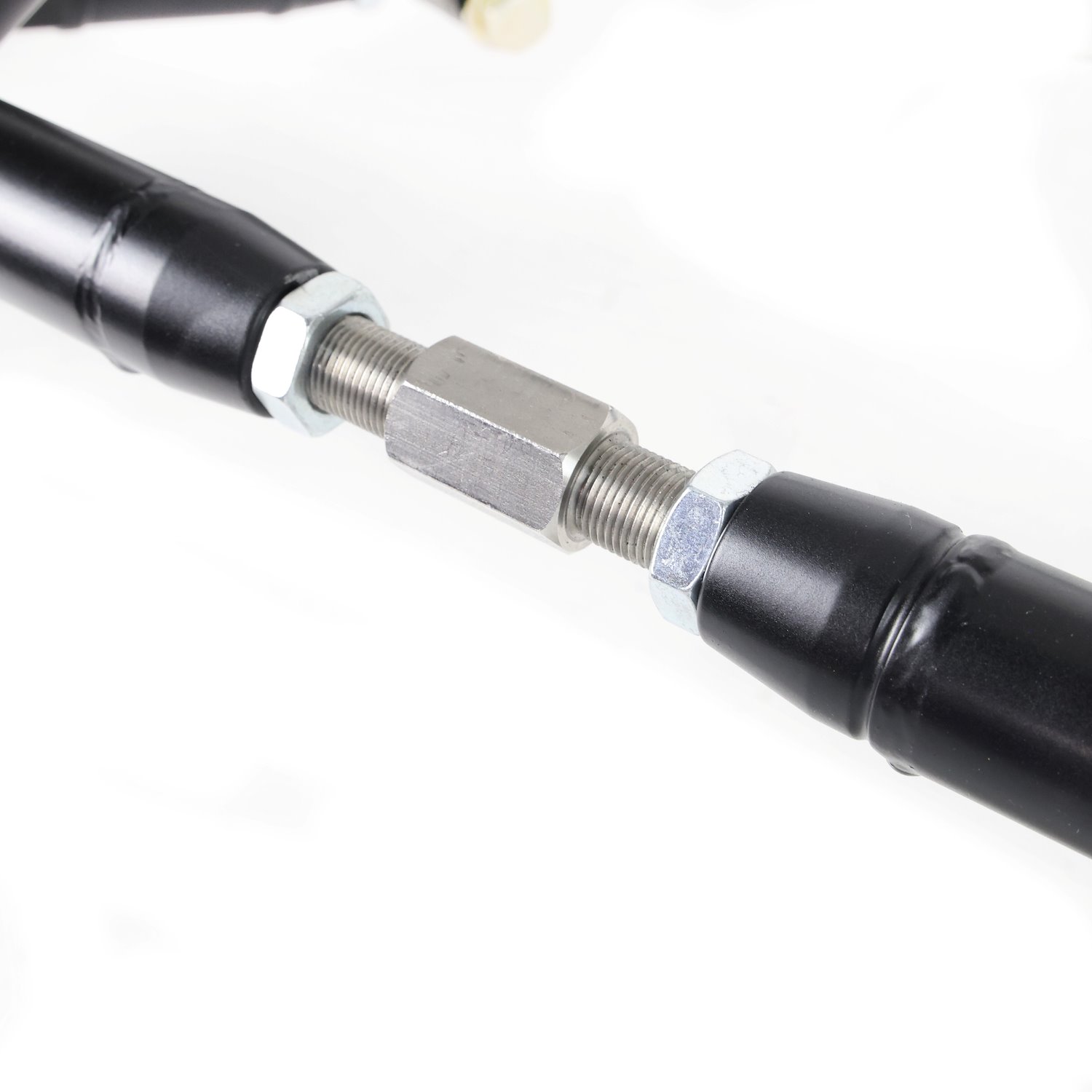

  • Double Adjustable Upper and Lower 4-Link Bars
  • R-Joint Rod Ends
  • Adjustable Anti-Squat
  • Optimized Roll Center
• Front MuscleBar Sway Bar 11179120
  • Rate: 430 lbs.
  • Diameter: 1 3/8 in. (1.375 in.)
  • Wall Thickness: 1/4 in. (.250 in.)
  • Delrin Lined Frame Mount Bushings
  • Spherical End Links With Barrel Lock Nuts
