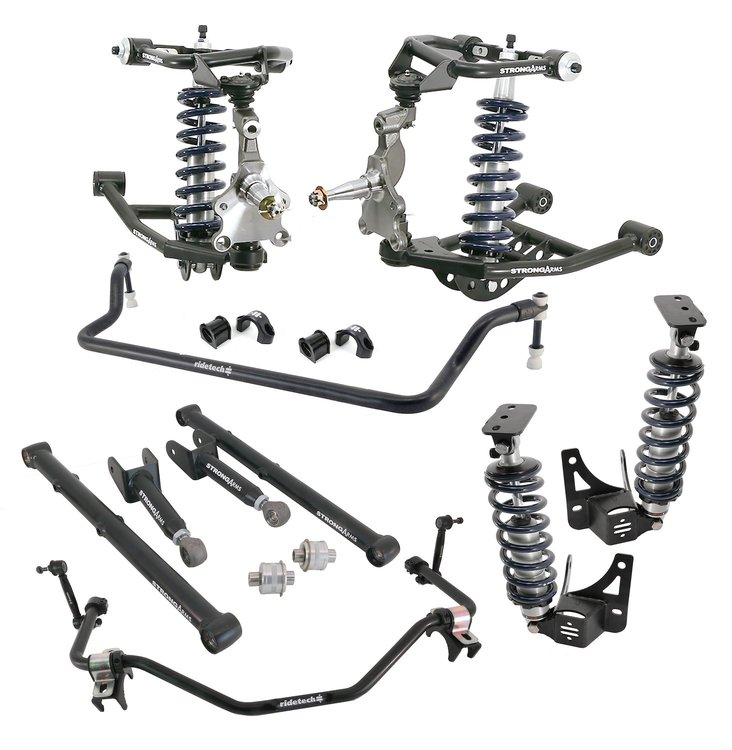

1964-1967 GM A-Body Package Includes:

• HQ Series Single-Adjustable Coil-Over Shocks
• High Tensile Steel 2-1/2 inch Diameter Coil Springs
• Front Upper & Lower StrongArm Control Arms w/Tall 2 inch drop Spindles
• Front & Rear MuscleBar Sway Bar with PosiLinks End Links
• Rear StrongArms

Note: 1964-1967 GM A-Body platform consists of Chevelle, Cutlass, El Camino, F85, GTO, LeMans, Malibu, Skylark, Special, Sportwagon, Tempest, and Vista Cruiser.

Individual System Overview:

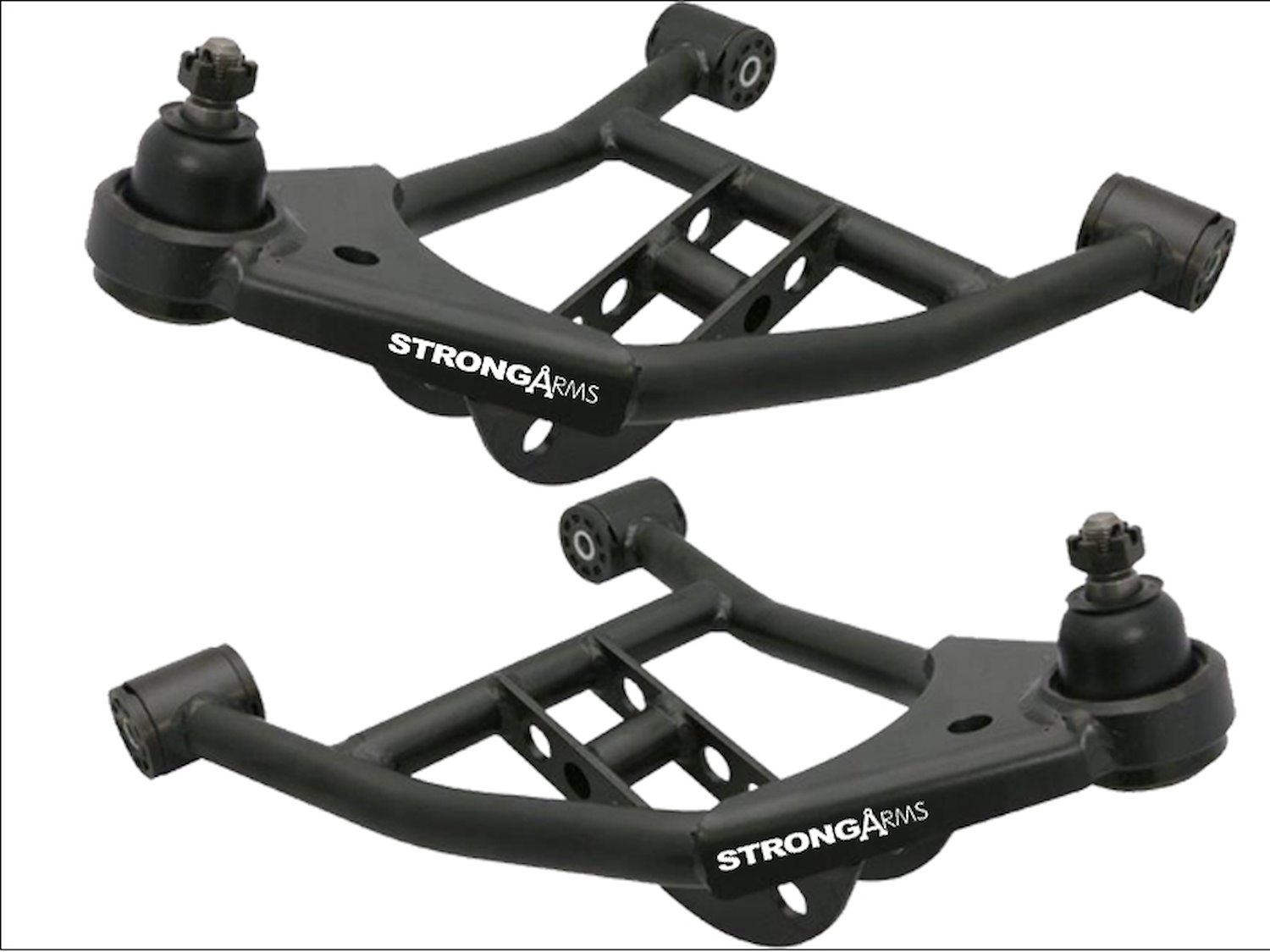

• Front Upper StrongArms feature corrected balljoint angles for taller spindles allowing additional caster, steering feel, and high-speed stability. Offset slugs are available for an additional caster. The use of injection molded Delrin bushings reduces deflection and stiction.

• Front Lower StrongArms feature a double sheer lower mount for added strength, while the lower shock mount has been lowered for an increase in suspension travel. Lower ball joints are moved forward to increase caster while also keeping the wheel centered in the wheel well. The use of injection molded Delrin bushings reduces deflection and stiction.

• RideTech Tall Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” pin drop which allows for the use of longer shocks creating more suspension travel.

• HQ Series Coil-Overs feature a monotube design with an impact forged aluminum body providing excellent ride quality and handling. Ride and handling can be fine-tuned with the rebound adjustment knob located at the top of the shock.

• Front MuscleBar is of a splined design to help reduce body roll and creates additional clearance for wider tires. The use of Ridetech exclusive PosiLink end links provides immediate engagement from the StrongArms to the chassis.

• Rear StrongArms provide added strength and help get the power to the ground without flexing. A Kevlar line Heim end is used in the upper bar for relieving roll bind.
