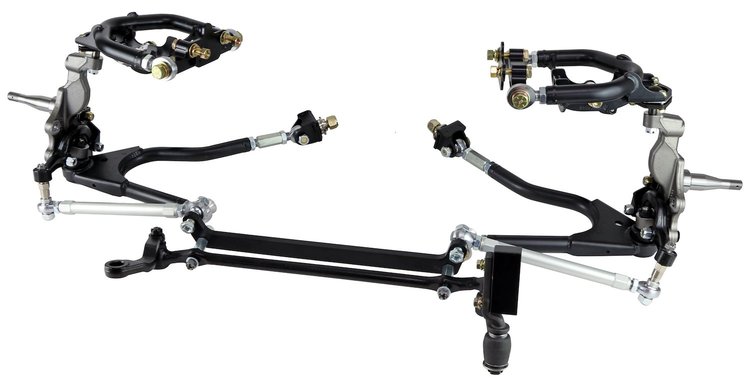

RideTech 12289599

Breakdown of Included Items

Features:

• The spindles are taller to improve the camber gain and a raised spindle pin lowers the vehicle by 2 in. (compatible with 1967-1969 Chevy Camaro brake systems)
• The steering arms reduce the bump steer to less than 1/16 (.0625) in. and allows clearance for up to a 10 in. wide wheel with a 5.750 in. backspacing
• Pitman arm with a 1 in. steering box sector shaft
• The tie-rod assemblies integrate with the steering arms and center link to provide a true bolt-on steering system
• The idler arm and mount is compatible with manual steering and can be adapted to use a Borgeson power steering system
• 0 to 7-degrees caster adjustment
• The solid front sway bar is rated to 608 lbs/in.

Notes:

• A mini-starter is required to clear the Tru-Turn Draglink Adapter (not included)
• If equipped with 225/40-R18 tires, the standard ride height is 22.750 in. ground to the fender lip
