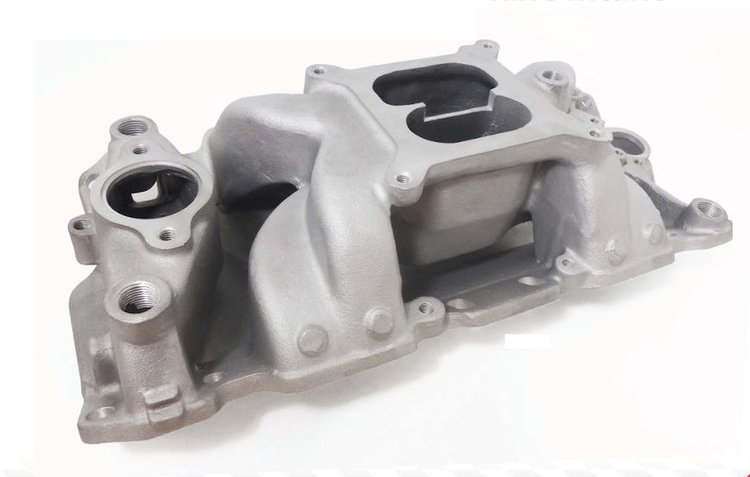

Intake Manifold
• 1955-1995 SBC “Cool Gap” Style – Satin



  RPC R1110 Features:

  Our “Cool Gap” design allows air to flow under the plenum and runners decreasing intake air temperatures caused by engine heat soak for better fuel atomization increasing horsepower and efficiency. The carb flange accepts most non-EGR 4-bbl square bore carburetors. Works with standard or straight down intake manifold mounting bolts. Made out of high quality cast aluminum and available in satin and polished finishes.

• Designed For 23° Cylinder Heads
• Dual Plane
• Square Bore (4150/4160 Carburetors)
• Cool Gap Design
• Port Dimensions: 2.020″ x 1.185″
• Est. Runner Length: 5.00″ (Shortest) x 6.250″ (Longest)
• 1/2″ NPT Water Ports (4)
• Nitrous Bosses Cast On Intake Runners
• Weight: 19 lbs
• Dimensions: 22 × 12 × 7 in
• Finish: Satin
• Material: Aluminum
• Engine: Small Block Chevy
• Intake Style: Cool Gap
• RPM Range: 1,500-6,500
• Port Shape: Rectangle
• Carburetor Quantity: Single 4-Barrel
• Carburetor Style: Square Bore
• Gaskets Included: No
• Mounting Hardware Included: No
• EGR: No
• Fittings Included: No
• Quantity: 1

Important Notes:

• Will not fit under stock hood on Corvettes
• Intake manifold gaskets, mounting hardware, fittings, and water neck sold separately.

Recommended parts:

• Intake Manifold Bolt Kit: R7531S
• Water Neck: Small Block Chevy

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
