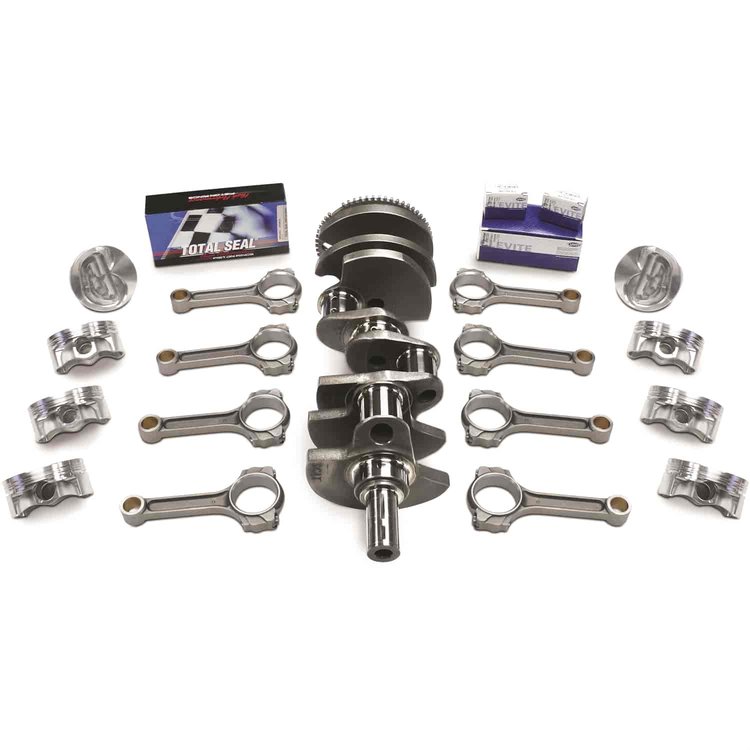

Competition Rotating Assembly Kit [GM LS Series 408 ci]
InfoVehicle Info Needed
SCATPART NUMBER: 942-1-43808BI

Competition Rotating Assembly Kit [GM LS Series 408 ci]

$2,59999
ShippingShips on 02/09/2027
Lowest PriceLowest Price Guarantee

Items You Need

Engine Stand [1000 lb. Capacity]

JEGS

Engine Stand [1000 lb. Capacity]

Part Number : 555-80040
$5999$109.99
You Save$50.00
Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Heavy-Duty Piston Installation Tool [Nylon Composite, White]

PROFORM

Heavy-Duty Piston Installation Tool [Nylon Composite, White]

Part Number : 778-67571
$5174$68.99
You Save$17.25

58 Tooth Reluctor
Rotating Assembly Competition Kit
  • GM LS Series 408 ci
  • 58-Tooth Reluctor
  • 4.030 in. Bore Mahle Forged Flat Top Pistons
  • 4.000 in. Stroke Forged Crankshaft
  • 6.125 in. Length Forged H-Beam Rods
  • Rated for 1,000 HP
  • Balanced

    Crankshaft

    • 4340 forged street crank
    • Shot peened, heat treated, precision ground, ion-nitrided
    • Throws lightened
    • Lightening holes in all rod journals
    • Large radius on all journals
    • Gun drilled mains
    • Straight shot and chamfered oil holes

    Connecting Rods

    • 4340 forged H-beam
    • Bushed wrist pin
    • 7/16 in. ARP 8740 cap screws

    Pistons

    • Mahle
    • 2618 forged aluminum
    • Flat top -4 cc volume
    • Compression ratio: 62 cc - 12.2 ; 65 cc - 11.8 ; 71 cc - 11.0
    • Coated
    • Low drag rings w/ductile iron top ring

    Bearings

    • H-Series Main and Rod bearings
    • Racing Performance & Durability!

      Scat Competition Rotating Assemblies for GM's popular LS Series engines feature matched components that high-performance race engines that produce up to a staggering 1,000 horsepower. These kits were put together using a forged crankshaft, forged H-beam connecting rods, premium forged aluminum Mahle pistons, Clevite H-Series bearings, and Hastings steel top rings to make for one durable package. When you need to put together the ultimate short-block for race use, look no further than a Scat Competition Rotating Assembly Kit.

    Part TypeEngine Rotating Assembly Kit
    Product LineScat GM LS Series Competition Rotating Assemblies
    BrandSCAT
    Package Height14.0
    Package Width19.0
    Package Length26.0
    Weight86.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number1-43808BI
    Package Qty1
    Package TypeEA
