Vehicle Info NeededSCATPART NUMBER: 942-1-47737

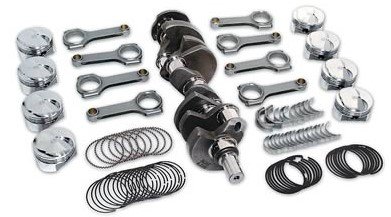

Ford FE 390 Block Unbalanced 482 ci. Competition Rotating Assembly w/4.250 in. Stroke Crank, 6.700 in. Rods, Flat-Top Pistons
$2,83686$2986.17You Save$149.31
Ships on 09/28/2026
Lowest Price GuaranteeFord FE
Ford FE 390 Block Forged Steel Competition Rotating Assembly482 ci. 4.250 in. Forged Steel Crankshaft (std. weight) 6.700 in. Length Forged H-Beam Rods Forged Flat-Top Pistons (-7 cc) UnBalanced 12.9:1 Comp Ratio w/72 cc Heads
Scat 1-47737 Ford FE 390 Block Forged Steel Competition Rotating Assembly:
- 482 ci. From Ford 390 FE Block
- 4.250 in. Stroke Forged 4340 Steel Standard Weight Crankshaft
- 6.700 in. Length Forged 4340 H-Beam Full Floating Connecting Rods
- Mahle 4.250 in. Bore Forged Aluminum Flat-Top Pistons w/-7 cc Piston Dome Volume
- Unbalanced Assembly
- Also Includes:
- Std. Main Bearings
- Std. Rod Bearings
- Piston Wrist Pins and Retaining Clips
- Piston Rings
Big Cubic Inch and Big Power from Your Ford 390 Engine Block
Scats Competition rotating assemblies for the Ford FE 390 block will let you build a reliable large cubic inch engine.
Part TypeEngine Rotating Assembly Kit
Product LineScat Competition Rotating Assemblies for Ford FE 390 Blocks
BrandSCAT
Package Height14.0
Package Width19.0
Package Length26.0
Weight90.0 PG
Part CategoryPerformance Parts
Crankshaft MaterialForged 4340 steel
Connecting Rod MaterialForged 4340
Harmonic Balancer IncludedNo
Wrist Pin StyleFull Floating
QuantitySold individually
Flexplate IncludedNo
Connecting Rod Beam StyleH-beam
Engine Make/SizeFord FE
Piston StyleFlat top, with two valve reliefs
Main Bearings IncludedYes
Flywheel IncludedNo
Rod Bearings IncludedYes
Piston Head Volume (Cc)7
Rear Main Seal Style2-piece
BalancedNo
Piston MaterialForged aluminum
Part FitmentSemi Universal
Piston Rings IncludedYes
Vendor Part Number1-47737
Package Qty1
Package TypeEA
